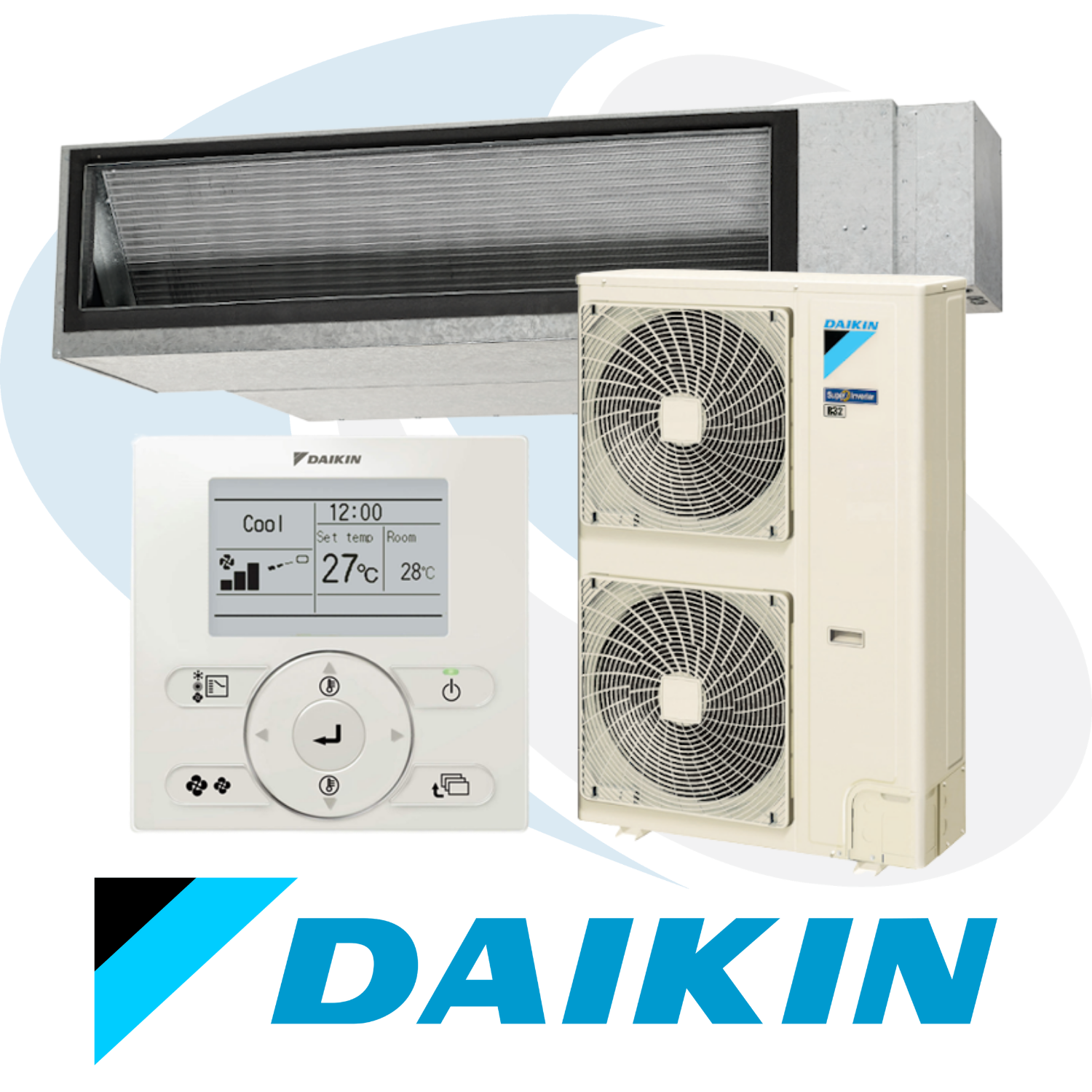

12KW DAIKIN - FULLY INSTALLED DUCTED SYSTEM
*Terms & Conditions Apply
 |
 5 Year Warranty Daikin's 5-year parts and labour warranty applies to split, multi split and ducted air conditioners purchased and installed in homes across Australia |
Our new indoor heat exchangers have been designed to deliver maximum capacity output in a compact casing size. Through the use of cutting edge technologies, our indoor heat exchangers utilise Ø5mm copper pipes to ensure heat is removed from your home efficiently.
Designed for the harsh Australian summer. The indoor unit fail safe logic regulates the fan speed on start-up when roof temperatures are at an extreme for enhanced reliability.
Daikin indoor units are equipped with a high efficiency DC fan motor. By utilising high power permanent magnets instead of the induced magnetism of conventional AC motors, Daikin’s DC motor can deliver significantly higher motor efficiency.
Daikin’s ducted units are fitted with light weight single injection moulded Sirocco Fans. These fans feature an aerodynamic fan blade design which reduces turbulence for a more efficient and quieter airflow delivery.
It's the unique features of Daikin products that makes us the world leader.
Achieved through the use of a DC Fan motor, cross-pass heat exchanger and increased outdoor coil passes.
Low profile height of ≤360mm to fit comfortably into the tight roof space of a modern home.
Models up to 19.5kW are encased in a space saving side discharge outdoor unit allowing for flexible placement.
Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.
Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping (5.0-15.5kW Models).
Indoor units are specifically designed and manufactured to Australian standards to withstand the harsher summer climate.
*Terms & Conditions:
Acer Services Conditioning pricing represents “Pricing From” as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Ducted Air Conditioner Installation
| Single Phase | |||
| INDOOR UNIT | FDYAN125AV1 | ||
| OUTDOOR UNIT | RZA125CV1 | ||
| Rated Capacity | Cool (kW) | 12.5 | |
| Heat (kW) | 15.0 | ||
| Capacity Range | Cool (kW) | 4.0-14.0 | |
| Heat (kW) | 4.1-16.0 | ||
| Power Input (Rated) | Cool (kW) | 3.94 | |
| Heat (kW) | 4.00 | ||
| E.E.R/C.O.P | C/H | 3.17/3.75 | |
| TCSPF (Residential) | Hot/Average/Cold | 4.26/3.91/4.02 | |
| HSPF (Residential) | Hot/Average/Cold | 4.31/3.31/2.77 | |
| Airflow Rate (Nominal/Max) | l/s | 755/840 | |
| Indoor Sound Level (H) @ 1.5m | dBA (C/H) | 44.2/45.5 | |
| Piping Length | m | 50 | |
| Indoor Fan Speeds | H/M/L | ||
| Dimensions (HxWxD) | Indoor (mm) | 360x1520x935 | |
| Outdoor (mm) | 990x940x320 | ||
| Weight | Indoor (kg) | 55 | |
| Outdoor (kg) | 78 | ||
| Power Supply | V/Hz | 1 Phase, 220-240V, 50Hz | |
| Compressor Type | Hermetically Sealed Swing Type | ||
| Refrigerant | R32 | ||
| Pipe Sizes | Liquid (mm) | 9.5 (Flare) | |
| Gas (mm) | 15.9 (Flare) | ||
| Drain (mm) | ID 25 / OD 32 | ||
| Supply Air Opening | mm (HxW, Flange) | 245x1152 | |
| Return Air Opening | mm | 2x400 (Oval) | |
| Outdoor Operating Range | Cool (°CDB) | -5 to 46 | |
| Heat (°CWB) | -15 to 16 | ||
| EPA Sound Power Level | dBA | 72 | |
| Outdoor Sound Level (H) @ 1m | Pressure dBA (C/H) | 53/56 | |
| SKU | DaikinDuctedSystem_12.5kw |
| Brand | Daikin |
| Ducted System | 12.5 Kw |
5-Year Warranty
The Daikin '5-Year Parts and Labour' warranty applies to all Daikin split, multi-split and ducted air conditioners professionally installed in domestic premises in Australia, so when you choose Daikin, you do so with the confidence of knowing you have many years of worry-free comfort ahead.
Along with our domestic unit warranty, Daikin also provides warranties for our commercial units and air purifier product range. Regardless of your needs, we are committed to ensuring you are comfortable and confident in your Daikin choice and know that in the long-term we will be there to provide professional assistance across our entire product range.
12KW DAIKIN - FULLY INSTALLED DUCTED SYSTEM
*Terms & Conditions Apply
|
|
5 Year Warranty Daikin's 5-year parts and labour warranty applies to split, multi split and ducted air conditioners purchased and installed in homes across Australia |
Our new indoor heat exchangers have been designed to deliver maximum capacity output in a compact casing size. Through the use of cutting edge technologies, our indoor heat exchangers utilise Ø5mm copper pipes to ensure heat is removed from your home efficiently.
Designed for the harsh Australian summer. The indoor unit fail safe logic regulates the fan speed on start-up when roof temperatures are at an extreme for enhanced reliability.
Daikin indoor units are equipped with a high efficiency DC fan motor. By utilising high power permanent magnets instead of the induced magnetism of conventional AC motors, Daikin’s DC motor can deliver significantly higher motor efficiency.
Daikin’s ducted units are fitted with light weight single injection moulded Sirocco Fans. These fans feature an aerodynamic fan blade design which reduces turbulence for a more efficient and quieter airflow delivery.
5-Year Warranty
The Daikin '5-Year Parts and Labour' warranty applies to all Daikin split, multi-split and ducted air conditioners professionally installed in domestic premises in Australia, so when you choose Daikin, you do so with the confidence of knowing you have many years of worry-free comfort ahead.
Along with our domestic unit warranty, Daikin also provides warranties for our commercial units and air purifier product range. Regardless of your needs, we are committed to ensuring you are comfortable and confident in your Daikin choice and know that in the long-term we will be there to provide professional assistance across our entire product range.
It's the unique features of Daikin products that makes us the world leader.
Achieved through the use of a DC Fan motor, cross-pass heat exchanger and increased outdoor coil passes.
Low profile height of ≤360mm to fit comfortably into the tight roof space of a modern home.
Models up to 19.5kW are encased in a space saving side discharge outdoor unit allowing for flexible placement.
Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.
Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping (5.0-15.5kW Models).
Indoor units are specifically designed and manufactured to Australian standards to withstand the harsher summer climate.
| Single Phase | |||
| INDOOR UNIT | FDYAN125AV1 | ||
| OUTDOOR UNIT | RZA125CV1 | ||
| Rated Capacity | Cool (kW) | 12.5 | |
| Heat (kW) | 15.0 | ||
| Capacity Range | Cool (kW) | 4.0-14.0 | |
| Heat (kW) | 4.1-16.0 | ||
| Power Input (Rated) | Cool (kW) | 3.94 | |
| Heat (kW) | 4.00 | ||
| E.E.R/C.O.P | C/H | 3.17/3.75 | |
| TCSPF (Residential) | Hot/Average/Cold | 4.26/3.91/4.02 | |
| HSPF (Residential) | Hot/Average/Cold | 4.31/3.31/2.77 | |
| Airflow Rate (Nominal/Max) | l/s | 755/840 | |
| Indoor Sound Level (H) @ 1.5m | dBA (C/H) | 44.2/45.5 | |
| Piping Length | m | 50 | |
| Indoor Fan Speeds | H/M/L | ||
| Dimensions (HxWxD) | Indoor (mm) | 360x1520x935 | |
| Outdoor (mm) | 990x940x320 | ||
| Weight | Indoor (kg) | 55 | |
| Outdoor (kg) | 78 | ||
| Power Supply | V/Hz | 1 Phase, 220-240V, 50Hz | |
| Compressor Type | Hermetically Sealed Swing Type | ||
| Refrigerant | R32 | ||
| Pipe Sizes | Liquid (mm) | 9.5 (Flare) | |
| Gas (mm) | 15.9 (Flare) | ||
| Drain (mm) | ID 25 / OD 32 | ||
| Supply Air Opening | mm (HxW, Flange) | 245x1152 | |
| Return Air Opening | mm | 2x400 (Oval) | |
| Outdoor Operating Range | Cool (°CDB) | -5 to 46 | |
| Heat (°CWB) | -15 to 16 | ||
| EPA Sound Power Level | dBA | 72 | |
| Outdoor Sound Level (H) @ 1m | Pressure dBA (C/H) | 53/56 | |
| SKU | DaikinDuctedSystem_12.5kw |
| Brand | Daikin |
*Terms & Conditions:
Acer Services Conditioning pricing represents “Pricing From” as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Ducted Air Conditioner Installation
