12.5KW DAIKIN & iZONE - FULLY INSTALLED DUCTED SYSTEM
Superior Energy Efficiency - Leading Electronic ‘Constant Zone’ Bypass Technology
*Terms & Conditions Apply
.png) |
 5 Year Warranty Daikin's 5-year parts and labour warranty applies to split, multi split and ducted air conditioners purchased and installed in homes across Australia |
Our new indoor heat exchangers have been designed to deliver maximum capacity output in a compact casing size. Through the use of cutting edge technologies, our indoor heat exchangers utilise Ø5mm copper pipes to ensure heat is removed from your home efficiently.
Designed for the harsh Australian summer. The indoor unit fail safe logic regulates the fan speed on start-up when roof temperatures are at an extreme for enhanced reliability.
Daikin indoor units are equipped with a high efficiency DC fan motor. By utilising high power permanent magnets instead of the induced magnetism of conventional AC motors, Daikin’s DC motor can deliver significantly higher motor efficiency.
Daikin’s ducted units are fitted with light weight single injection moulded Sirocco Fans. These fans feature an aerodynamic fan blade design which reduces turbulence for a more efficient and quieter airflow delivery.
It's the unique features of Daikin products that makes us the world leader.
Achieved through the use of a DC Fan motor, cross-pass heat exchanger and increased outdoor coil passes.
Low profile height of ≤360mm to fit comfortably into the tight roof space of a modern home.
Models up to 19.5kW are encased in a space saving side discharge outdoor unit allowing for flexible placement.
Reduces the outdoor noise levels during sleeping hours and automatically resumes normal operations in the morning.
Provides a cost effective and convenient upgrade from an existing R22 ducted system whilst retaining the field piping (5.0-15.5kW Models).
Indoor units are specifically designed and manufactured to Australian standards to withstand the harsher summer climate.

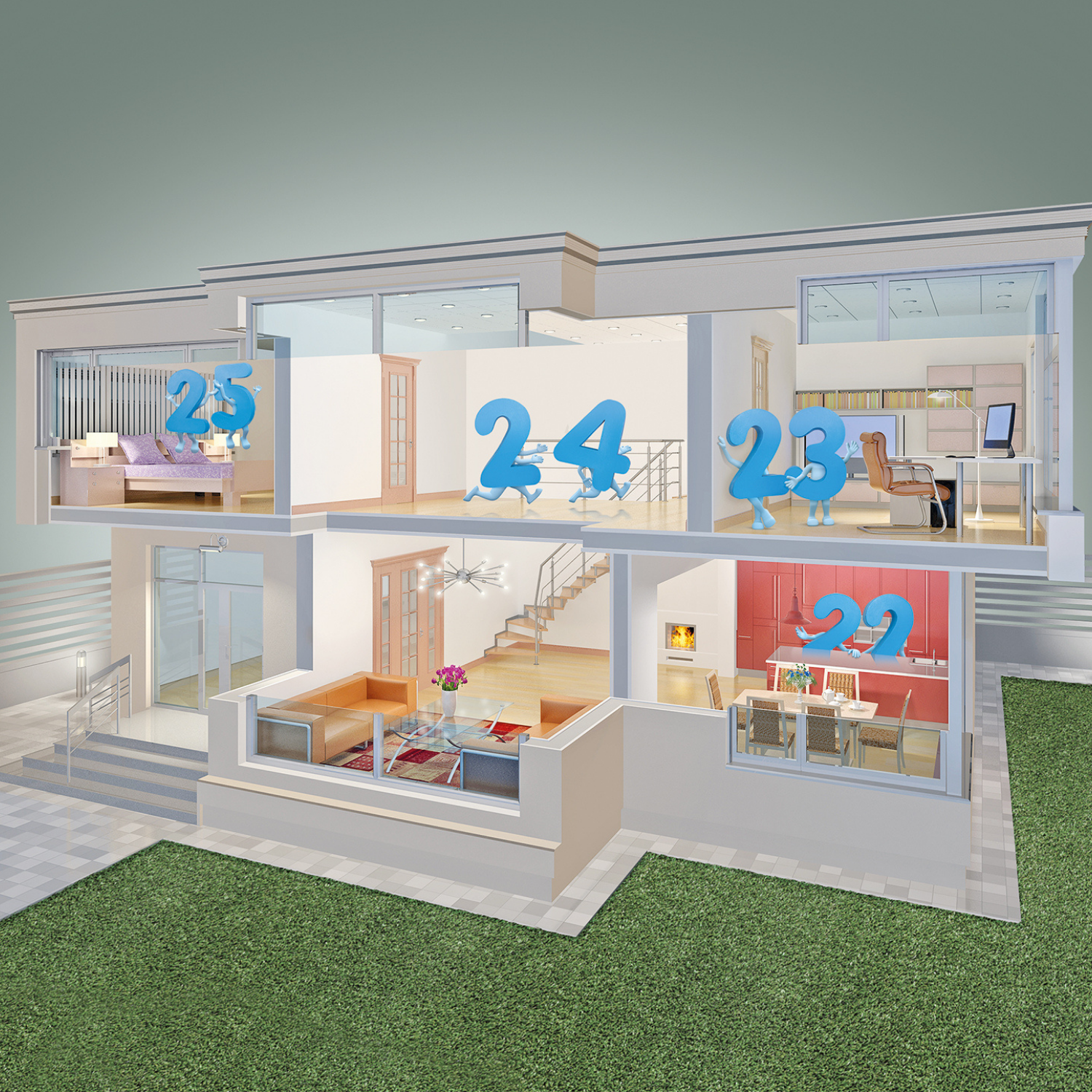

iZone gives you total temperature control of each room or zone individually. iZone can operate up to 14 zones on any one system and every room or zone can be at the temperature you want, all the time.
By providing cooling and heating only when and where you need it, iZone climate control systems maximise energy efficiency while reducing running costs.
iZone climate control systems are fully scalable, which means you can afford it on almost any budget.
The iZone controller can be mounted horizontally or vertically on the wall. It also comes in various colours to match the style of your home.
Comes in:
*Terms & Conditions:
Acer Services Conditioning pricing represents “Pricing From” as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Ducted Air Conditioner Installation
| Single Phase | |||
| INDOOR UNIT | FDYAN125AV1 | ||
| OUTDOOR UNIT | RZA125CV1 | ||
| Rated Capacity | Cool (kW) | 12.5 | |
| Heat (kW) | 15.0 | ||
| Capacity Range | Cool (kW) | 4.0-14.0 | |
| Heat (kW) | 4.1-16.0 | ||
| Power Input (Rated) | Cool (kW) | 3.94 | |
| Heat (kW) | 4.00 | ||
| E.E.R/C.O.P | C/H | 3.17/3.75 | |
| TCSPF (Residential) | Hot/Average/Cold | 4.26/3.91/4.02 | |
| HSPF (Residential) | Hot/Average/Cold | 4.31/3.31/2.77 | |
| Airflow Rate (Nominal/Max) | l/s | 755/840 | |
| Indoor Sound Level (H) @ 1.5m | dBA (C/H) | 44.2/45.5 | |
| Piping Length | m | 50 | |
| Indoor Fan Speeds | H/M/L | ||
| Dimensions (HxWxD) | Indoor (mm) | 360x1520x935 | |
| Outdoor (mm) | 990x940x320 | ||
| Weight | Indoor (kg) | 55 | |
| Outdoor (kg) | 78 | ||
| Power Supply | V/Hz | 1 Phase, 220-240V, 50Hz | |
| Compressor Type | Hermetically Sealed Swing Type | ||
| Refrigerant | R32 | ||
| Pipe Sizes | Liquid (mm) | 9.5 (Flare) | |
| Gas (mm) | 15.9 (Flare) | ||
| Drain (mm) | ID 25 / OD 32 | ||
| Supply Air Opening | mm (HxW, Flange) | 245x1152 | |
| Return Air Opening | mm | 2x400 (Oval) | |
| Outdoor Operating Range | Cool (°CDB) | -5 to 46 | |
| Heat (°CWB) | -15 to 16 | ||
| EPA Sound Power Level | dBA | 72 | |
| Outdoor Sound Level (H) @ 1m | Pressure dBA (C/H) | 53/56 | |
Smartphone, Tablet
• You will need a smartphone or tablet. The following
platforms are supported: Apple & Android.
System Requirements
iOS SOFTWARE REQUIREMENTS
• Compatible with iPhone, iPod touch, and iPad. iOS 6.0
and higher.
ANDROID SOFTWARE REQUIREMENTS
• Requires Android: 2.1 and higher.
WiFi modem or network switch
• You will also need a compatible WiFi modem or network
switch with a spare RJ 45 access port. Some WiFi
modems, firewalls and security settings are not
compatible with the iZone bridge and will need to be
changed or replaced to enable the iZone app to run.
Download the iZone App
• You will need an account with the manufacturer of your
phone to enable you to download Apps from their
respective store.
• Apple—Apple App Store
• Android—Google Play Store
• Login to the respective store.
• To search for the iZone App type “iZone Controller” into
the store’s search menu.
• Select iZone Controller and download the iZone App
| SKU | DaikinDucted_iZONE_12.5kw |
| Brand | Daikin |
| Ducted System | 12.5 Kw |
5-Year Warranty
