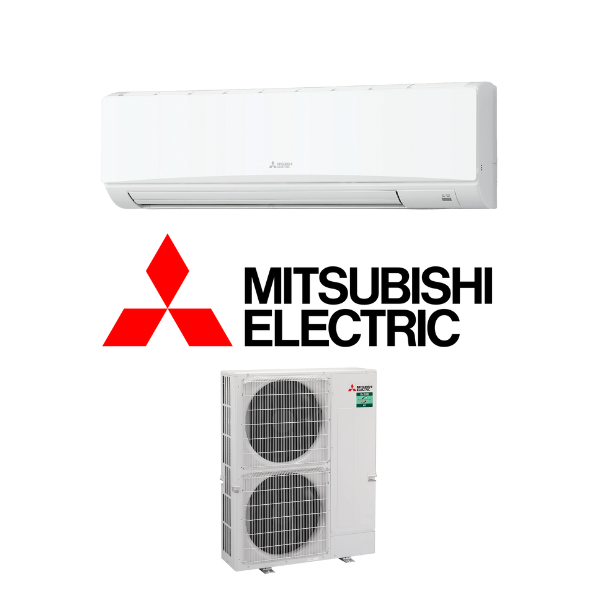

MITSUBISHI ELECTRIC 10.0KW PKAM100KAL2R1YKIT - FULLY INSTALLED 3 PHASE WALL SPLIT SYSTEM (OPTIONAL WI-FI ADAPTOR)
For a tailored quote based on your specific installation needs, contact our Sales Team today!
Features:
*Terms & Conditions:
Acer Services Conditioning pricing represents "Pricing From" as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Wall Mounted Air Conditioner Installation
| System Name | PKAM71KAL2R1KIT | PKAM100KAL2R1VKIT | PKAM100KAL2R1YKIT |
|---|---|---|---|

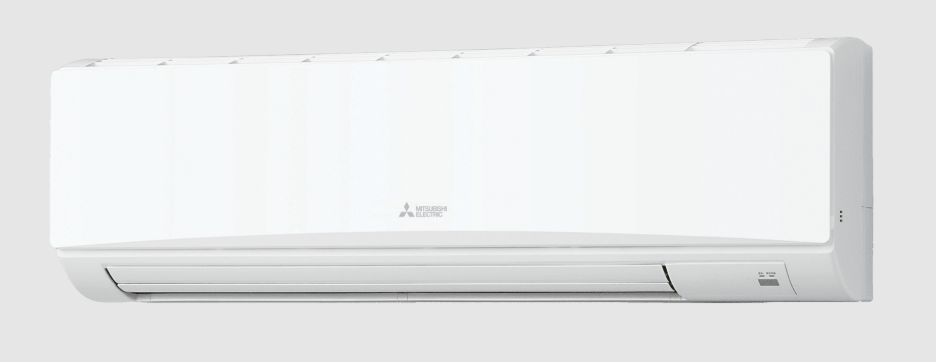

| Indoor Unit | PKA-M71KAL2R1.TH | PKA-M100KAL2R1.TH | PKA-M100KAL2R1.TH |

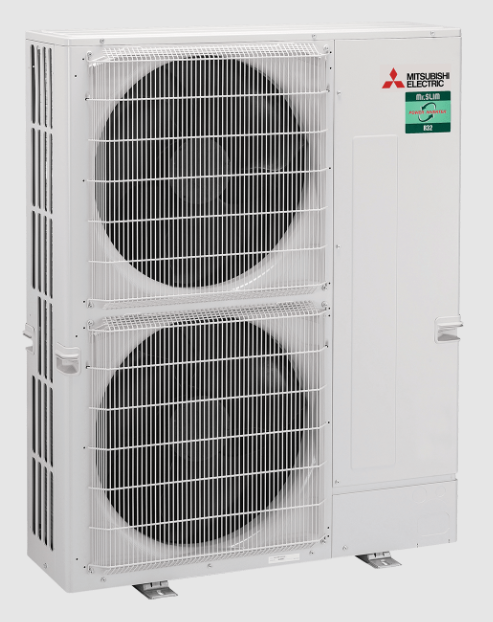

| Outdoor Unit | PUZ-ZM71VHA1-A | PUZ-ZM100VKA2-A.TH | PUZ-ZM100YKA3-A.TH |
| Power Supply | 1 Phase, 230V, 50Hz | 3 Phase, 400V, 50Hz | |
| Cooling Capacity (kW) | 7.1 | 10.0 | |
| Heating Capacity (kW) | 8.0 | 11.2 | |
| EER/COP | 3.81 / 3.77 | 3.55 / 3.61 | |
| Refrigerant Type | R32 | ||
| Max Pipe Length (m) | 50 | 75 | |
| Outdoor Operating Range (Cooling / Heating) | -15 ~ 52 / -20 ~ 21 | ||
| Indoor Dimensions (HxWxD) (mm) | 365 x 1170 x 295 | ||
| Outdoor Dimensions (HxWxD) (mm) | 943 x 950 x 330(+25) | 1338 x 1050 x 330(+40) | |
| Indoor Weight (kg) | 21 | ||
| Outdoor Weight (kg) | 70 | 113 | 114 |
| Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 | ||
| SKU | PKAM100KAL2R1YKIT-INS |
| Brand | Mitsubishi Electric |
| Shipping Weight | 159.0000kg |
| Colour | White |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Three Phase |
| WiFi | Optional |
| Unit Size | 6 - 10.9kW |
| Series | PKA-M |
| Type | Split |
| Cooling Capacity (kW) | 10 |
| Brand | Mitsubishi Electric |
| Indoor Weight | 21 |
| Outdoor Weight | 114 |
| Refrigerant | R32 |
| Indoor Size | 365x1170x295 |
| Outdoor Size | 1338x1050x330(+40) |
| Heating Capacity (kW) | 11.2 |
MITSUBISHI ELECTRIC 10.0KW PKAM100KAL2R1YKIT - FULLY INSTALLED 3 PHASE WALL SPLIT SYSTEM (OPTIONAL WI-FI ADAPTOR)
For a tailored quote based on your specific installation needs, contact our Sales Team today!
Features:
| System Name | PKAM71KAL2R1KIT | PKAM100KAL2R1VKIT | PKAM100KAL2R1YKIT |
|---|---|---|---|
| Indoor Unit | PKA-M71KAL2R1.TH | PKA-M100KAL2R1.TH | PKA-M100KAL2R1.TH |
| Outdoor Unit | PUZ-ZM71VHA1-A | PUZ-ZM100VKA2-A.TH | PUZ-ZM100YKA3-A.TH |
| Power Supply | 1 Phase, 230V, 50Hz | 3 Phase, 400V, 50Hz | |
| Cooling Capacity (kW) | 7.1 | 10.0 | |
| Heating Capacity (kW) | 8.0 | 11.2 | |
| EER/COP | 3.81 / 3.77 | 3.55 / 3.61 | |
| Refrigerant Type | R32 | ||
| Max Pipe Length (m) | 50 | 75 | |
| Outdoor Operating Range (Cooling / Heating) | -15 ~ 52 / -20 ~ 21 | ||
| Indoor Dimensions (HxWxD) (mm) | 365 x 1170 x 295 | ||
| Outdoor Dimensions (HxWxD) (mm) | 943 x 950 x 330(+25) | 1338 x 1050 x 330(+40) | |
| Indoor Weight (kg) | 21 | ||
| Outdoor Weight (kg) | 70 | 113 | 114 |
| Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 | ||
| SKU | PKAM100KAL2R1YKIT-INS |
| Brand | Mitsubishi Electric |
| Shipping Weight | 159.0000kg |
*Terms & Conditions:
Acer Services Conditioning pricing represents "Pricing From" as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Wall Mounted Air Conditioner Installation
