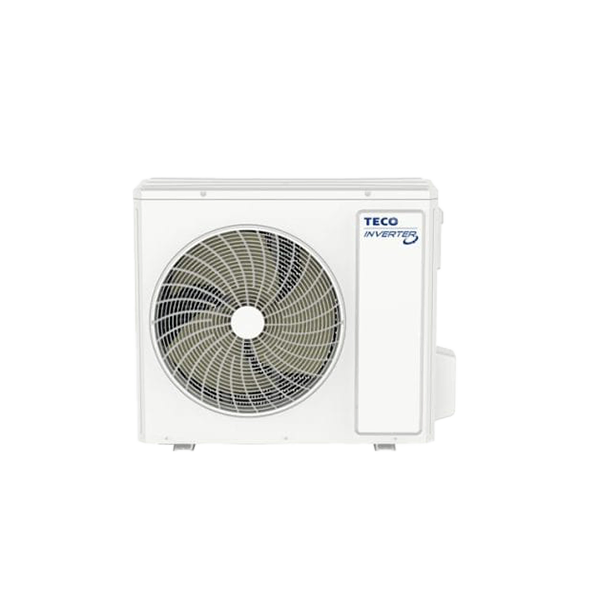

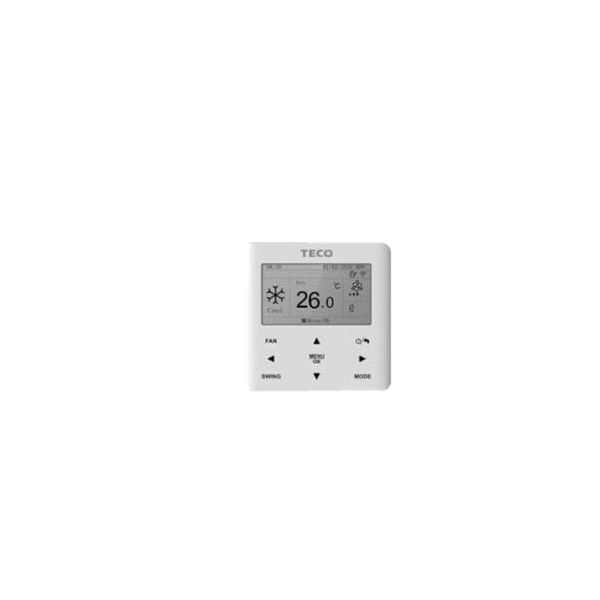

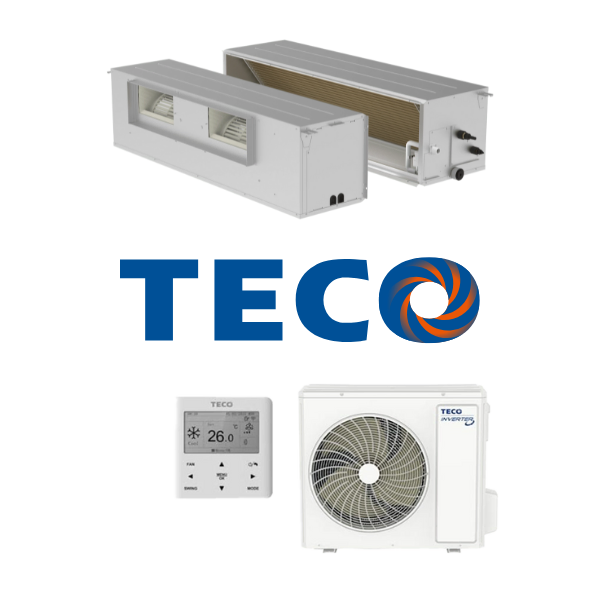

TECO TDS-TSO100HVWDG 10.0kW Single Phase Ducted Air Conditioner - Includes Outdoor Unit and Wired Wall Controller

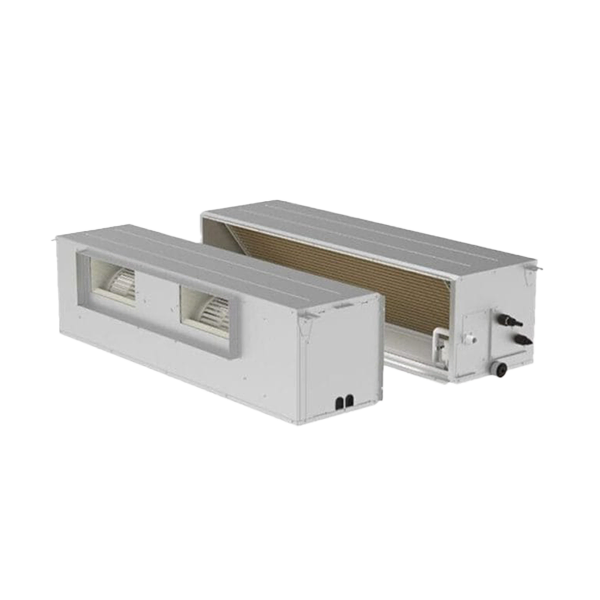

The TECO 10.0kW Ducted System offers powerful, energy-efficient climate control with a low profile indoor unit height of just 260mm, making it ideal for bulkheads and spaces with limited ceiling clearance. Designed for durability, it features a Blackfin-coated condenser coil in the outdoor unit and a Goldfin-coated evaporator coil in the indoor unit to enhance corrosion resistance and ensure long-term efficiency. With an integrated drain pump for flexible installation and built-in WiFi for remote control, convenience and user-friendly management are prioritised.
Features:
Acer Services pricing represents “Pricing From” as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Pricing is within 20km from our Mansfield QLD office. All other areas to be quoted.
Wall Split Air Conditioner Installation
Ducted Air Conditioner Installation
| System | TDS-TSO100HVWDG | TDS-TSO125HVSWDG | TDS-TSO140HVSWDG | TDS-TSO160HVSWDG | TDS-TSO170HDVM | |
|---|---|---|---|---|---|---|
| Indoor Unit | TDS100HVWDG | TDS125HVSWDG | TDS140HVSWDG | TDS160HVSWDG | TDS170HDVM | |
| Outdoor Unit | TSO100HVWDG | TSO125HVWDG | TSO140HVWDG | TSO160HVWDG | TSO170HVDM | |
| Power Supply | 1 Phase, 220-240V, 50Hz | |||||
| Cooling Capacity Rated/Min-Max | kW | 10.0 (3.0-11.7) | 12.5 (3.6-14.0) | 14.0 (4.2-16.0) | 16.0 (4.8-18.0) | 17.0 (6.8-19.5) |
| Heating Capacity Rated/Min-Max | 12.0 (3.6-13.5) | 14.0 (4.2-15.0) | 16.0 (4.8-17.0) | 18.0 (5.4-20.0) | 17.5 (7.0-21.0 | |
| AEER/ACOP | 3.7 / 4.0 | 3.4 / 3.8 | 3.5 / 3.8 | 3.3 / 3.8 | ||
| Cooling Star Rating (Hot/Avg/Cold) | 4 / 3.5 / 4 | 3.5 / 3 / 3 | 3.5 / 3 / 3.5 | - | ||
| Heating Star Rating (Hot/Avg/Cold) | 3 / 2.5 / 2 | 3.5 / 2.5 / 2 | 3 / 2.5 / 2 | 3.5 / 2.5 / 2 | - | |
| Cooling Current Input Range | A | 2.3 - 20.0 | 3.2 - 25.0 | 3.7 - 28.0 | 4.1 - 32.0 | - |
| Heating Current Input Range | 2.7 - 20.0 | 3.7 - 25.0 | 4.1 - 28.0 | 4.6 - 32.0 | - | |
| Standby Power Consumption | W | 4.0 | 5.1 | 12.5 | 9.8 | - |
| Indoor Airflow Volume P-Hi/H/M/L | m3/h | 2100 / 1900 / 1700 / 1400 | 2800 / 2500 / 2200 / 1800 | 3200 / 2800 / 2400 / 2000 | 3500 / 3100 / 2700 / 2300 | - / 3800 / 3200 / 2950 |
| Indoor Sound Pressure Level H/M/L | dBA | 42 / 41 / 40 | 42 / 40 / 39 | 45 / 43 / 41 | 50 / 48 / 46 | 49 / 46 / 42 |
| Outdoor Sound Pressure Level (H) | 58 | 59 | 60 | 62 | ||
| Outdoor Fan Quantity | 1 | 2 | - | |||
| Operation Range Cool/Heat | C | -15 to 52 / -15 to 24 | -15 to 50 / -15 to 24 | |||
| Refrigerant Type/Charge | kg | R32 / 2.2 | R32 / 2.4 | R32 / 2.8 | R32 / 3.3 | R410A / - |
| Connection Pipe Max Height | m | 30 | ||||
| Connection Pipe Max Length | 75 | 65 | ||||
| Pipe Sizes (Liquid/Gas) | mm | 9.52 / 15.88 | 9.52 / 19.0 | |||
| Indoor Unit Dimensions (HxWxD) | 260 x 1340 x 655 | 360 x 1350 x 720 | 440 x 1400 x 858 | |||
| Outdoor Unit Dimensions (HxWxD) | 820 x 940 x 370 | 1260 x 900 x 340 | 1333 x 952 x 415 | |||
| Indoor Net/Gross Weight | kg | 43 / 49 | 57 / 67 | 60 / 70 | 74 / 86 | |
| Outdoor Net/Gross Weight | 67 / 79 | 90 / 99 | 97 / 106 | 112 / 126 | ||
| SKU | TDS-TSO100HVWDG-INS |
| Brand | Teco |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Included |
| Unit Size | 6 - 10.9kW |
| Series | Mid Static |
| Type | Ducted |
| Outdoor Weight | 67 |
| Refrigerant | R32 |
| Indoor Size | 260x1340x655 |
| Outdoor Size | 820x940x370 |
| Control System | Standard |
| Heating Capacity (kW) | 12 |
| Indoor Weight | 43 |
| Brand | Teco |
| Zones | 2 |
| Outlets | 6 |
| Cooling Capacity (kW) | 10 |
TECO TDS-TSO100HVWDG 10.0kW Single Phase Ducted Air Conditioner - Includes Outdoor Unit and Wired Wall Controller
The TECO 10.0kW Ducted System offers powerful, energy-efficient climate control with a low profile indoor unit height of just 260mm, making it ideal for bulkheads and spaces with limited ceiling clearance. Designed for durability, it features a Blackfin-coated condenser coil in the outdoor unit and a Goldfin-coated evaporator coil in the indoor unit to enhance corrosion resistance and ensure long-term efficiency. With an integrated drain pump for flexible installation and built-in WiFi for remote control, convenience and user-friendly management are prioritised.
Features:
| System | TDS-TSO100HVWDG | TDS-TSO125HVSWDG | TDS-TSO140HVSWDG | TDS-TSO160HVSWDG | TDS-TSO170HDVM | |
|---|---|---|---|---|---|---|
| Indoor Unit | TDS100HVWDG | TDS125HVSWDG | TDS140HVSWDG | TDS160HVSWDG | TDS170HDVM | |
| Outdoor Unit | TSO100HVWDG | TSO125HVWDG | TSO140HVWDG | TSO160HVWDG | TSO170HVDM | |
| Power Supply | 1 Phase, 220-240V, 50Hz | |||||
| Cooling Capacity Rated/Min-Max | kW | 10.0 (3.0-11.7) | 12.5 (3.6-14.0) | 14.0 (4.2-16.0) | 16.0 (4.8-18.0) | 17.0 (6.8-19.5) |
| Heating Capacity Rated/Min-Max | 12.0 (3.6-13.5) | 14.0 (4.2-15.0) | 16.0 (4.8-17.0) | 18.0 (5.4-20.0) | 17.5 (7.0-21.0 | |
| AEER/ACOP | 3.7 / 4.0 | 3.4 / 3.8 | 3.5 / 3.8 | 3.3 / 3.8 | ||
| Cooling Star Rating (Hot/Avg/Cold) | 4 / 3.5 / 4 | 3.5 / 3 / 3 | 3.5 / 3 / 3.5 | - | ||
| Heating Star Rating (Hot/Avg/Cold) | 3 / 2.5 / 2 | 3.5 / 2.5 / 2 | 3 / 2.5 / 2 | 3.5 / 2.5 / 2 | - | |
| Cooling Current Input Range | A | 2.3 - 20.0 | 3.2 - 25.0 | 3.7 - 28.0 | 4.1 - 32.0 | - |
| Heating Current Input Range | 2.7 - 20.0 | 3.7 - 25.0 | 4.1 - 28.0 | 4.6 - 32.0 | - | |
| Standby Power Consumption | W | 4.0 | 5.1 | 12.5 | 9.8 | - |
| Indoor Airflow Volume P-Hi/H/M/L | m3/h | 2100 / 1900 / 1700 / 1400 | 2800 / 2500 / 2200 / 1800 | 3200 / 2800 / 2400 / 2000 | 3500 / 3100 / 2700 / 2300 | - / 3800 / 3200 / 2950 |
| Indoor Sound Pressure Level H/M/L | dBA | 42 / 41 / 40 | 42 / 40 / 39 | 45 / 43 / 41 | 50 / 48 / 46 | 49 / 46 / 42 |
| Outdoor Sound Pressure Level (H) | 58 | 59 | 60 | 62 | ||
| Outdoor Fan Quantity | 1 | 2 | - | |||
| Operation Range Cool/Heat | C | -15 to 52 / -15 to 24 | -15 to 50 / -15 to 24 | |||
| Refrigerant Type/Charge | kg | R32 / 2.2 | R32 / 2.4 | R32 / 2.8 | R32 / 3.3 | R410A / - |
| Connection Pipe Max Height | m | 30 | ||||
| Connection Pipe Max Length | 75 | 65 | ||||
| Pipe Sizes (Liquid/Gas) | mm | 9.52 / 15.88 | 9.52 / 19.0 | |||
| Indoor Unit Dimensions (HxWxD) | 260 x 1340 x 655 | 360 x 1350 x 720 | 440 x 1400 x 858 | |||
| Outdoor Unit Dimensions (HxWxD) | 820 x 940 x 370 | 1260 x 900 x 340 | 1333 x 952 x 415 | |||
| Indoor Net/Gross Weight | kg | 43 / 49 | 57 / 67 | 60 / 70 | 74 / 86 | |
| Outdoor Net/Gross Weight | 67 / 79 | 90 / 99 | 97 / 106 | 112 / 126 | ||
| SKU | TDS-TSO100HVWDG-INS |
| Brand | Teco |
