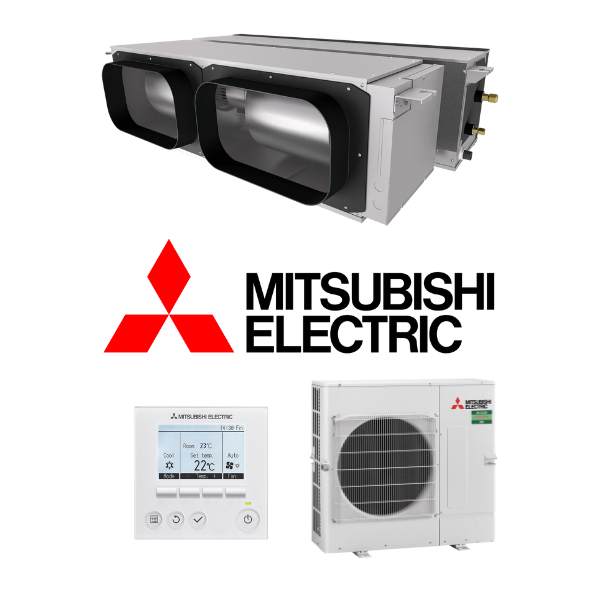

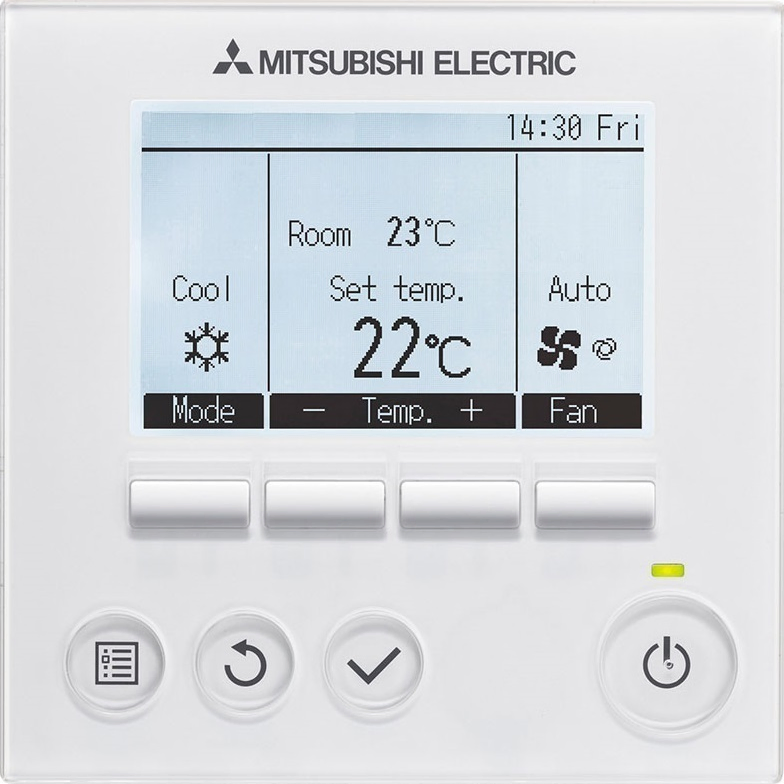

Mitsubishi Electric PEAMS100HAAVKIT 10.0kW Single Phase 2-Piece Construction Ducted System - Includes Outdoor Unit PUZ-M100VKA-A.TH and Wall Controller
Keep your home at the ideal temperature all year long with the PEA-M100-140HAA ducted air conditioning unit, with a 2-piece design, optional zoning and smart home integration for ultimate control.
Key Features:
Acer Services pricing represents “Pricing From” as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Pricing is within 20km from our Mansfield QLD office. All other areas to be quoted.
Wall Split Air Conditioner Installation
Ducted Air Conditioner Installation
| System Name | PEAMS100HAAVKIT | PEAMS125HAAVKIT | PEAMS140HAAVKIT |
|---|---|---|---|

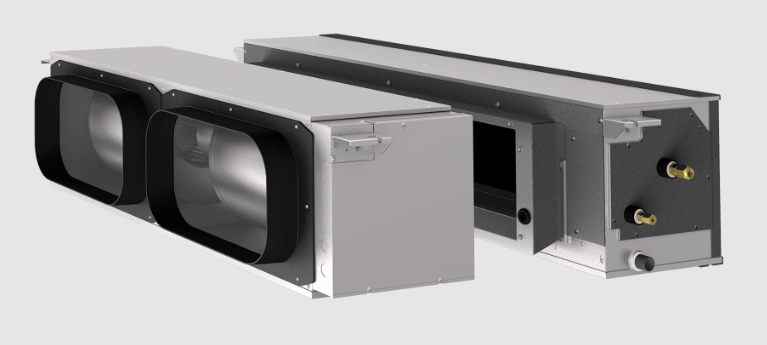

| Indoor Unit | PEA-M100HAA | PEA-M125HAA | PEA-M140HAA |

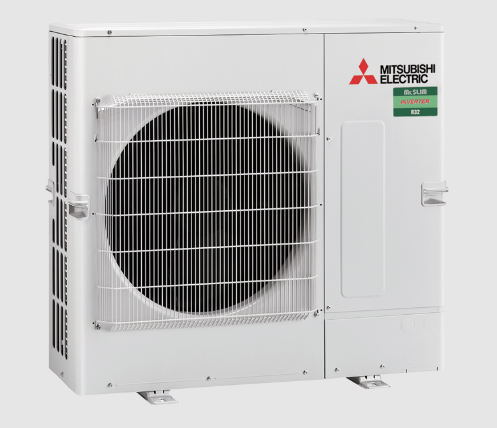

| Outdoor Unit | PUZ-M100VKA-A.TH | PUZ-M125VKA-A.TH | PUZ-M140VKA-A.TH |
| Cooling Capacity (kW) | 10.0 | 12.0 | 14.0 |
| Heating Capacity (kW) | 12.5 | 14.0 | 16.0 |
| Indoor Dimensions (HxWxD) (mm) | 380 x 1405 x 900 | ||
| Outdoor Dimensions (HxWxD) (mm) | 981 x 1050 x 330(+40) | 1338 x 1050 x 330(+40) | |
| Indoor Weight (kg) | 63 | ||
| Outdoor Weight (kg) | 76 | 84 | 99 |
| Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 | ||
| SKU | PEAMS100HAAVKIT-INS |
| Brand | Mitsubishi Electric |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Optional |
| Unit Size | 6 - 10.9kW |
| Series | PEA-M |
| Type | Ducted |
| Outdoor Weight | 76 |
| Refrigerant | R32 |
| Indoor Size | 380x1405x900 |
| Outdoor Size | 981x1050x330(+40) |
| Control System | Standard |
| Heating Capacity (kW) | 12.5 |
| Indoor Weight | 63 |
| Brand | Mitsubishi Electric |
| Zones | 2 |
| Outlets | 6 |
| Cooling Capacity (kW) | 10 |
Mitsubishi Electric PEAMS100HAAVKIT 10.0kW Single Phase 2-Piece Construction Ducted System - Includes Outdoor Unit PUZ-M100VKA-A.TH and Wall Controller
Keep your home at the ideal temperature all year long with the PEA-M100-140HAA ducted air conditioning unit, with a 2-piece design, optional zoning and smart home integration for ultimate control.
Key Features:
| System Name | PEAMS100HAAVKIT | PEAMS125HAAVKIT | PEAMS140HAAVKIT |
|---|---|---|---|
| Indoor Unit | PEA-M100HAA | PEA-M125HAA | PEA-M140HAA |
| Outdoor Unit | PUZ-M100VKA-A.TH | PUZ-M125VKA-A.TH | PUZ-M140VKA-A.TH |
| Cooling Capacity (kW) | 10.0 | 12.0 | 14.0 |
| Heating Capacity (kW) | 12.5 | 14.0 | 16.0 |
| Indoor Dimensions (HxWxD) (mm) | 380 x 1405 x 900 | ||
| Outdoor Dimensions (HxWxD) (mm) | 981 x 1050 x 330(+40) | 1338 x 1050 x 330(+40) | |
| Indoor Weight (kg) | 63 | ||
| Outdoor Weight (kg) | 76 | 84 | 99 |
| Pipe Sizes (mm) (Liquid/Gas) | 9.52 / 15.88 | ||
| SKU | PEAMS100HAAVKIT-INS |
| Brand | Mitsubishi Electric |
