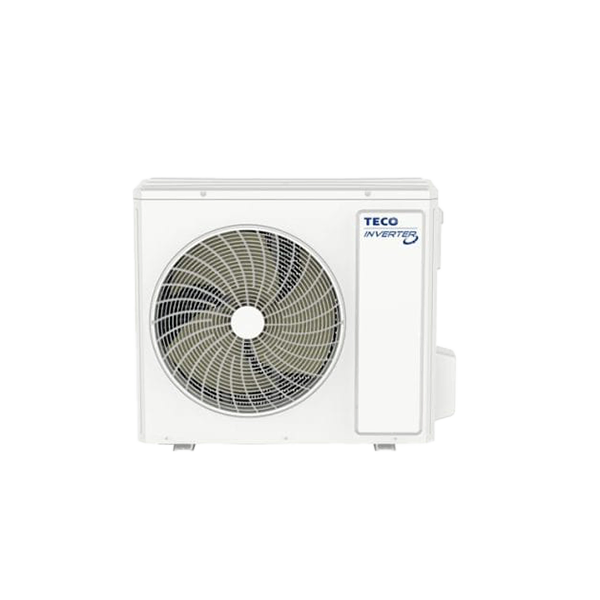

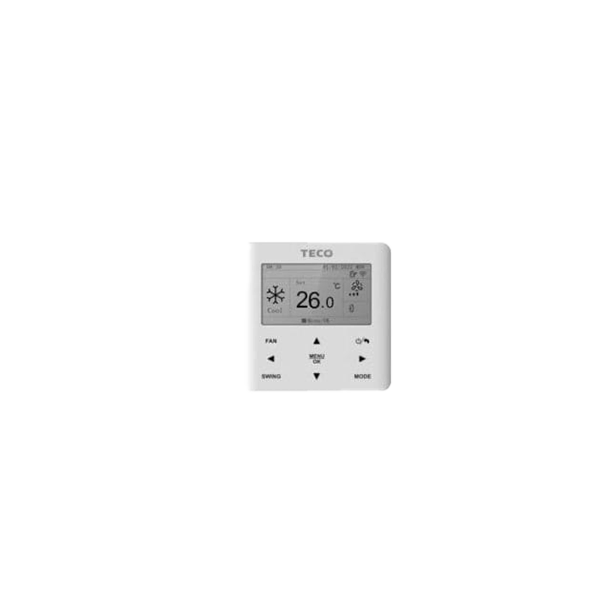

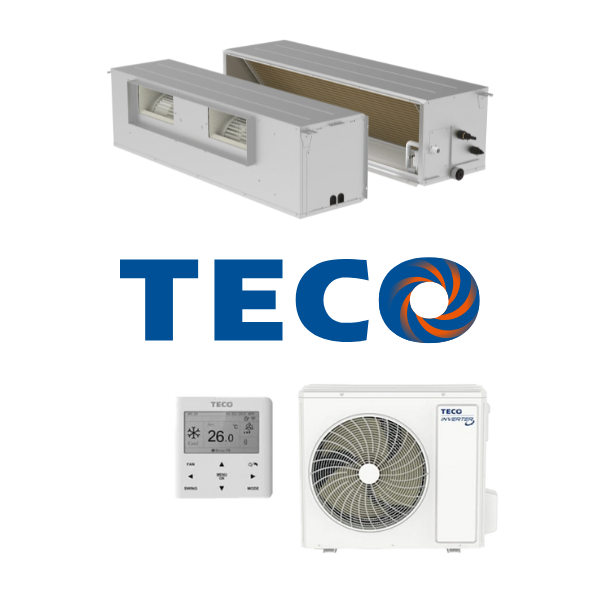

TECO TDS-TSO125HVSWDG 12.5kW Single Phase Ducted Air Conditioner - Includes Outdoor Unit and Wired Wall Controller

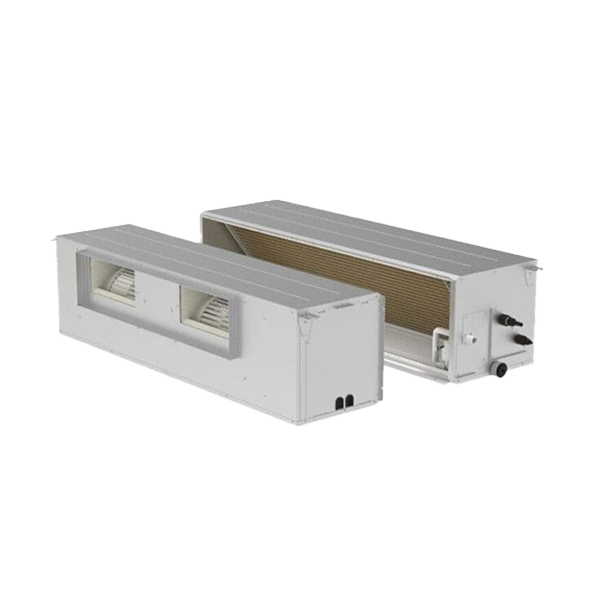

The TECO 12.5kW Ducted System is engineered to deliver powerful and efficient climate control, making it an ideal choice for small to medium-sized homes and light commercial spaces. Its innovative splittable indoor unit offers flexible installation and simplified maintenance, adapting effortlessly to even the most complex ceiling configurations. With a maximum ESP setting of 200Pa , the system ensures strong and consistent airflow, simultaneously optimising comfort across multiple zones. The outdoor condenser coil is enhanced with a Blackfin coating that provides superior corrosion resistance, while the indoor evaporator coil benefits from a Goldfin coating that prevents coil degradation and bolsters long-term durability. An integrated drain pump further streamlines installation by efficiently managing condensate, regardless of the installation environment. Additionally, in-built WiFi enables remote control and real-time monitoring, giving users convenient access to system performance and settings.
Features:
Acer Services pricing represents “Pricing From” as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Pricing is within 20km from our Mansfield QLD office. All other areas to be quoted.
Wall Split Air Conditioner Installation
Ducted Air Conditioner Installation
| System | TDS-TSO100HVWDG | TDS-TSO125HVSWDG | TDS-TSO140HVSWDG | TDS-TSO160HVSWDG | TDS-TSO170HDVM | |
|---|---|---|---|---|---|---|
| Indoor Unit | TDS100HVWDG | TDS125HVSWDG | TDS140HVSWDG | TDS160HVSWDG | TDS170HDVM | |
| Outdoor Unit | TSO100HVWDG | TSO125HVWDG | TSO140HVWDG | TSO160HVWDG | TSO170HVDM | |
| Power Supply | 1 Phase, 220-240V, 50Hz | |||||
| Cooling Capacity Rated/Min-Max | kW | 10.0 (3.0-11.7) | 12.5 (3.6-14.0) | 14.0 (4.2-16.0) | 16.0 (4.8-18.0) | 17.0 (6.8-19.5) |
| Heating Capacity Rated/Min-Max | 12.0 (3.6-13.5) | 14.0 (4.2-15.0) | 16.0 (4.8-17.0) | 18.0 (5.4-20.0) | 17.5 (7.0-21.0 | |
| AEER/ACOP | 3.7 / 4.0 | 3.4 / 3.8 | 3.5 / 3.8 | 3.3 / 3.8 | ||
| Cooling Star Rating (Hot/Avg/Cold) | 4 / 3.5 / 4 | 3.5 / 3 / 3 | 3.5 / 3 / 3.5 | - | ||
| Heating Star Rating (Hot/Avg/Cold) | 3 / 2.5 / 2 | 3.5 / 2.5 / 2 | 3 / 2.5 / 2 | 3.5 / 2.5 / 2 | - | |
| Cooling Current Input Range | A | 2.3 - 20.0 | 3.2 - 25.0 | 3.7 - 28.0 | 4.1 - 32.0 | - |
| Heating Current Input Range | 2.7 - 20.0 | 3.7 - 25.0 | 4.1 - 28.0 | 4.6 - 32.0 | - | |
| Standby Power Consumption | W | 4.0 | 5.1 | 12.5 | 9.8 | - |
| Indoor Airflow Volume P-Hi/H/M/L | m3/h | 2100 / 1900 / 1700 / 1400 | 2800 / 2500 / 2200 / 1800 | 3200 / 2800 / 2400 / 2000 | 3500 / 3100 / 2700 / 2300 | - / 3800 / 3200 / 2950 |
| Indoor Sound Pressure Level H/M/L | dBA | 42 / 41 / 40 | 42 / 40 / 39 | 45 / 43 / 41 | 50 / 48 / 46 | 49 / 46 / 42 |
| Outdoor Sound Pressure Level (H) | 58 | 59 | 60 | 62 | ||
| Outdoor Fan Quantity | 1 | 2 | - | |||
| Operation Range Cool/Heat | C | -15 to 52 / -15 to 24 | -15 to 50 / -15 to 24 | |||
| Refrigerant Type/Charge | kg | R32 / 2.2 | R32 / 2.4 | R32 / 2.8 | R32 / 3.3 | R410A / - |
| Connection Pipe Max Height | m | 30 | ||||
| Connection Pipe Max Length | 75 | 65 | ||||
| Pipe Sizes (Liquid/Gas) | mm | 9.52 / 15.88 | 9.52 / 19.0 | |||
| Indoor Unit Dimensions (HxWxD) | 260 x 1340 x 655 | 360 x 1350 x 720 | 440 x 1400 x 858 | |||
| Outdoor Unit Dimensions (HxWxD) | 820 x 940 x 370 | 1260 x 900 x 340 | 1333 x 952 x 415 | |||
| Indoor Net/Gross Weight | kg | 43 / 49 | 57 / 67 | 60 / 70 | 74 / 86 | |
| Outdoor Net/Gross Weight | 67 / 79 | 90 / 99 | 97 / 106 | 112 / 126 | ||
| SKU | TDS-TSO125HVSWDG-INS |
| Brand | Teco |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| Unit Size | > 17kW |
| Series | Mid Static |
| Type | Ducted |
| Cooling Capacity (kW) | 12.5 |
| Outlets | 8 |
| Zones | 2 |
| Brand | Teco |
| Indoor Weight | 57 |
| Outdoor Weight | 67 |
| Refrigerant | R32 |
| Indoor Size | 360x1350x720 |
| Outdoor Size | 820x940x370 |
| Control System | Standard |
| Heating Capacity (kW) | 14 |
