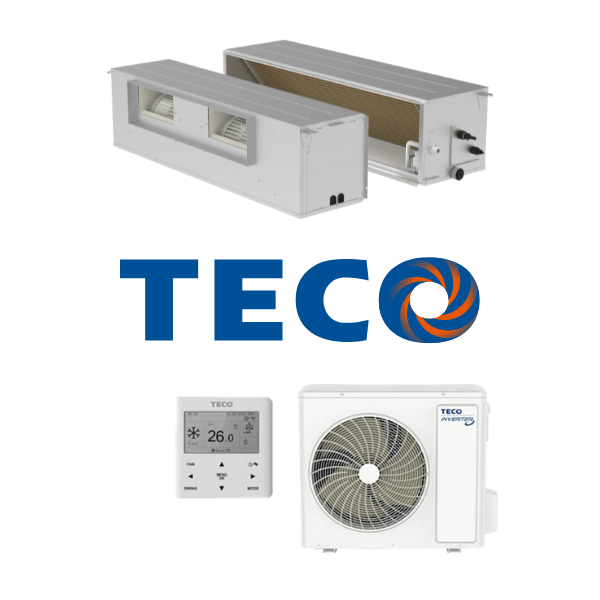

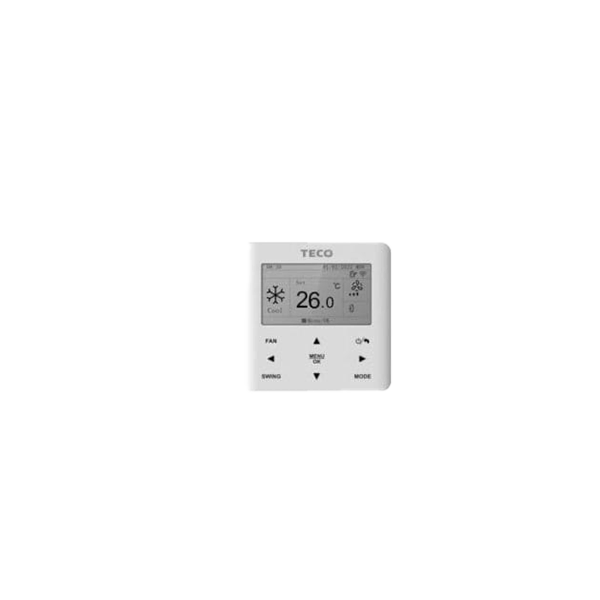

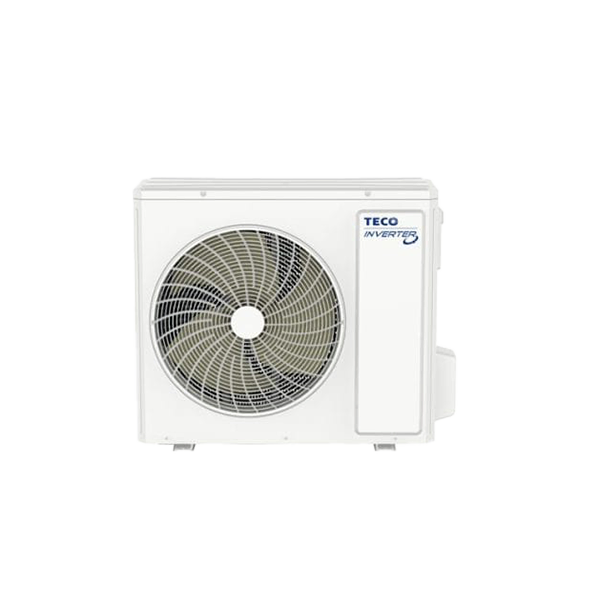

TECO TDS-TSO140HVSWDG 14.0kW Single Phase Ducted Air Conditioner - Includes Outdoor Unit and Wired Wall Controller

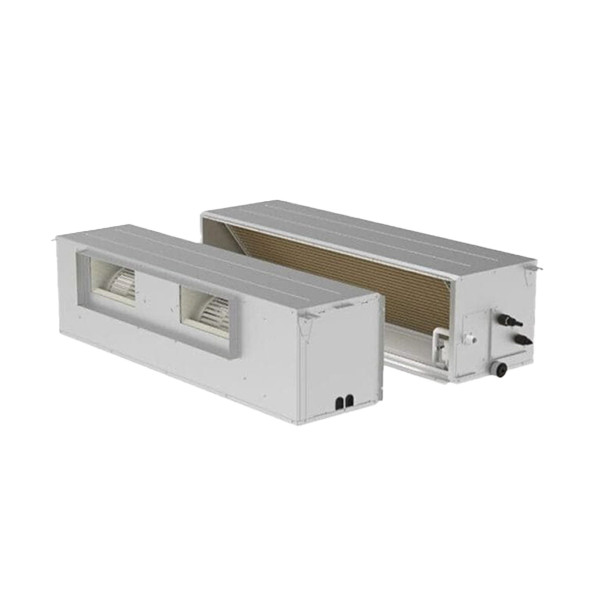

The TECO 14.0kW Ducted System delivers powerful and efficient climate control, making it the perfect solution for medium to large-sized homes and light commercial spaces. Its innovative splittable indoor unit design ensures easier installation and simplified maintenance, even in challenging ceiling configurations. With a maximum ESP setting of 200Pa , the system provides strong and consistent airflow to each zone, optimising comfort throughout the space. The outdoor unit Condenser coil is enhanced with a Blackfin coating that offers superior corrosion protection, while the indoor unit Evaporator coil benefits from a Goldfin coating that enhances durability and prevents coil degradation over time. An integrated drain pump facilitates flexible installation by effectively managing condensate, reducing installation complexities. Additionally, the in-built WiFi enables remote control and real-time monitoring, ensuring convenience and ease of use.
Features:
Acer Services pricing represents “Pricing From” as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Pricing is within 20km from our Mansfield QLD office. All other areas to be quoted.
Wall Split Air Conditioner Installation
Ducted Air Conditioner Installation
| System | TDS-TSO100HVWDG | TDS-TSO125HVSWDG | TDS-TSO140HVSWDG | TDS-TSO160HVSWDG | TDS-TSO170HDVM | |
|---|---|---|---|---|---|---|
| Indoor Unit | TDS100HVWDG | TDS125HVSWDG | TDS140HVSWDG | TDS160HVSWDG | TDS170HDVM | |
| Outdoor Unit | TSO100HVWDG | TSO125HVWDG | TSO140HVWDG | TSO160HVWDG | TSO170HVDM | |
| Power Supply | 1 Phase, 220-240V, 50Hz | |||||
| Cooling Capacity Rated/Min-Max | kW | 10.0 (3.0-11.7) | 12.5 (3.6-14.0) | 14.0 (4.2-16.0) | 16.0 (4.8-18.0) | 17.0 (6.8-19.5) |
| Heating Capacity Rated/Min-Max | 12.0 (3.6-13.5) | 14.0 (4.2-15.0) | 16.0 (4.8-17.0) | 18.0 (5.4-20.0) | 17.5 (7.0-21.0 | |
| AEER/ACOP | 3.7 / 4.0 | 3.4 / 3.8 | 3.5 / 3.8 | 3.3 / 3.8 | ||
| Cooling Star Rating (Hot/Avg/Cold) | 4 / 3.5 / 4 | 3.5 / 3 / 3 | 3.5 / 3 / 3.5 | - | ||
| Heating Star Rating (Hot/Avg/Cold) | 3 / 2.5 / 2 | 3.5 / 2.5 / 2 | 3 / 2.5 / 2 | 3.5 / 2.5 / 2 | - | |
| Cooling Current Input Range | A | 2.3 - 20.0 | 3.2 - 25.0 | 3.7 - 28.0 | 4.1 - 32.0 | - |
| Heating Current Input Range | 2.7 - 20.0 | 3.7 - 25.0 | 4.1 - 28.0 | 4.6 - 32.0 | - | |
| Standby Power Consumption | W | 4.0 | 5.1 | 12.5 | 9.8 | - |
| Indoor Airflow Volume P-Hi/H/M/L | m3/h | 2100 / 1900 / 1700 / 1400 | 2800 / 2500 / 2200 / 1800 | 3200 / 2800 / 2400 / 2000 | 3500 / 3100 / 2700 / 2300 | - / 3800 / 3200 / 2950 |
| Indoor Sound Pressure Level H/M/L | dBA | 42 / 41 / 40 | 42 / 40 / 39 | 45 / 43 / 41 | 50 / 48 / 46 | 49 / 46 / 42 |
| Outdoor Sound Pressure Level (H) | 58 | 59 | 60 | 62 | ||
| Outdoor Fan Quantity | 1 | 2 | - | |||
| Operation Range Cool/Heat | C | -15 to 52 / -15 to 24 | -15 to 50 / -15 to 24 | |||
| Refrigerant Type/Charge | kg | R32 / 2.2 | R32 / 2.4 | R32 / 2.8 | R32 / 3.3 | R410A / - |
| Connection Pipe Max Height | m | 30 | ||||
| Connection Pipe Max Length | 75 | 65 | ||||
| Pipe Sizes (Liquid/Gas) | mm | 9.52 / 15.88 | 9.52 / 19.0 | |||
| Indoor Unit Dimensions (HxWxD) | 260 x 1340 x 655 | 360 x 1350 x 720 | 440 x 1400 x 858 | |||
| Outdoor Unit Dimensions (HxWxD) | 820 x 940 x 370 | 1260 x 900 x 340 | 1333 x 952 x 415 | |||
| Indoor Net/Gross Weight | kg | 43 / 49 | 57 / 67 | 60 / 70 | 74 / 86 | |
| Outdoor Net/Gross Weight | 67 / 79 | 90 / 99 | 97 / 106 | 112 / 126 | ||
| SKU | TDS-TSO140HVSWDG-INS |
| Brand | Teco |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Included |
| Unit Size | > 17kW |
| Series | Mid Static |
| Type | Ducted |
| Outdoor Weight | 90 |
| Refrigerant | R32 |
| Indoor Size | 360x1350x720 |
| Outdoor Size | 1260x900xx340 |
| Control System | Standard |
| Heating Capacity (kW) | 16 |
| Indoor Weight | 60 |
| Brand | Teco |
| Zones | 2 |
| Outlets | 8 |
| Cooling Capacity (kW) | 14 |
