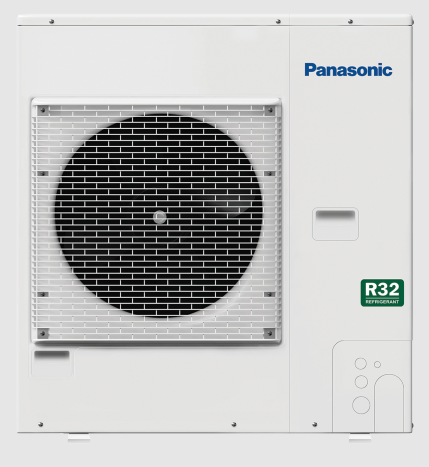

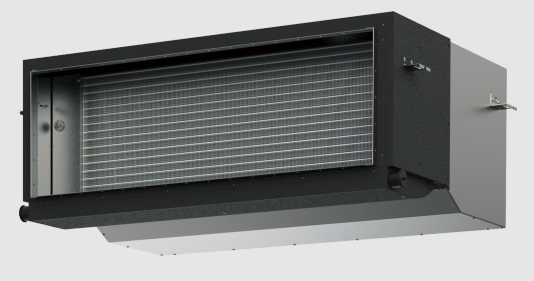

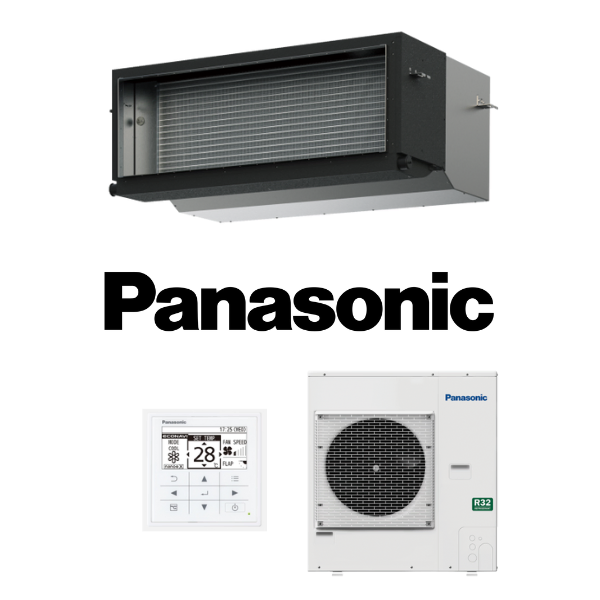

Panasonic S-140PE3R 14.0kW Single Phase High Static Ducted System - Includes Deluxe Wired Wall Controller CZ-RTC5B and Outdoor Unit U-140PZ3R5
Consisting of an outdoor unit and a concealed indoor unit, a ducted system delivers air through ducting pipes (usually in the ceiling) into each room via vents on the floor, wall or ceiling. Panasonic ducted systems look very discreet and have been designed with flexibility in mind, which is extremely helpful when designing a system for your home, and also makes installation much easier. A Panasonic ducted air conditioner will provide years of comfort for you and your family, and it will add value to your home as ducted air conditioning is a highly desirable feature for home buyers.
Features:
Panasonic Premium Inverter Ducted air conditioner reduces wasteful operation, giving you energy saving and better performance.
Panasonic Premium Inverter Ducted air conditioners can operate with higher power during the start-up period to cool and heat the room faster than conventional air conditioners.
Our Premium Inverter ducted systems boast an outstanding operating temperature range. Cooling operation is possible even when it is a scorching 46ºC outside, which is perfect for Australia’s hot summer days and the heating operation is designed to operate even when it’s a freezing -20ºC outside, so even the coldest parts of Australia are covered.
Acer Services pricing represents “Pricing From” as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Pricing is within 20km from our Mansfield QLD office. All other areas to be quoted.
Wall Split Air Conditioner Installation
Ducted Air Conditioner Installation
| System Names | S-60PE3R-SET | S-71PE3R-SET | S-100PE3R-SET | S-125PE3R-SET | S-140PE3R-SET | S-160PE3R-SET | S-180PE4R-SET |
|---|---|---|---|---|---|---|---|
| Indoor Units | S-60PE3R | S-71PE3R | S-100PE3R | S-125PE3R | S-140PE3R | S-160PE3R | S-180PE4R |
| Outdoor Units | U-60PZ3R5 | U-71PZ3R5 | U-100PZ3R5 | U-125PZ3R5 | U-140PZ3R5 | U-160PZH3R5 | U-180PZH3R5 |
| Rated Cooling Capacity (kW) | 6.0 | 7.1 | 10.0 | 12.5 | 14.0 | 16.0 | 18.0 |
| Rated Heating Capacity (kW) | 6.0 | 7.1 | 10.0 | 12.5 | 14.0 | 16.0 | 18.0 |
| Indoor dimensions (H x W x D) (mm) | 290 x 1200 x 700 | 360 x 1200 x 700 | 430 x 1200 x 700 | 486 x 1456 x 916 | |||
| Outdoor dimension (H x W x D) (mm) | 695 x 875 x 320 | 996 x 980 x 370 | 1500 x 980 x 370 | ||||
| Indoor Weight (kg) | 31 | 36 | 37 | 41 | 50 | 50 | 82 |
| Outdoor Weight (kg) | 43 | 50 | 83 | 87 | 87 | 117 | 117 |
| SKU | S-140PE3R-SET-INS |
| Brand | Panasonic |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Optional |
| Unit Size | > 17kW |
| Series | NX High Static |
| Type | Ducted |
| Outdoor Weight | 87 |
| Refrigerant | R32 |
| Indoor Size | 430 x 1,200 x 700 |
| Outdoor Size | 996 x 980 x 370 |
| Control System | Standard |
| Heating Capacity (kW) | 14 |
| Indoor Weight | 50 |
| Brand | Panasonic |
| Zones | 2 |
| Outlets | 8 |
| Cooling Capacity (kW) | 14 |
Panasonic S-140PE3R 14.0kW Single Phase High Static Ducted System - Includes Deluxe Wired Wall Controller CZ-RTC5B and Outdoor Unit U-140PZ3R5
Consisting of an outdoor unit and a concealed indoor unit, a ducted system delivers air through ducting pipes (usually in the ceiling) into each room via vents on the floor, wall or ceiling. Panasonic ducted systems look very discreet and have been designed with flexibility in mind, which is extremely helpful when designing a system for your home, and also makes installation much easier. A Panasonic ducted air conditioner will provide years of comfort for you and your family, and it will add value to your home as ducted air conditioning is a highly desirable feature for home buyers.
Features:
Panasonic Premium Inverter Ducted air conditioner reduces wasteful operation, giving you energy saving and better performance.
Panasonic Premium Inverter Ducted air conditioners can operate with higher power during the start-up period to cool and heat the room faster than conventional air conditioners.
Our Premium Inverter ducted systems boast an outstanding operating temperature range. Cooling operation is possible even when it is a scorching 46ºC outside, which is perfect for Australia’s hot summer days and the heating operation is designed to operate even when it’s a freezing -20ºC outside, so even the coldest parts of Australia are covered.
| System Names | S-60PE3R-SET | S-71PE3R-SET | S-100PE3R-SET | S-125PE3R-SET | S-140PE3R-SET | S-160PE3R-SET | S-180PE4R-SET |
|---|---|---|---|---|---|---|---|
| Indoor Units | S-60PE3R | S-71PE3R | S-100PE3R | S-125PE3R | S-140PE3R | S-160PE3R | S-180PE4R |
| Outdoor Units | U-60PZ3R5 | U-71PZ3R5 | U-100PZ3R5 | U-125PZ3R5 | U-140PZ3R5 | U-160PZH3R5 | U-180PZH3R5 |
| Rated Cooling Capacity (kW) | 6.0 | 7.1 | 10.0 | 12.5 | 14.0 | 16.0 | 18.0 |
| Rated Heating Capacity (kW) | 6.0 | 7.1 | 10.0 | 12.5 | 14.0 | 16.0 | 18.0 |
| Indoor dimensions (H x W x D) (mm) | 290 x 1200 x 700 | 360 x 1200 x 700 | 430 x 1200 x 700 | 486 x 1456 x 916 | |||
| Outdoor dimension (H x W x D) (mm) | 695 x 875 x 320 | 996 x 980 x 370 | 1500 x 980 x 370 | ||||
| Indoor Weight (kg) | 31 | 36 | 37 | 41 | 50 | 50 | 82 |
| Outdoor Weight (kg) | 43 | 50 | 83 | 87 | 87 | 117 | 117 |
| SKU | S-140PE3R-SET-INS |
| Brand | Panasonic |
