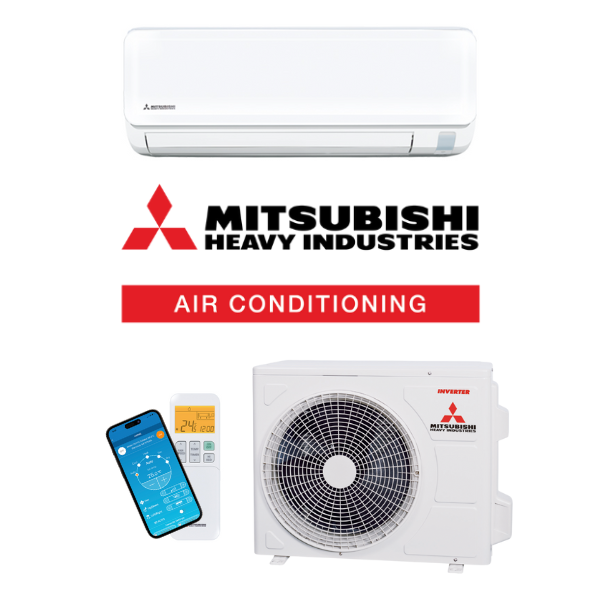

MITSUBISHI HEAVY INDUSTRIES (MHI) 2.0KW DXK07ZTLA-WF-SET CIARA - FULLY INSTALLED WALL SPLIT SYSTEM (BUILT-IN WI-FI)

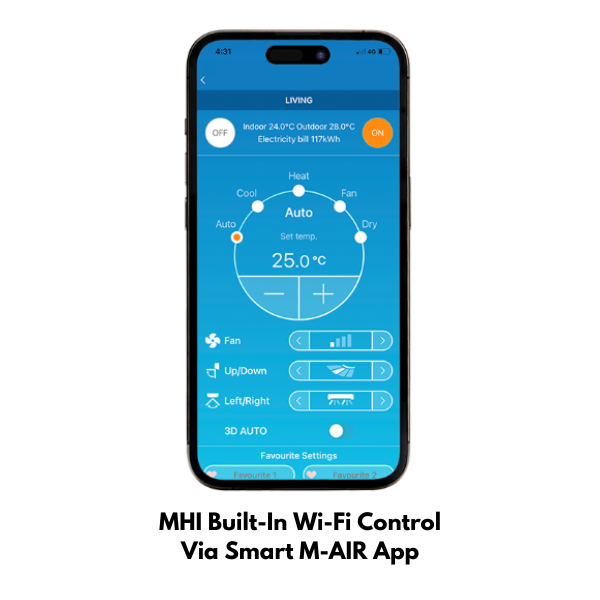

Mitsubishi Heavy Industries DXK05ZTLA-WF Ciara™ Series is an exceptional addition to our renowned line of split system air conditioners. Its elegant Italian design, combined with a compact and lightweight structure, makes it ideal for small spaces. This 1.5 kW unit features cutting-edge built-in Wi-Fi, allowing for effortless control and connectivity. Perfect for those who appreciate both style and substance in their climate control solutions. For a tailored quote based on your specific installation needs, contact our Sales Team today!
Features:
*Terms & Conditions:
Acer Services Conditioning pricing represents "Pricing From" as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Wall Mounted Air Conditioner Installation
| System Name | DXK05ZTLA-WF-SET | DXK07ZTLA-WF-SET | DXK09ZTLA-WF-SET | DXK12ZTLA-WF-SET | DXK18ZTLA-WF-SET | DXK21ZTLA-WF-SET | DXK24ZTLA-WF-SET |
|---|---|---|---|---|---|---|---|

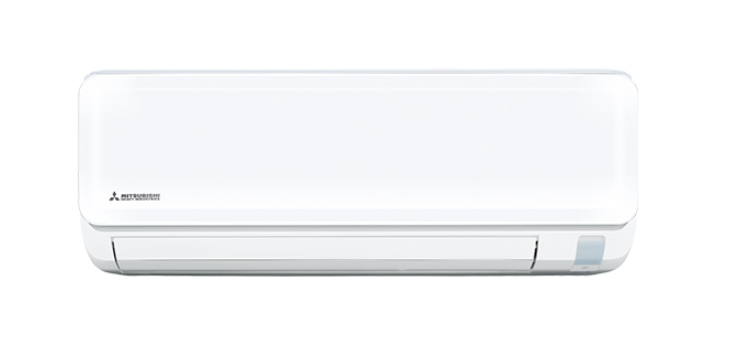

| Indoor Unit | DXK05ZTLA-WF | DXK07ZTLA-WF | DXK09ZTLA-WF | DXK12ZTLA-WF | DXK18ZTLA-WF | DXK21ZTLA-WF | DXK24ZTLA-WF |

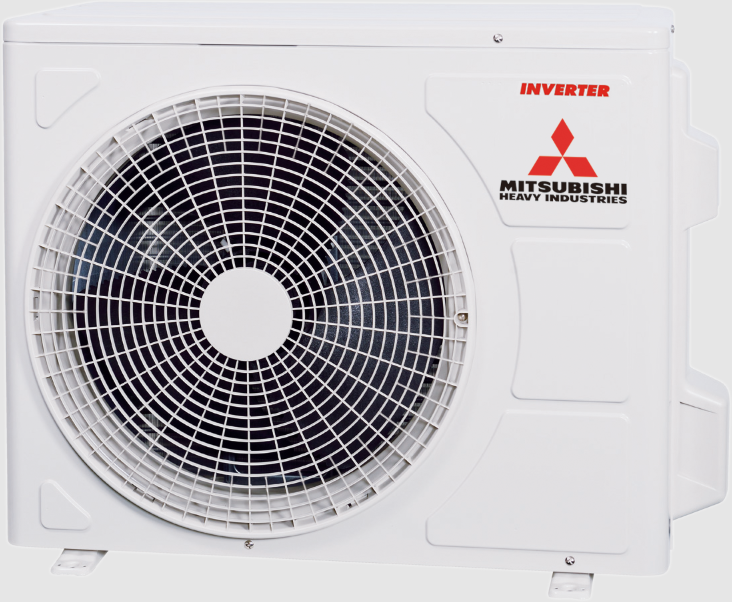

| Outdoor Unit | DXC05ZTLA-W | DXC07ZTLA-W | DXC09ZTLA-W | DXC12ZTLA-W | DXC18ZTLA-W | DXC21ZTLA-W | DXC24ZTLA-W |
| Power Supply | 1 Phase, 220 ~ 240V, 50Hz | ||||||
| Cooling Capacity (kW) | 1.5 | 2.0 | 2.5 | 3.3 | 5.0 | 6.3 | 7.1 |
| Heating Capacity (kW) | 2.0 | 2.7 | 3.0 | 3.8 | 5.8 | 7.1 | 8.0 |
| EER/COP | 4.29 / 4.76 | 3.92 / 4.22 | 4.31 / 4.55 | 3.67 / 4.22 | 3.14 / 3.58 | 3.42 / 3.53 | 3.13 / 3.48 |
| Outdoor Sound Power dB(A) | 56 | 57 | 58 | 61 | 64 | 67 | |
| Refrigerant Type/Amount (kg) | R32 / 0.43 | R32 / 0.59 | R32 / 0.90 | R32 / 1.20 | |||
| Max Pipe Length (m) | 20 | 25 | 30 | ||||
| Max Level Difference (m) | I.D.U Higher 15 / O.D.U Higher 15 | I.D.U Higher 20 / O.D.U Higher 20 | |||||
| Indoor Dimensions (HxWxD) (mm) | 294 x 798 x 210 | 294 x 998 x 230 | |||||
| Outdoor Dimensions (HxWxD) (mm) | 540 x 645(+57) x 275 | 595 x 780(+62) x 290 | 640 x 800(+71) x 290 | ||||
| Indoor Weight (kg) | 8.5 | 9 | 9.5 | 12 | |||
| Outdoor Weight (kg) | 22 | 24 | 33 | 42.5 | |||
| Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | |||||
| SKU | DXK07ZTLA-WF-Set-INS |
| Brand | Mitsubishi Heavy Industries |
| Shipping Weight | 52.0000kg |
| Colour | White |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Included |
| Unit Size | < 5.9kW |
| Series | Ciara |
| Type | Split |
| Cooling Capacity (kW) | 2 |
| Brand | Mitsubishi Heavy Industries |
| Indoor Weight | 8.5 |
| Outdoor Weight | 22 |
| Refrigerant | R32 |
| Indoor Size | 294x798x210 |
| Outdoor Size | 540x645(+57)x275 |
| Heating Capacity (kW) | 2.7 |
MHI air conditioners come with a complete 5 year parts and labour warranty for your peace of mind. Some conditions apply. Please refer to warranty T&Cs for more details.
MHIAA provides comprehensive warranties on all our products, guaranteeing repair or replacement on any products that may have developed defects during the manufacturing process.
To ensure that your warranty period remains valid, please ensure that all repairs are carried out by a service agent nominated by MHIAA only.
Each of our products is covered by its own set of warranty conditions. Please refer to our Warranty Terms & Conditions before you submit your Warranty Service Request.
MITSUBISHI HEAVY INDUSTRIES (MHI) 2.0KW DXK07ZTLA-WF-SET CIARA - FULLY INSTALLED WALL SPLIT SYSTEM (BUILT-IN WI-FI)
Mitsubishi Heavy Industries DXK05ZTLA-WF Ciara™ Series is an exceptional addition to our renowned line of split system air conditioners. Its elegant Italian design, combined with a compact and lightweight structure, makes it ideal for small spaces. This 1.5 kW unit features cutting-edge built-in Wi-Fi, allowing for effortless control and connectivity. Perfect for those who appreciate both style and substance in their climate control solutions. For a tailored quote based on your specific installation needs, contact our Sales Team today!
Features:
MHI air conditioners come with a complete 5 year parts and labour warranty for your peace of mind. Some conditions apply. Please refer to warranty T&Cs for more details.
MHIAA provides comprehensive warranties on all our products, guaranteeing repair or replacement on any products that may have developed defects during the manufacturing process.
To ensure that your warranty period remains valid, please ensure that all repairs are carried out by a service agent nominated by MHIAA only.
Each of our products is covered by its own set of warranty conditions. Please refer to our Warranty Terms & Conditions before you submit your Warranty Service Request.
| System Name | DXK05ZTLA-WF-SET | DXK07ZTLA-WF-SET | DXK09ZTLA-WF-SET | DXK12ZTLA-WF-SET | DXK18ZTLA-WF-SET | DXK21ZTLA-WF-SET | DXK24ZTLA-WF-SET |
|---|---|---|---|---|---|---|---|
| Indoor Unit | DXK05ZTLA-WF | DXK07ZTLA-WF | DXK09ZTLA-WF | DXK12ZTLA-WF | DXK18ZTLA-WF | DXK21ZTLA-WF | DXK24ZTLA-WF |
| Outdoor Unit | DXC05ZTLA-W | DXC07ZTLA-W | DXC09ZTLA-W | DXC12ZTLA-W | DXC18ZTLA-W | DXC21ZTLA-W | DXC24ZTLA-W |
| Power Supply | 1 Phase, 220 ~ 240V, 50Hz | ||||||
| Cooling Capacity (kW) | 1.5 | 2.0 | 2.5 | 3.3 | 5.0 | 6.3 | 7.1 |
| Heating Capacity (kW) | 2.0 | 2.7 | 3.0 | 3.8 | 5.8 | 7.1 | 8.0 |
| EER/COP | 4.29 / 4.76 | 3.92 / 4.22 | 4.31 / 4.55 | 3.67 / 4.22 | 3.14 / 3.58 | 3.42 / 3.53 | 3.13 / 3.48 |
| Outdoor Sound Power dB(A) | 56 | 57 | 58 | 61 | 64 | 67 | |
| Refrigerant Type/Amount (kg) | R32 / 0.43 | R32 / 0.59 | R32 / 0.90 | R32 / 1.20 | |||
| Max Pipe Length (m) | 20 | 25 | 30 | ||||
| Max Level Difference (m) | I.D.U Higher 15 / O.D.U Higher 15 | I.D.U Higher 20 / O.D.U Higher 20 | |||||
| Indoor Dimensions (HxWxD) (mm) | 294 x 798 x 210 | 294 x 998 x 230 | |||||
| Outdoor Dimensions (HxWxD) (mm) | 540 x 645(+57) x 275 | 595 x 780(+62) x 290 | 640 x 800(+71) x 290 | ||||
| Indoor Weight (kg) | 8.5 | 9 | 9.5 | 12 | |||
| Outdoor Weight (kg) | 22 | 24 | 33 | 42.5 | |||
| Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | |||||
| SKU | DXK07ZTLA-WF-Set-INS |
| Brand | Mitsubishi Heavy Industries |
| Shipping Weight | 52.0000kg |
*Terms & Conditions:
Acer Services Conditioning pricing represents "Pricing From" as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Wall Mounted Air Conditioner Installation
