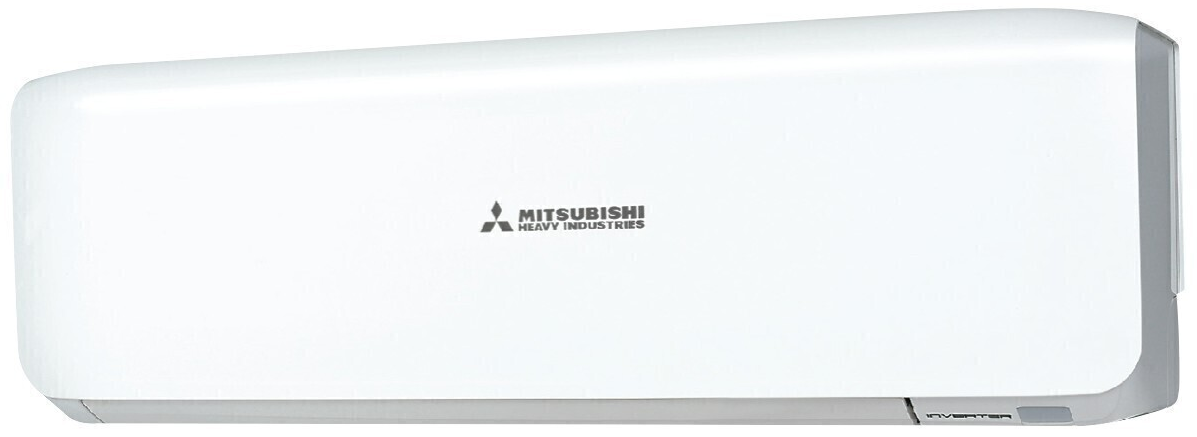

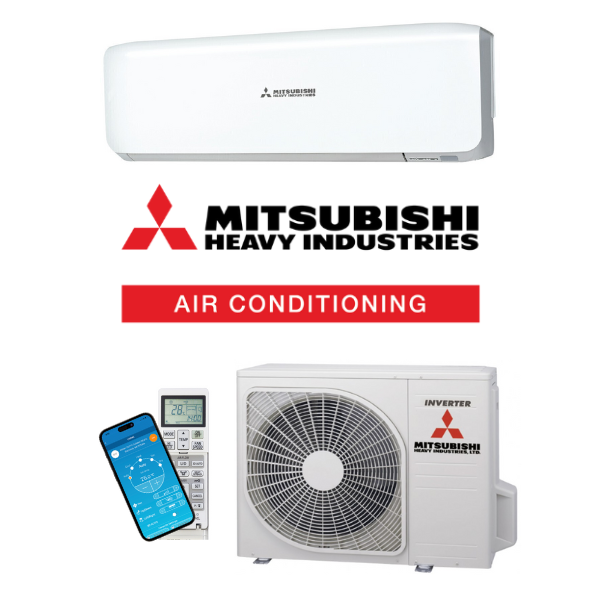

MITSUBISHI HEAVY INDUSTRIES (MHI) 2.5KW DXK09ZSA-WF1-SET AVANTI - FULLY INSTALLED WALL SPLIT SYSTEM (BUILT-IN WI-FI)
the Avanti® split system features a sleek and stylish design and incorporates a range of convenient features and functions. These include various timers and scheduling options as well as ‘Clean Air Technology’ which helps improve indoor air quality by capturing and neutralising fine smoke particles, allergens, odours, bacteria and viruses. The Avanti® is best suited to small and medium spaces.
Features:
*Terms & Conditions:
Acer Services Conditioning pricing represents "Pricing From" as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Wall Mounted Air Conditioner Installation
| System Name | DXK06ZSA-WF1-SET | DXK09ZSA-WF1-SET | DXK12ZSA-WF1-SET | DXK18ZSA-WF1-SET |
|---|---|---|---|---|
| Indoor Unit | DXK06ZSA-WF1 | DXK09ZSA-WF1 | DXK12ZSA-WF1 | DXK18ZSA-WF1 |

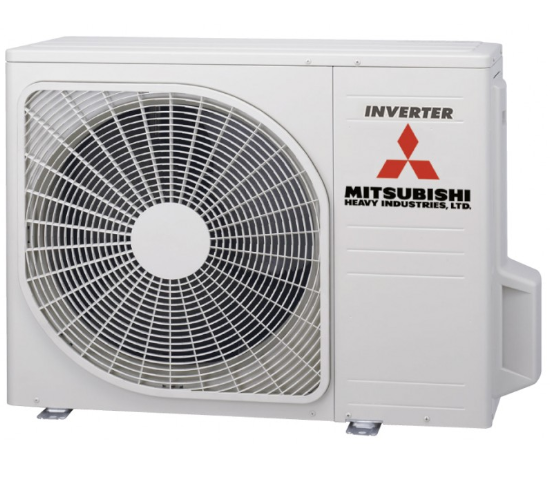

| Outdoor Unit | DXC06ZSA-W | DXC09ZSA-W | DXC12ZSA-W | DXC18ZSA-W |
| Power Supply | 1 Phase, 220 ~ 240V, 50Hz | |||
| Cooling Capacity (kW) | 2.0 | 2.5 | 3.5 | 5.0 |
| Heating Capacity (kW) | 2.7 | 3.2 | 3.7 | 5.8 |
| EER/COP | 4.88 / 4.82 | 4.90 / 4.92 | 4.27 / 4.57 | 3.60 / 3.89 |
| Outdoor Sound Power dB(A) | 56 | 58 | 62 | 61 |
| Refrigerant Type/Amount (kg) | R32 / 0.58 | R32 / 0.78 | R32 / 1.05 | |
| Max Pipe Length (m) | 20 | 25 | ||
| Max Level Difference (m) | I.D.U Higher 10 / O.D.U Higher 10 | I.D.U Higher 15 / O.D.U Higher 15 | ||
| Indoor Dimensions (HxWxD) (mm) | 290 x 870 x 230 | |||
| Outdoor Dimensions (HxWxD) (mm) | 540 x 780(+62) x 290 | 640 x 800(+71) x 290 | ||
| Indoor Weight (kg) | 9.5 | 10 | ||
| Outdoor Weight (kg) | 33 | 36 | 43.5 | |
| Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | ||
| SKU | DXK09ZSA-WF1-Set-INS |
| Brand | Mitsubishi Heavy Industries |
| Shipping Weight | 66.0000kg |
| Colour | White |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Included |
| Unit Size | < 5.9kW |
| Series | Avanti |
| Type | Split |
| Cooling Capacity (kW) | 2.5 |
| Brand | Mitsubishi Heavy Industries |
| Indoor Weight | 10 |
| Outdoor Weight | 36 |
| Refrigerant | R32 |
| Indoor Size | 290x870x230 |
| Outdoor Size | 540x780(+62)x290 |
| Heating Capacity (kW) | 3.2 |
MHI air conditioners come with a complete 5 year parts and labour warranty for your peace of mind. Some conditions apply. Please refer to warranty T&Cs for more details.
MHIAA provides comprehensive warranties on all our products, guaranteeing repair or replacement on any products that may have developed defects during the manufacturing process.
To ensure that your warranty period remains valid, please ensure that all repairs are carried out by a service agent nominated by MHIAA only.
Each of our products is covered by its own set of warranty conditions. Please refer to our Warranty Terms & Conditions before you submit your Warranty Service Request.
MITSUBISHI HEAVY INDUSTRIES (MHI) 2.5KW DXK09ZSA-WF1-SET AVANTI - FULLY INSTALLED WALL SPLIT SYSTEM (BUILT-IN WI-FI)
the Avanti® split system features a sleek and stylish design and incorporates a range of convenient features and functions. These include various timers and scheduling options as well as ‘Clean Air Technology’ which helps improve indoor air quality by capturing and neutralising fine smoke particles, allergens, odours, bacteria and viruses. The Avanti® is best suited to small and medium spaces.
Features:
MHI air conditioners come with a complete 5 year parts and labour warranty for your peace of mind. Some conditions apply. Please refer to warranty T&Cs for more details.
MHIAA provides comprehensive warranties on all our products, guaranteeing repair or replacement on any products that may have developed defects during the manufacturing process.
To ensure that your warranty period remains valid, please ensure that all repairs are carried out by a service agent nominated by MHIAA only.
Each of our products is covered by its own set of warranty conditions. Please refer to our Warranty Terms & Conditions before you submit your Warranty Service Request.
| System Name | DXK06ZSA-WF1-SET | DXK09ZSA-WF1-SET | DXK12ZSA-WF1-SET | DXK18ZSA-WF1-SET |
|---|---|---|---|---|
| Indoor Unit | DXK06ZSA-WF1 | DXK09ZSA-WF1 | DXK12ZSA-WF1 | DXK18ZSA-WF1 |
| Outdoor Unit | DXC06ZSA-W | DXC09ZSA-W | DXC12ZSA-W | DXC18ZSA-W |
| Power Supply | 1 Phase, 220 ~ 240V, 50Hz | |||
| Cooling Capacity (kW) | 2.0 | 2.5 | 3.5 | 5.0 |
| Heating Capacity (kW) | 2.7 | 3.2 | 3.7 | 5.8 |
| EER/COP | 4.88 / 4.82 | 4.90 / 4.92 | 4.27 / 4.57 | 3.60 / 3.89 |
| Outdoor Sound Power dB(A) | 56 | 58 | 62 | 61 |
| Refrigerant Type/Amount (kg) | R32 / 0.58 | R32 / 0.78 | R32 / 1.05 | |
| Max Pipe Length (m) | 20 | 25 | ||
| Max Level Difference (m) | I.D.U Higher 10 / O.D.U Higher 10 | I.D.U Higher 15 / O.D.U Higher 15 | ||
| Indoor Dimensions (HxWxD) (mm) | 290 x 870 x 230 | |||
| Outdoor Dimensions (HxWxD) (mm) | 540 x 780(+62) x 290 | 640 x 800(+71) x 290 | ||
| Indoor Weight (kg) | 9.5 | 10 | ||
| Outdoor Weight (kg) | 33 | 36 | 43.5 | |
| Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | ||
| SKU | DXK09ZSA-WF1-Set-INS |
| Brand | Mitsubishi Heavy Industries |
| Shipping Weight | 66.0000kg |
*Terms & Conditions:
Acer Services Conditioning pricing represents "Pricing From" as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Wall Mounted Air Conditioner Installation
