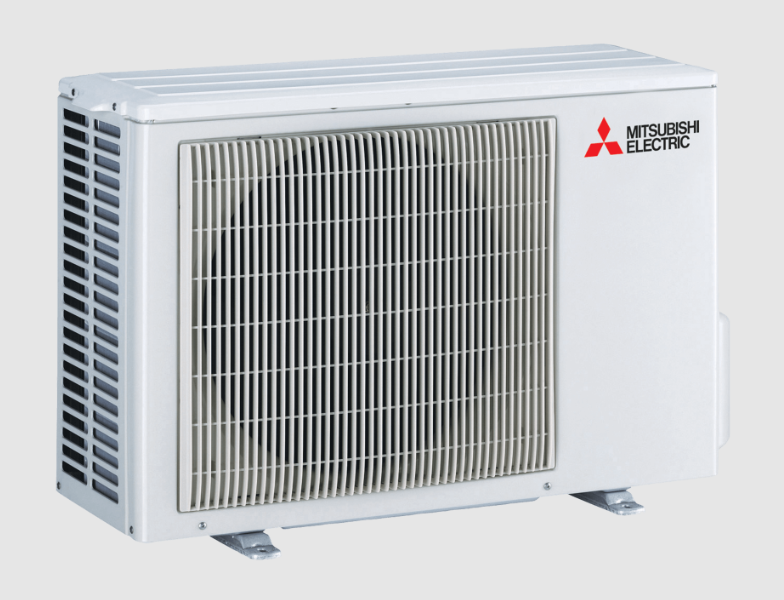

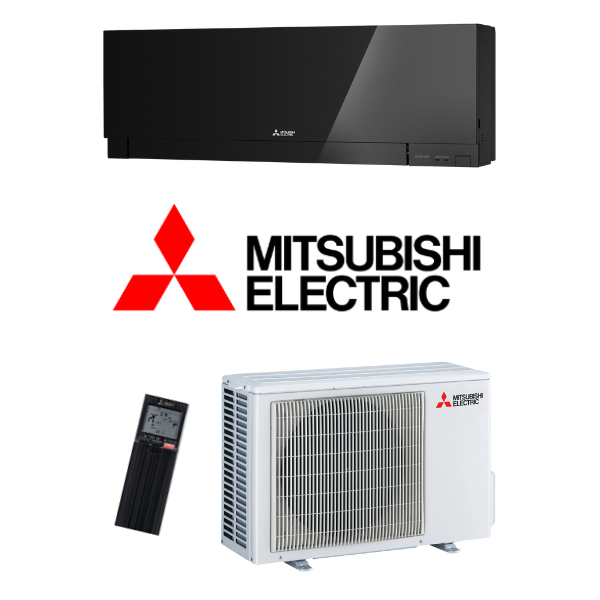

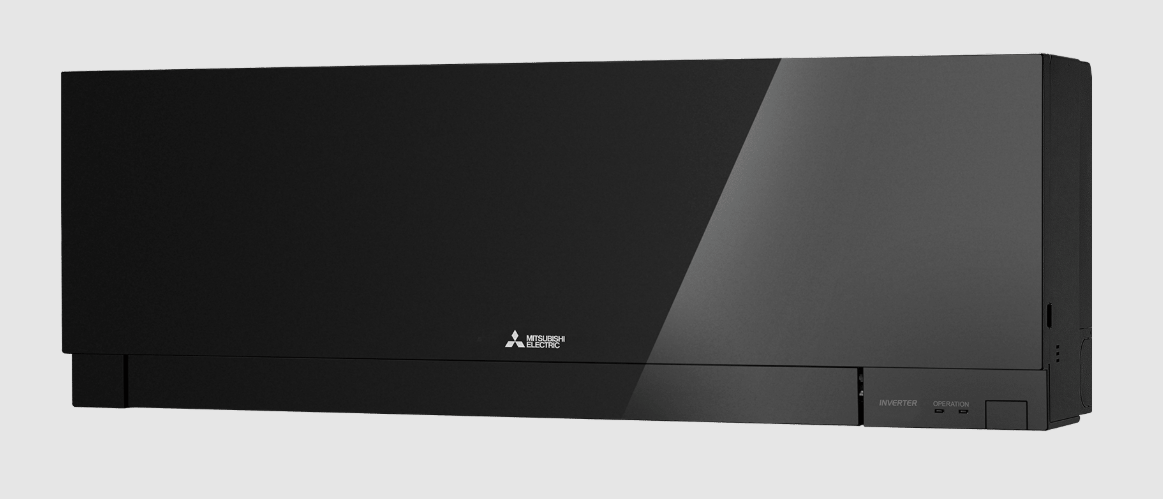

MITSUBISHI ELECTRIC 2.5KW MSZEF25VGKDBKIT (BLACK) - FULLY INSTALLED WALL SPLIT SYSTEM (BUILT-IN WI-FI)
Combining contemporary clean lines with sophistication and efficiency, the MSZ-EF split air conditioners provide optimal indoor comfort and better indoor air quality while expressing a unique interior design style in your home. For a tailored quote based on your specific installation needs, contact our Sales Team today!
Features:
*Terms & Conditions:
Acer Services Conditioning pricing represents "Pricing From" as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Wall Mounted Air Conditioner Installation
| System Name | MSZEF25VGKD(W/B/S)KIT | MSZEF35VGKD(W/B/S)KIT | MSZEF42VGKD(W/B/S)KIT | MSZEF50VGKD(W/B/S)KIT |
|---|---|---|---|---|
| Indoor Unit | MSZ-EF25VGKD(W/B/S)-A1 | MSZ-EF35VGKD(W/B/S)-A1 | MSZ-EF42VGKD(W/B/S)-A1 | MSZ-EF50VGKD(W/B/S)-A1 |
| Outdoor Unit | MUZ-EF25VGD-A1 | MUZ-EF35VGD-A1 | MUZ-EF50VGD-A1 | MUZ-EF60VGD-A1 |
| Power Supply | 1 Phase, 220 ~ 240V, 50Hz | |||
| Refrigerant | R32 | |||
| Cooling Capacity (kW) | 2.5 | 3.5 | 4.2 | 5.0 |
| Heating Capacity (kW) | 3.2 | 4.0 | 5.4 | 5.8 |
| Capacity Min-Max Cool/Heat (kW) | 0.9-3.5 / 1.0-4.2 | 1.1-4.0 / 1.3-5.1 | 0.9-4.6 / 1.3-6.3 | 1.4-5.4 / 1.4-7.5 |
| Total Rated Input Cool/Heat (kW) | 0.54 / 0.70 | 0.91 / 0.95 | 1.20 / 1.46 | 1.55 / 1.56 |
| Total Input Min-Max Cool/Heat (kW) | 0.23-1.15 / 0.23-1.17 | 0.21-1.50 / 0.21-1.33 | 0.15-1.93 / 0.26-2.05 | 0.30-1.98 / 0.30-2.64 |
| EER/COP | 4.63 / 4.57 | 3.85 / 4.21 | 3.50 / 3.71 | 3.23 / 3.72 |
| AEER/ACOP | 4.60 / 4.55 | 3.83 / 4.20 | 3.49 / 3.70 | 3.22 / 3.71 |
| TCSPF Residential (H/Avg/C) - Cool | 6.08 / 5.71 / 5.91 | 5.29 / 5.02 / 5.25 | 4.73 / 4.50 / 4.70 | 4.77 / 4.55 / 4.84 |
| HSPF Residential (H/Avg/C) - Heat | 4.77 / 4.48 / 4.05 | 4.50 / 4.20 / 3.77 | 4.58 / 4.07 / 3.55 | 4.44 / 4.02 / 3.60 |
| ZERL Residential Star Rating (H/Avg/C) - Cool | 4.5 / 4.0 / 4.0 | 3.5 / 3.5 / 3.5 | 3.0 / 3.0 / 3.0 | |
| ZERL Residential Star Rating (H/Avg/C) - Heat | 3.0 / 2.5 / 2.5 | 3.0 / 2.5 / 2.0 | 2.5 / 2.5 / 2.0 | |
| Rated Running Current Cool/Heat (A) | 3.0 / 3.6 | 4.2 / 4.4 | 5.4 / 6.5 | 6.9 / 7.1 |
| Sound Pressure Level (Q/L/M/H/SH) dBA - Cool | 19 - 23 - 29 - 36 - 42 | 21 - 24 - 30 - 36 - 42 | 28 - 31 - 35 - 39 - 43 | 30 - 33 - 36 - 40 - 43 |
| Sound Pressure Level (Q/L/M/H/SH) dBA - Heat | 21 - 24 - 29 - 37 - 45 | 21 - 24 - 30 - 38 - 46 | 28 - 30 - 35 - 41 - 48 | 30 - 33 - 37 - 43 - 49 |
| Sound Pressure Level Out (PWL) dBA - Cool | 47(58) | 49(62) | 50(62) | 52(65) |
| Sound Pressure Level Out (PWL) dBA - Heat | 48(61) | 50(63) | 51(64) | 52(65) |
| Air Volume In Cool/Heat (Quiet-SHi) L/s | 67-175 / 67-198 | 67-175 / 67-212 | 97-187 / 92-220 | 97-188 / 107-243 |
| Max. Running Current (A) | 7.1 | 10.0 | 14.0 | |
| Indoor Dimensions (HxWxD) (mm) | 299 x 885 x 195 | |||
| Outdoor Dimensions (HxWxD) (mm) | 550 x 800 x 285 | 714 x 800 x 285 | ||
| Indoor Weight (kg) | 11.5 | |||
| Outdoor Weight (kg) | 31 | 34 | 35 | 40 |
| Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | |||
| Max Piping Length/Height (m) | 20 / 12 | 30 / 15 | ||
| Outdoor Operating Range Cool/Heat (C) | -10 to 46 / -15 to 24 | |||
| Refrigerant Amount Pre-Charged (kg) | 0.62 | 0.74 | 1.05 | |
| SKU | MSZEF25VGKDBKIT-INS |
| Brand | Mitsubishi Electric |
| Shipping Weight | 149.0000kg |
| Colour | Black |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Included |
| Unit Size | < 5.9kW |
| Series | MSZEF |
| Type | Split |
| Cooling Capacity (kW) | 2.5 |
| Brand | Mitsubishi Electric |
| Indoor Weight | 11.5 |
| Outdoor Weight | 31 |
| Refrigerant | R32 |
| Indoor Size | 299x885x195 |
| Outdoor Size | 550x800x285 |
| Heating Capacity (kW) | 3.2 |
