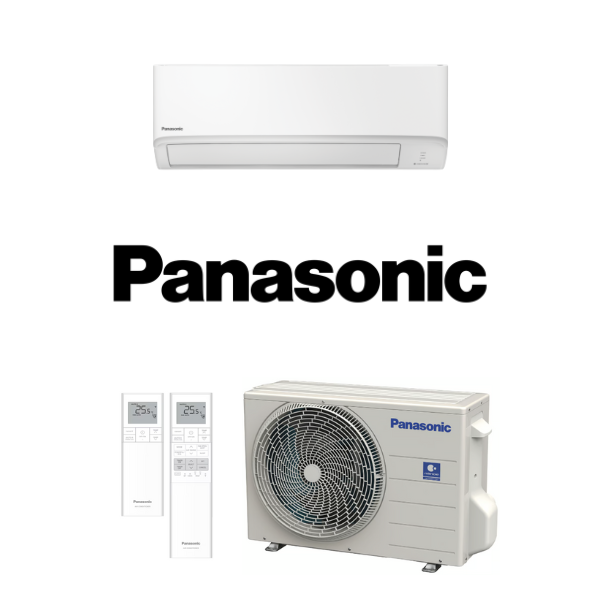

PANASONIC 2.5KW CSCU-Z25AKR Z SERIES - FULLY INSTALLED WALL SPLIT SYSTEM (BUILT-IN WI-FI)
Panasonic Premium Reverse Cycle Inverter Z Series (AKR) is the all-in-one wall-mounted split system for reliable comfort with cooling and heating function. Purify your indoor air with nanoe™ X technology for 24-hour protection. The iAUTO-X function provides faster cooling from start-up while AEROWINGS delivers faster and further airflow across the room. Stay connected with built-in Wi-Fi and Panasonic Comfort Cloud App to manage your air conditioners from anywhere, anytime. Enjoy continuous cooling comfort while saving energy with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control. For a tailored quote based on your specific installation needs, contact our Sales Team today!
Features:
*Terms & Conditions:
Acer Services Conditioning pricing represents "Pricing From" as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Wall Mounted Air Conditioner Installation
| System Name | CS/CU-Z25AKR | CS/CU-Z35AKR | CS/CU-Z42AKR | CS/CU-Z50AKR | CS/CU-Z60AKR | CS/CU-Z71AKR | CS/CU-Z80YKR | CS/CU-Z95AKR |
|---|---|---|---|---|---|---|---|---|
| Indoor Unit | CS-Z25AKR | CS-Z35AKR | CS-Z42AKR | CS-Z50AKR | CS-Z60AKR | CS-Z71AKR | CS-Z80YKR | CS-Z95AKR |
| Outdoor Unit | CU-Z25AKR | CU-Z35AKR | CU-Z42AKR | CU-Z50AKR | CU-Z60AKR | CU-Z71AKR | CU-Z80YKR | CU-Z95AKR |
| Power Supply | 1 Phase, 220 ~ 240V, 50Hz | |||||||
| Cooling Capacity (kW) | 2.5 | 3.5 | 4.2 | 5.0 | 6.0 | 7.1 | 8.0 | 9.5 |
| Heating Capacity (kW) | 3.0 | 4.0 | 5.1 | 6.0 | 6.5 | 8.0 | 9.0 | 10.3 |
| EER/COP | 4.31 / 4.62 | 4.27 / 4.60 | 3.56 / 3.85 | 3.31 / 3.49 | 3.24 / 3.44 | 3.45 / 3.83 | 3.35 / 3.85 | 3.35 / 3.71 |
| Refrigerant Type | R32 | |||||||
| Indoor Airflow (Cooling/Heating) (L/s) | 188 / 200 | 193 / 202 | 193 / 202 | 208 / 228 | 328 / 339 | 352 / 367 | 367 / 377 | 407 / 420 |
| Dehumid (L/h) | 1.50 | 2.00 | 2.40 | 2.80 | 3.30 | 4.10 | 4.70 | 5.00 |
| Max Pipe Length (m) | 20 | 30 | ||||||
| Max Elevation Length (m) | 15 | 20 | ||||||
| Outdoor Operating Range (Cooling / Heating) | -10 ~ 46 / -15 ~ 24 | |||||||
| Indoor Dimensions (HxWxD) (mm) | 290 x 779 x 209 | 295 x 1040 x 244 | 309 x 1212 x 269 | |||||
| Outdoor Dimensions (HxWxD) (mm) | 542 x 780 x 289 | 619 x 824 x 299 | 695 x 875 x 320 | 795 x 875 x 320 | ||||
| Indoor Weight (kg) | 8 | 12 | 13 | 17 | ||||
| Outdoor Weight (kg) | 25 | 31 | 35 | 45 | 51 | 55 | ||
| Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 15.88 | |||||
| SKU | CSCU-Z25AKR-INS |
| Brand | Panasonic |
| Shipping Weight | 168.0000kg |
| Colour | White |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Included |
| Unit Size | < 5.9kW |
| Series | Z Series |
| Type | Split |
| Cooling Capacity (kW) | 2.5 |
| Brand | Panasonic |
| Indoor Weight | 8 |
| Outdoor Weight | 25 |
| Refrigerant | R32 |
| Indoor Size | 290x779x209 |
| Outdoor Size | 542x780x289 |
| Heating Capacity (kW) | 3 |
PANASONIC 2.5KW CSCU-Z25AKR Z SERIES - FULLY INSTALLED WALL SPLIT SYSTEM (BUILT-IN WI-FI)
Panasonic Premium Reverse Cycle Inverter Z Series (AKR) is the all-in-one wall-mounted split system for reliable comfort with cooling and heating function. Purify your indoor air with nanoe™ X technology for 24-hour protection. The iAUTO-X function provides faster cooling from start-up while AEROWINGS delivers faster and further airflow across the room. Stay connected with built-in Wi-Fi and Panasonic Comfort Cloud App to manage your air conditioners from anywhere, anytime. Enjoy continuous cooling comfort while saving energy with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control. For a tailored quote based on your specific installation needs, contact our Sales Team today!
Features:
| System Name | CS/CU-Z25AKR | CS/CU-Z35AKR | CS/CU-Z42AKR | CS/CU-Z50AKR | CS/CU-Z60AKR | CS/CU-Z71AKR | CS/CU-Z80YKR | CS/CU-Z95AKR |
|---|---|---|---|---|---|---|---|---|
| Indoor Unit | CS-Z25AKR | CS-Z35AKR | CS-Z42AKR | CS-Z50AKR | CS-Z60AKR | CS-Z71AKR | CS-Z80YKR | CS-Z95AKR |
| Outdoor Unit | CU-Z25AKR | CU-Z35AKR | CU-Z42AKR | CU-Z50AKR | CU-Z60AKR | CU-Z71AKR | CU-Z80YKR | CU-Z95AKR |
| Power Supply | 1 Phase, 220 ~ 240V, 50Hz | |||||||
| Cooling Capacity (kW) | 2.5 | 3.5 | 4.2 | 5.0 | 6.0 | 7.1 | 8.0 | 9.5 |
| Heating Capacity (kW) | 3.0 | 4.0 | 5.1 | 6.0 | 6.5 | 8.0 | 9.0 | 10.3 |
| EER/COP | 4.31 / 4.62 | 4.27 / 4.60 | 3.56 / 3.85 | 3.31 / 3.49 | 3.24 / 3.44 | 3.45 / 3.83 | 3.35 / 3.85 | 3.35 / 3.71 |
| Refrigerant Type | R32 | |||||||
| Indoor Airflow (Cooling/Heating) (L/s) | 188 / 200 | 193 / 202 | 193 / 202 | 208 / 228 | 328 / 339 | 352 / 367 | 367 / 377 | 407 / 420 |
| Dehumid (L/h) | 1.50 | 2.00 | 2.40 | 2.80 | 3.30 | 4.10 | 4.70 | 5.00 |
| Max Pipe Length (m) | 20 | 30 | ||||||
| Max Elevation Length (m) | 15 | 20 | ||||||
| Outdoor Operating Range (Cooling / Heating) | -10 ~ 46 / -15 ~ 24 | |||||||
| Indoor Dimensions (HxWxD) (mm) | 290 x 779 x 209 | 295 x 1040 x 244 | 309 x 1212 x 269 | |||||
| Outdoor Dimensions (HxWxD) (mm) | 542 x 780 x 289 | 619 x 824 x 299 | 695 x 875 x 320 | 795 x 875 x 320 | ||||
| Indoor Weight (kg) | 8 | 12 | 13 | 17 | ||||
| Outdoor Weight (kg) | 25 | 31 | 35 | 45 | 51 | 55 | ||
| Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 15.88 | |||||
| SKU | CSCU-Z25AKR-INS |
| Brand | Panasonic |
| Shipping Weight | 168.0000kg |
*Terms & Conditions:
Acer Services Conditioning pricing represents "Pricing From" as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Wall Mounted Air Conditioner Installation
