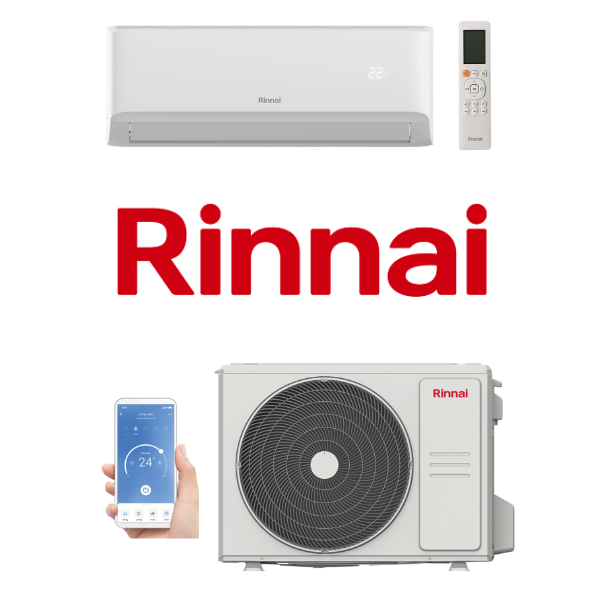

RINNAI 2.6KW HSNRP26B PB SERIES - FULLY INSTALLED WALL SPLIT SYSTEM (BUILT-IN WI-FI)
Designed for Australia’s ever-changing climate, the Rinnai P Series Inverter Split System provides both optimal heating and cooling all year round no matter where you live. Packed with innovative features including Wi-Fi connectivity, self-cleaning function, and sleep mode, the P Series is the ultimate in providing complete comfort. This smart system can also work around your unique lifestyle with an ultra-practical timer function, allowing you to set the unit’s operation times to achieve the perfect room temperature. Encased in a sleek contemporary design, the Rinnai P Series range is durable, convenient, and easy to maintain. For a tailored quote based on your specific installation needs, contact our Sales Team today!
Features:
*Terms & Conditions:
Acer Services Conditioning pricing represents "Pricing From" as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Wall Mounted Air Conditioner Installation
| System | HSNRP26B | HSNRP35B | HSNRP50B | HSNRP60B | HSNRP70B | HSNRP80B |
|---|---|---|---|---|---|---|
| Rated Cooling Capacity (kW) | 2.6 | 3.5 | 5.0 | 6.0 | 7.0 | 8.0 |
| Rated Heating Capacity (kW) | 2.7 | 3.8 | 5.4 | 6.5 | 7.8 | 8.3 |
| Power Supply (V/Ph/Hz) | 220-240 / 1 / 50 | |||||
| Recommended Circuit Breaker (A) | 16 | 20 | 25 | |||
| Connectivity | Wi-Fi Enabled | |||||
| Demand Response Enabling Device | DRED Enabled | |||||
| Capacity Range Cool/Heat (kW) | 1.0-3.5 / 1.4-4.0 | 1.5-4.9 / 1.8-5.1 | 2.1-7.2 / 2.5-7.8 | 3.2-8.0 / 2.2-8.8 | ||
| Rated Power Input Cool/Heat (kW) | 530 / 510 | 790 / 830 | 1280 / 1340 | 1750 / 1686 | 1920 / 1990 | 2200 / 2280 |
| Rated Current (A) | 2.5 / 2.5 | 3.8 / 5.0 | 5.8 / 6.0 | 8.0 / 8.2 | 10.5 / 10.8 | |
| AEER/ACOP (W/W) | 4.98 / 5.27 | 4.42 / 4.56 | 3.90 / 4.02 | 3.42 / 3.85 | 3.53 / 3.73 | 3.39 / 3.61 |
| TCSPF: Hot/Mixed/Cold (Cool) | 8.02 / 7.50 / 7.89 | 7.00 / 6.76 / 7.07 | 6.19 / 5.83 / 6.17 | 5.86 / 5.61 / 5.99 | 5.36 / 5.14 / 5.37 | 5.38 / 5.21 / 5.48 |
| HSPF: Hot/Mixed/Cold (Heat) | 5.79 / 5.35 / 4.96 | 6.23 / 5.22 / 4.50 | 4.89 / 4.31 / 3.71 | 5.31 / 4.29 / 3.52 | 4.97 / 4.32 / 3.82 | 4.96 / 4.20 / 3.66 |
| Star Rating: Hot/Mixed/Cold (Cool) | 6.5 / 5.5 / 6.0 | 5.0 / 5.0 / 5.5 | 4.5 / 4.0 / 4.5 | 4.0 / 4.0 / 4.0 | 3.5 / 3.5 / 3.5 | |
| Star Rating: Hot/Mixed/Cold (Heat) | 4.0 / 3.5 / 3.0 | 4.5 / 3.5 / 3.0 | 3.0 / 2.5 / 2.0 | 3.5 / 2.5 / 2.0 | 3.0 / 2.5 / 2.0 | |
| Maximum Input Power Cool/Heat (W) | 2300 | 3600 | 4050 | |||
| Maximum Input Current Cool/Heat (A) | 10.5 | 15.5 | 17.5 | |||
| Suitable Area Coverage up to 2.6m insulated ceiling (m2) | 11-17 | 16-23 | 23-33 | 27-40 | 32-47 | |

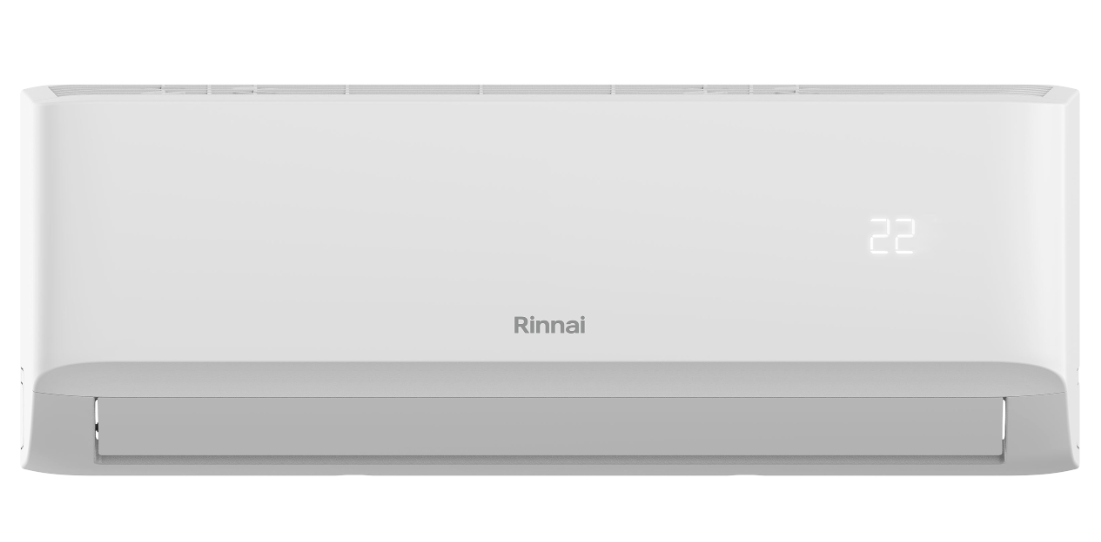

| Indoor Unit | HINRP26B | HINRP35B | HINRP50B | HINRP60B | HINRP70B | HINRP80B |
| Air Flow (Turbo/H/M/L/Min) (L/s) | 175 / 139 / 100 / 83 / 56 | 183 / 147 / 106 / 86 / 58 | 264 / 222 / 167 / 139 / 89 | 382 / 303 / 250 / 229 / 147 | ||
| Moisture Removal (L/h) | 1.0 | 1.2 | 1.8 | 2.1 | 2.4 | 3.0 |
| Sound Pressure Level @1m (Turbo/H/M/L/Min) dB(A) | 46.4 / 39 / 32.5 / 30 / 24.5 | 46.7 / 39 / 32.5 / 30 / 24.5 | 47.1 / 44.5 / 38 / 34.5 / 28 | 57.6 / 45 / 39 / 33.5 / 29.5 | ||
| Air Swing Louvres (Direction) | 4-Way Swing | |||||
| Unit Dimensions (HxWxD) (mm) | 295 x 802 x 200 | 321 x 971 x 228 | 337 x 1082 x 234 | |||
| Packing Dimensions (HxWxD) (mm) | 375 x 875 x 288 | 405 x 1045 x 308 | 415 x 1155 x 318 | |||
| Net/Gross Weight (kg) | 8.5 / 11.5 | 11.1 / 15.2 | 13.5 / 17.8 | |||
| Operating Range Cool/Heat (C) | 16 to 32 / 0 to 30 | |||||

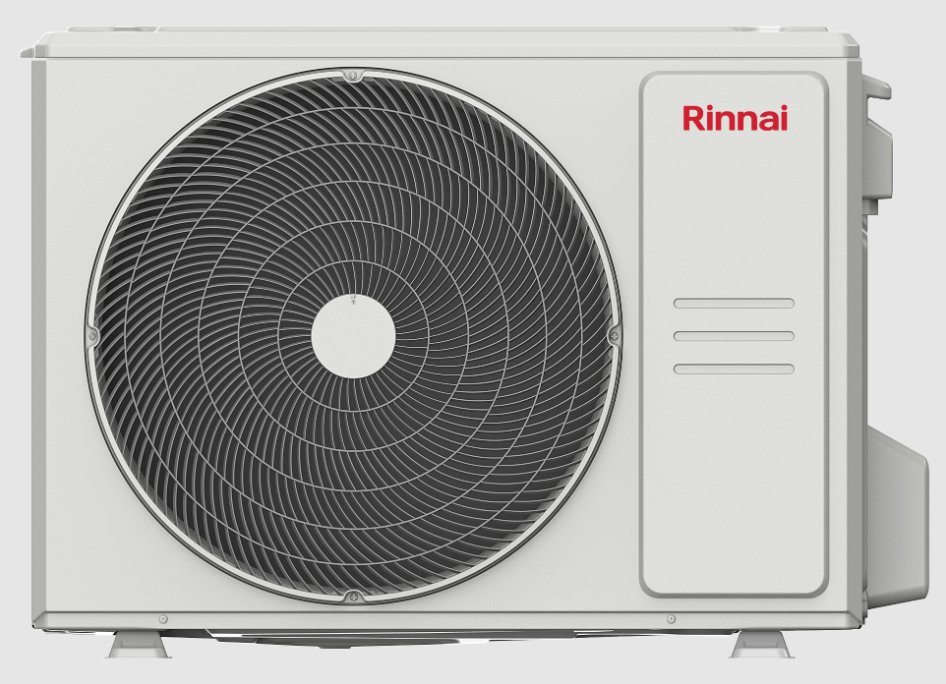

| Outdoor Unit | HONRP26B | HONRP35B | HONRP50B | HONRP60B | HONRP70B | HONRP80B |
| Sound Power Level dB(A) | 57.8 | 58.5 | 65.2 | 65 | 66.5 | |
| Sound Pressure Level @1m dB(A) | 55.5 | 59.5 | 61 | |||
| Unit Dimensions (HxWxD) (mm) | 554 x 805 x 330 | 673 x 890 x 342 | ||||
| Packing Dimensions (HxWxD) (mm) | 615 x 915 x 370 | 740 x 995 x 398 | ||||
| Net/Gross Weight (kg) | 32.2 / 35.1 | 38.3 / 41.6 | 42.4 / 46.9 | |||
| Refrigerant Type/Amount (kg) | R32 / 0.90 | R32 / 1.26 | R32 / 1.40 | |||
| Pipe Sizes (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 15.88 | |||
| Maximum Pipe Length (m) | 25 | 30 | 50 | |||
| Chargeless Length (m) | 10 | |||||
| Extra Charge for Lengths >10m (g/m) | 12 | |||||
| Maximum Vertical Separation (m) | 10 | 20 | 25 | |||
| Ambient Temp Limits Cool/Heat (C) | 0 to 52 / -15 to 24 | 0 to 50 / -15 to 24 | -15 to 50 / -15 to 24 | |||
| SKU | HSNRP26B-INS |
| Brand | Rinnai |
| Shipping Weight | 93.0000kg |
| Colour | White |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Included |
| Unit Size | < 5.9kW |
| Series | PB Series |
| Type | Split |
| Cooling Capacity (kW) | 2.6 |
| Brand | Rinnai |
| Indoor Weight | 8.5 |
| Outdoor Weight | 32.2 |
| Refrigerant | R32 |
| Indoor Size | 295x802x200 |
| Outdoor Size | 554x805x330 |
| Heating Capacity (kW) | 2.7 |
