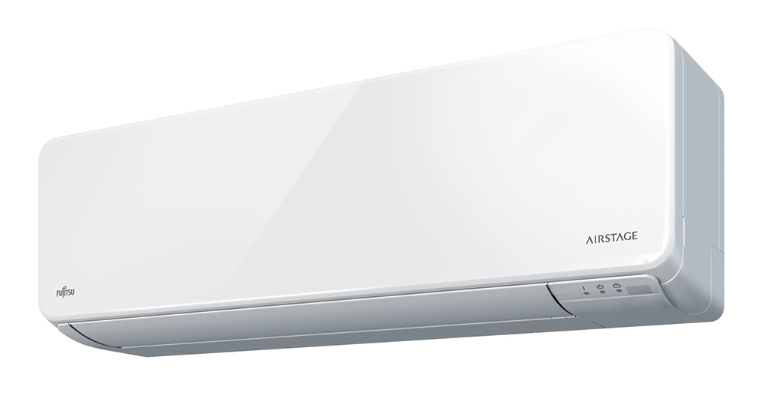

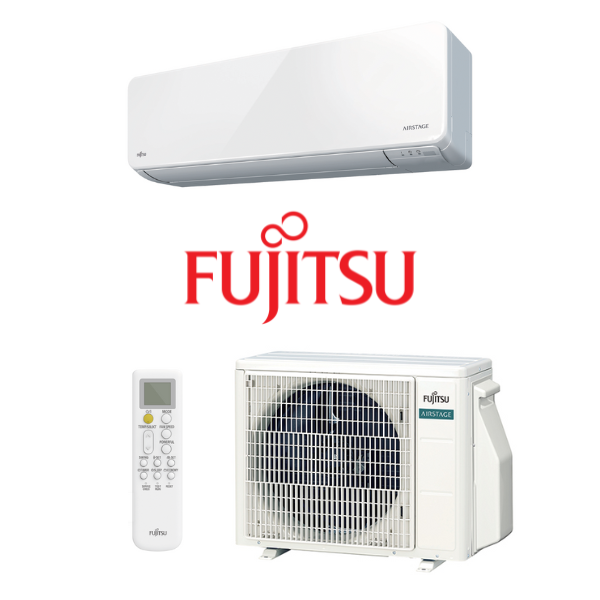

FUJITSU 3.4KW SET-ASTH12KNCA COMFORT RANGE - FULLY INSTALLED WALL SPLIT SYSTEM (OPTIONAL WI-FI ADAPTOR)
With a compact and featuring a modern aesthetic they are a suitable solution for indoor comfort both residentially and commercially. Ideal for small rooms, the Fujitsu's Comfort range of wall mounted split system air conditioning units provide energy efficient, all-year-round climate control for the home and uses R32 refrigerant. Other features include super-quiet mode and powerful operation mode. For a tailored quote based on your specific installation needs, contact our Sales Team today!
Features:
*Terms & Conditions:
Acer Services Conditioning pricing represents "Pricing From" as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Wall Mounted Air Conditioner Installation
| System Names | SET-ASTH09KNCA | SET-ASTH12KNCA | SET-ASTH14KNCA | SET-ASTH18KNTA | SET-ASTH22KNTA | SET-ASTH24KNTA | SET-ASTH30KNTA | SET-ASTH34KNTA |
|---|---|---|---|---|---|---|---|---|
| Indoor Units | ASTH09KNCA | ASTH12KNCA | ASTH14KNCA | ASTH18KNTA | ASTH22KNTA | ASTH24KNTA | ASTH30KNTA | ASTH34KNTA |
| Outdoor Units | AOTH09KNCA | AOTH12KNCA | AOTH14KNCA | AOTH18KNTA | AOTH22KNTA | AOTH24KNTA | AOTH30KNTA | AOTH34KNTA |
| Power Source (V/Ph/Hz) | 220-240 / 1 / 50 | |||||||
| Rated Cooling Capacity (kW) | 2.5 | 3.4 | 4.2 | 5.0 | 6.0 | 7.1 | 8.5 | 9.5 |
| Rated Heating Capacity (kW) | 3.2 | 4.0 | 4.7 | 5.2 | 6.5 | 8.0 | 9.0 | 10.3 |
| EER / COP | 4.24 / 4.16 | 3.54 / 4.16 | 3.41 / 4.00 | 3.47 / 3.91 | 3.37 / 3.51 | 3.23 / 3.85 | 3.41 / 3.77 | 3.49 / 3.39 |
| Outdoor Sound Power (dBA) | 62 | 65 | 65 | 61 | 68 | 67 | 65 | 70 |
| Indoor dimensions (H x W x D) (mm) | 270 x 784 x 224 | 270 x 834 x 215 | 270 x 834 x 232 | 280 x 980 x 240 | 340 x 1150 x 280 | |||
| Outdoor dimension (H x W x D) (mm) | 541 x 663 x 290 | 542 x 799 x 290 | 632 x 799 x 290 | 788 x 940 x 320 | 998 x 940 x 320 | |||
| Indoor Weight (kg) | 8 | 9.5 | 10 | 11 | 12.5 | 16.5 | ||
| Outdoor Weight (kg) | 25 | 31 | 33 | 36 | 39 | 53 | 62 | |
| Pipe Sizes (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | 9.52 / 15.88 | |||||
| Pipe Length (m) (Max / Precharged) | 20 (15) | 25 (15) | 30 (15) | 30 (20) | 30 (25) | |||
| Max Height Difference (m) | 15 | 20 | 25 | 20 | ||||
| Operation Range Cooling (Min to Max CDB) | -10 to 50 | |||||||
| Operation Range Heating (Min to Max CDB) | -15 to 24 | |||||||
| Refrigerant Type/Amount (g) | R32 / 550 | R32 / 700 | R32 / 850 | R32 / 890 | R32 / 960 | R32 / 1200 | R32 / 1700 | R32 / 2300 |
| SKU | SET-ASTH12KNCA-INS |
| Brand | Fujitsu |
| Shipping Weight | 177.0000kg |
| Colour | White |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Optional |
| Unit Size | < 5.9kW |
| Series | Comfort |
| Type | Split |
| Cooling Capacity (kW) | 3.4 |
| Brand | Fujitsu |
| Indoor Weight | 9.5 |
| Outdoor Weight | 25 |
| Refrigerant | R32 |
| Indoor Size | 270x834x215 |
| Outdoor Size | 541x663x290 |
| Heating Capacity (kW) | 4 |
