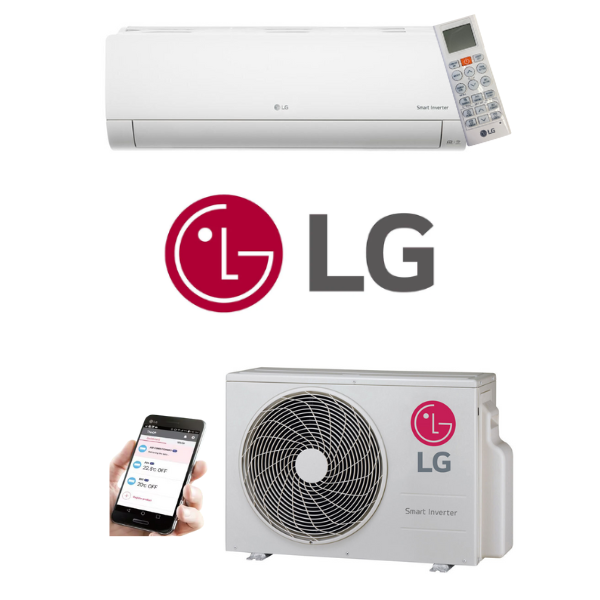

LG 3.4KW WS12TWS SMART SERIES - FULLY INSTALLED WALL SPLIT SYSTEM (BUILT-IN WI-FI)
Designed for the way you live, LG Air Conditioners are available in a wide range of styles - so you can create a space that’s cool, comfortable and stylish. For a tailored quote based on your specific installation needs, contact our Sales Team today!
With LG Split System air conditioning products, you’ll also enjoy benefits such as:
For ease of installation, energy efficiency and quiet performance, LG air conditioning systems are the smart choice.
*Terms & Conditions:
Acer Services Conditioning pricing represents "Pricing From" as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Wall Mounted Air Conditioner Installation
| System | WS09TWS | WS12TWS | WS18TWS | WS24SL |
|---|---|---|---|---|
| Indoor Unit | WS09TWN | WS12TWN | WS18TWN | WS24SLN |
| Outdoor Unit | WS09TWU | WS12TWU | WS18TWU | WS24SLU |
| Rated Cooling Capacity (kW) | 2.6 | 3.4 | 4.8 | 7.1 |
| Rated Heating Capacity (kW) | 3.2 | 4.0 | 5.9 | 7.7 |
| Power Supply (V/Ph/Hz) | 220-240 / 1 / 50 | |||
| Capacity Range Cool/Heat (kW) | 0.89-3.70 / 0.89-5.00 | 0.89-4.04 / 0.89-6.00 | 0.90-5.50 / 0.90-6.40 | 1.00-8.00 / 1.00-8.50 |
| Rated Power Input Cool/Heat (kW) | 0.600 / 0.743 | 0.895 / 0.990 | 1.460 / 1.675 | 2.150 / 2.100 |
| Running Current (A) | 3.0 / 3.3 | 4.4 / 4.7 | 6.5 / 7.4 | 9.4 / 9.2 |
| EER/COP (W/W) | 4.33 / 4.31 | 3.80 / 4.04 | 3.29 / 3.52 | 3.30 / 3.67 |
| AEER/ACOP | 4.26 / 4.25 | 3.76 / 4.00 | 3.27 / 3.50 | 3.30 / 3.66 |
| Energy Label Grade (Cool) | 4.5 / 4.0 / 4.0 | 4.0 / 3.5 / 4.0 | 3.5 / 3.5 / 3.5 | 4.0 / 4.0 / 4.0 |
| Energy Label Grade (Heat) | 3.0 / 3.0 / 2.5 | 3.0 / 2.5 / 2.0 | 3.0 / 2.0 / 1.5 | 3.0 / 2.5 / 1.5 |
| Indoor Air Flow (Cool) (Max/H/M/L) (L/s) | 200 / 183 / 150 / 92 | 258 / 242 / 217 / 175 | 383 / 283 / 233 / 183 | |
| Indoor Air Flow (Heat) (Max/H/M/L) (L/s) | 208 / 183 / 150 / 108 | 308 / 267 / 225 / 183 | 433 / 333 / 283 / 233 | |
| Indoor Sound Pressure Level Cool (Max/H/M/L/SL) dB(A) | 48 / 42 / 37 / 27 / 19 | 49 / 44 / 39 / 34 / 31 | - / 46 / 41 / 36 / 27 | |
| Indoor Unit Dimensions (HxWxD) (mm) | 308 x 837 x 189 | 345 x 998 x 210 | 360 x 1060 x 265 | |
| Indoor Unit Net Weight (kg) | 9.1 | 11.7 | 16.6 | |
| Compressor | Twin Rotary | |||
| Condenser (Corrosion Protection) | Gold | |||
| Outdoor Sound Pressure Level Cool/Heat dB(A) | 49 / 51 | 53 / 55 | 49 / 52 | |
| Outdoor Sound Power Level dB(A) | 56 | 58 | 61 | 63 |
| Outdoor Unit Dimensions (HxWxD) (mm) | 545 x 770 x 288 | 650 x 870 x 330 | ||
| Outdoor Unit Net Weight (kg) | 35 | 45.7 | ||
| Outdoor Operating Range Cool/Heat (C) | -15 to 48 / -15 to 24 | -15 to 48 / -10 to 24 | -10 to 48 / -10 to 24 | |
| Field Connections | ||||
| Circuit Breaker (A) | 15 | 20 | ||
| Power Supply Cable (No. x mm2) | 3 x 1.0 | 3 x 1.5 | 3 x 2.5 | |
| Power and Communication Cable (No. x mm2) | 4 x 1.0 | |||
| Field Piping | ||||
| Pipe Sizes (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | ||
| Connection Method IDU/ODU | Flared / Flared | |||
| Drain Hose Size IDU/ODU | 20 / 15 | |||
| Min-Max Piping Length (m) | 3 - 20 | 3 - 30 | ||
| Pre-Charge Length (m) | 7.5 | |||
| Max Elevation Difference (m) | 10 | 20 | ||
| Piping Connection Heat Insulation | Both Liquid and Gas Pipes | |||
| Refrigerant Type/Pre-Charge (g) | R32 / 800 | R32 / 1000 | R32 / 1300 | |
| Additional Charge (g/m) | 20 | |||
| Refrigerant Charge Control | Electronic Expansion Valve | |||
| SKU | WS12TWS-INS |
| Brand | LG |
| Shipping Weight | 100.0000kg |
| Colour | White |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Included |
| Unit Size | < 5.9kW |
| Series | Smart Series |
| Type | Split |
| Cooling Capacity (kW) | 3.4 |
| Brand | LG |
| Indoor Weight | 9.1 |
| Outdoor Weight | 35 |
| Refrigerant | R32 |
| Indoor Size | 308x837x189 |
| Outdoor Size | 545x770x288 |
| Heating Capacity (kW) | 4 |
