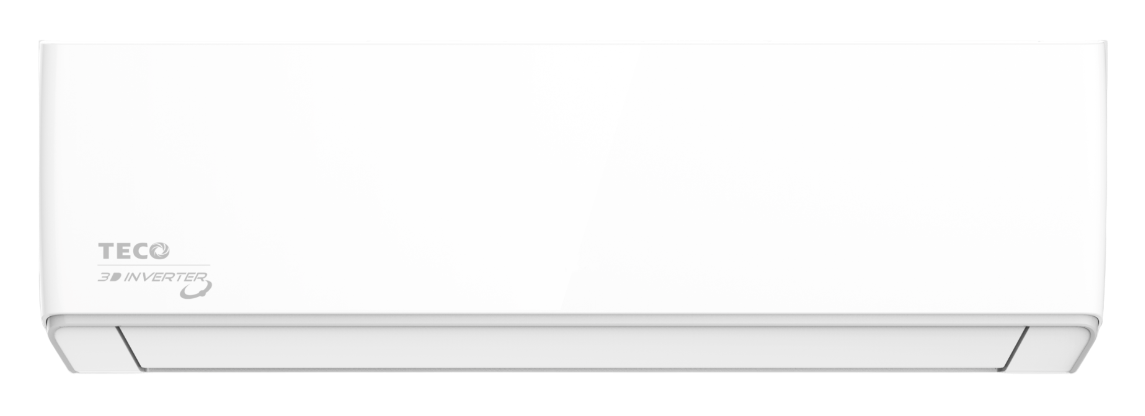

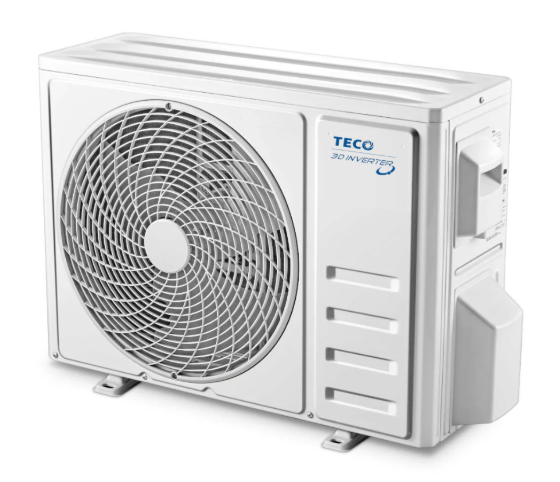

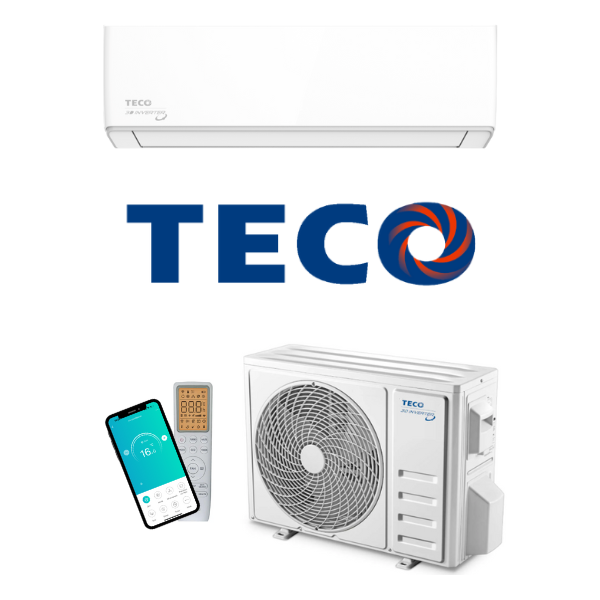

TECO 3.5KW TWS-TSO35H3DVJT PLATINUM 3D - FULLY INSTALLED WALL SPLIT SYSTEM (BUILT-IN WI-FI)
The spectacular Platinum 3D range is the latest and most efficient range of DC inverter split systems that TECO have to offer. Engineered to perform in some of the harshest Australian conditions, the Platinum 3D range is a smart choice when designing for energy reductions at an affordable price. Registered and approved under the latest determination of the Minimum Energy Performance standards, the Platinum 3D range offers high efficiency compared to other TECO models, regardless of the climate zone you reside in. For a tailored quote based on your specific installation needs, contact our Sales Team today!
Features:
*Terms & Conditions:
Acer Services Conditioning pricing represents "Pricing From" as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Wall Mounted Air Conditioner Installation
| System Names | TWS-TSO26H3DVJT | TWS-TSO35H3DVJT | TWS-TSO52H3DVJT | TWS-TSO72H3DVJT | TWS-TSO88H3DVJT |
|---|---|---|---|---|---|
| Indoor Unit | TWS26H3DVJT | TWS35H3DVJT | TWS52H3DVJT | TWS72H3DVJT | TWS88H3DVJT |
| Outdoor Unit | TSO26H3DVJT | TSO35H3DVJT | TSO52H3DVJT | TSO72H3DVJT | TSO88H3DVJT |
| Rated Cooling Capacity (kW) | 2.64 | 3.5 | 5.2 | 7.0 | 8.8 |
| Rated Heating Capacity (kW) | 4.05 | 4.5 | 5.2 | 7.0 | 8.8 |
| Running Current Rated/Min-Max (A) - Cool | 4.3 (1.3 - 6.6) | 3.6 (1.5 - 7.8) | 6.5 (1.5 - 12.0) | 8.8 (1.5 - 14.5) | 10.9 (1.8 - 15.5) |
| Running Current Rated/Min-Max (A) - Heat | 4.6 (1.3 - 7.4) | 4.6 (1.5 - 8.2) | 5.3 (1.5 - 13.0) | 9.1 (1.5 - 15.0) | 9.9 (1.8 - 15.5) |
| Power Input Rated/Min-Max (W) - Cool | 595 (290 - 1450) | 800 (290 - 1400) | 1500 (400 - 1850) | 2010 (350 - 2600) | 2500 (350 - 3100) |
| Power Input Rated/Min-Max (W) - Heat | 985 (290 - 1580) | 1070 (290 - 1990) | 1200 (400 - 1800) | 2090 (350 - 2500) | 2250 (350 - 3340) |
| AEER/ACOP | 4.34 / 4.06 | 4.30 / 4.15 | 3.42 / 4.27 | 3.45 / 3.32 | 3.49 / 3.88 |
| Star Rating (Zone) Hot/Med/Cold - Cool | 9.5 / 5.5 / 6.0 | 5.5 / 4.5 / 4.5 | 3.5 / 3.0 / 3.0 | 3.0 / 3.0 / 3.0 | |
| Star Rating (Zone) Hot/Med/Cold - Heat | 3.5 / 2.5 / 2.0 | 3.0 / 2.5 / 2.0 | 3.0 / 2.5 / 1.5 | 3.0 / 2.5 / 2.0 | |
| Moisture Removal (L/Hr) | 0.8 | 1.1 | 1.8 | 2.4 | 3.2 |
| Indoor Fan Speeds | 8 | ||||
| Indoor Air Flow (Max) Cool/Heat (L/s) | 172 / 172 | 161 / 172 | 305 / 305 | 375 / 375 | |
| Compressor Type | Rotary | ||||
| Indoor/Outdoor Max Sound Power Level (dBA) | 47 / 58 | 48 / 60 | 52 / 62 | 53 / 64 | 54 / 64 |
| Refrigerant Type | R32 | ||||
| Pipe Sizes Liquid/Gas (mm) | 6.35 + 9.52 | 6.35 + 12.7 | 6.35 / 15.9 | ||
| Max Pipe Length (m) | 15 | ||||
| Max Height Difference (m) | 10 | ||||
| Pipe Connection Method | Flare | ||||
| Indoor Unit Dimensions (H x W x D) (mm) | 292 x 811 x 203 | 315 x 1010 x 220 | 360 x 1191 x 258 | ||
| Outdoor Unit Dimension (H x W x D) (mm) | 549 x 810 x 305 | 602 x 863 x 349 | 602 x 927 x 380 | 803 x 978 x 421 | |
| Indoor Unit Weight (kg) | 10 | 10 | 13 | 13.5 | 18 |
| Outdoor Unit Weight (kg) | 22 | 26 | 32 | 37 | 46.5 |
| Ambient Temperature (C) | -15 / 50 | -15 / 52 | |||
| SKU | TWS-TSO35H3DVJT-INS |
| Brand | TECO |
| Shipping Weight | 203.0000kg |
| Colour | White |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Included |
| Unit Size | < 5.9kW |
| Series | Platinum 3D |
| Type | Split |
| Cooling Capacity (kW) | 3.5 |
| Brand | Teco |
| Indoor Weight | 10 |
| Outdoor Weight | 26 |
| Refrigerant | R32 |
| Indoor Size | 292x811x203 |
| Outdoor Size | 549x810x305 |
| Heating Capacity (kW) | 4.5 |
TECO 3.5KW TWS-TSO35H3DVJT PLATINUM 3D - FULLY INSTALLED WALL SPLIT SYSTEM (BUILT-IN WI-FI)
The spectacular Platinum 3D range is the latest and most efficient range of DC inverter split systems that TECO have to offer. Engineered to perform in some of the harshest Australian conditions, the Platinum 3D range is a smart choice when designing for energy reductions at an affordable price. Registered and approved under the latest determination of the Minimum Energy Performance standards, the Platinum 3D range offers high efficiency compared to other TECO models, regardless of the climate zone you reside in. For a tailored quote based on your specific installation needs, contact our Sales Team today!
Features:
| System Names | TWS-TSO26H3DVJT | TWS-TSO35H3DVJT | TWS-TSO52H3DVJT | TWS-TSO72H3DVJT | TWS-TSO88H3DVJT |
|---|---|---|---|---|---|
| Indoor Unit | TWS26H3DVJT | TWS35H3DVJT | TWS52H3DVJT | TWS72H3DVJT | TWS88H3DVJT |
| Outdoor Unit | TSO26H3DVJT | TSO35H3DVJT | TSO52H3DVJT | TSO72H3DVJT | TSO88H3DVJT |
| Rated Cooling Capacity (kW) | 2.64 | 3.5 | 5.2 | 7.0 | 8.8 |
| Rated Heating Capacity (kW) | 4.05 | 4.5 | 5.2 | 7.0 | 8.8 |
| Running Current Rated/Min-Max (A) - Cool | 4.3 (1.3 - 6.6) | 3.6 (1.5 - 7.8) | 6.5 (1.5 - 12.0) | 8.8 (1.5 - 14.5) | 10.9 (1.8 - 15.5) |
| Running Current Rated/Min-Max (A) - Heat | 4.6 (1.3 - 7.4) | 4.6 (1.5 - 8.2) | 5.3 (1.5 - 13.0) | 9.1 (1.5 - 15.0) | 9.9 (1.8 - 15.5) |
| Power Input Rated/Min-Max (W) - Cool | 595 (290 - 1450) | 800 (290 - 1400) | 1500 (400 - 1850) | 2010 (350 - 2600) | 2500 (350 - 3100) |
| Power Input Rated/Min-Max (W) - Heat | 985 (290 - 1580) | 1070 (290 - 1990) | 1200 (400 - 1800) | 2090 (350 - 2500) | 2250 (350 - 3340) |
| AEER/ACOP | 4.34 / 4.06 | 4.30 / 4.15 | 3.42 / 4.27 | 3.45 / 3.32 | 3.49 / 3.88 |
| Star Rating (Zone) Hot/Med/Cold - Cool | 9.5 / 5.5 / 6.0 | 5.5 / 4.5 / 4.5 | 3.5 / 3.0 / 3.0 | 3.0 / 3.0 / 3.0 | |
| Star Rating (Zone) Hot/Med/Cold - Heat | 3.5 / 2.5 / 2.0 | 3.0 / 2.5 / 2.0 | 3.0 / 2.5 / 1.5 | 3.0 / 2.5 / 2.0 | |
| Moisture Removal (L/Hr) | 0.8 | 1.1 | 1.8 | 2.4 | 3.2 |
| Indoor Fan Speeds | 8 | ||||
| Indoor Air Flow (Max) Cool/Heat (L/s) | 172 / 172 | 161 / 172 | 305 / 305 | 375 / 375 | |
| Compressor Type | Rotary | ||||
| Indoor/Outdoor Max Sound Power Level (dBA) | 47 / 58 | 48 / 60 | 52 / 62 | 53 / 64 | 54 / 64 |
| Refrigerant Type | R32 | ||||
| Pipe Sizes Liquid/Gas (mm) | 6.35 + 9.52 | 6.35 + 12.7 | 6.35 / 15.9 | ||
| Max Pipe Length (m) | 15 | ||||
| Max Height Difference (m) | 10 | ||||
| Pipe Connection Method | Flare | ||||
| Indoor Unit Dimensions (H x W x D) (mm) | 292 x 811 x 203 | 315 x 1010 x 220 | 360 x 1191 x 258 | ||
| Outdoor Unit Dimension (H x W x D) (mm) | 549 x 810 x 305 | 602 x 863 x 349 | 602 x 927 x 380 | 803 x 978 x 421 | |
| Indoor Unit Weight (kg) | 10 | 10 | 13 | 13.5 | 18 |
| Outdoor Unit Weight (kg) | 22 | 26 | 32 | 37 | 46.5 |
| Ambient Temperature (C) | -15 / 50 | -15 / 52 | |||
| SKU | TWS-TSO35H3DVJT-INS |
| Brand | TECO |
| Shipping Weight | 203.0000kg |
*Terms & Conditions:
Acer Services Conditioning pricing represents "Pricing From" as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Wall Mounted Air Conditioner Installation
