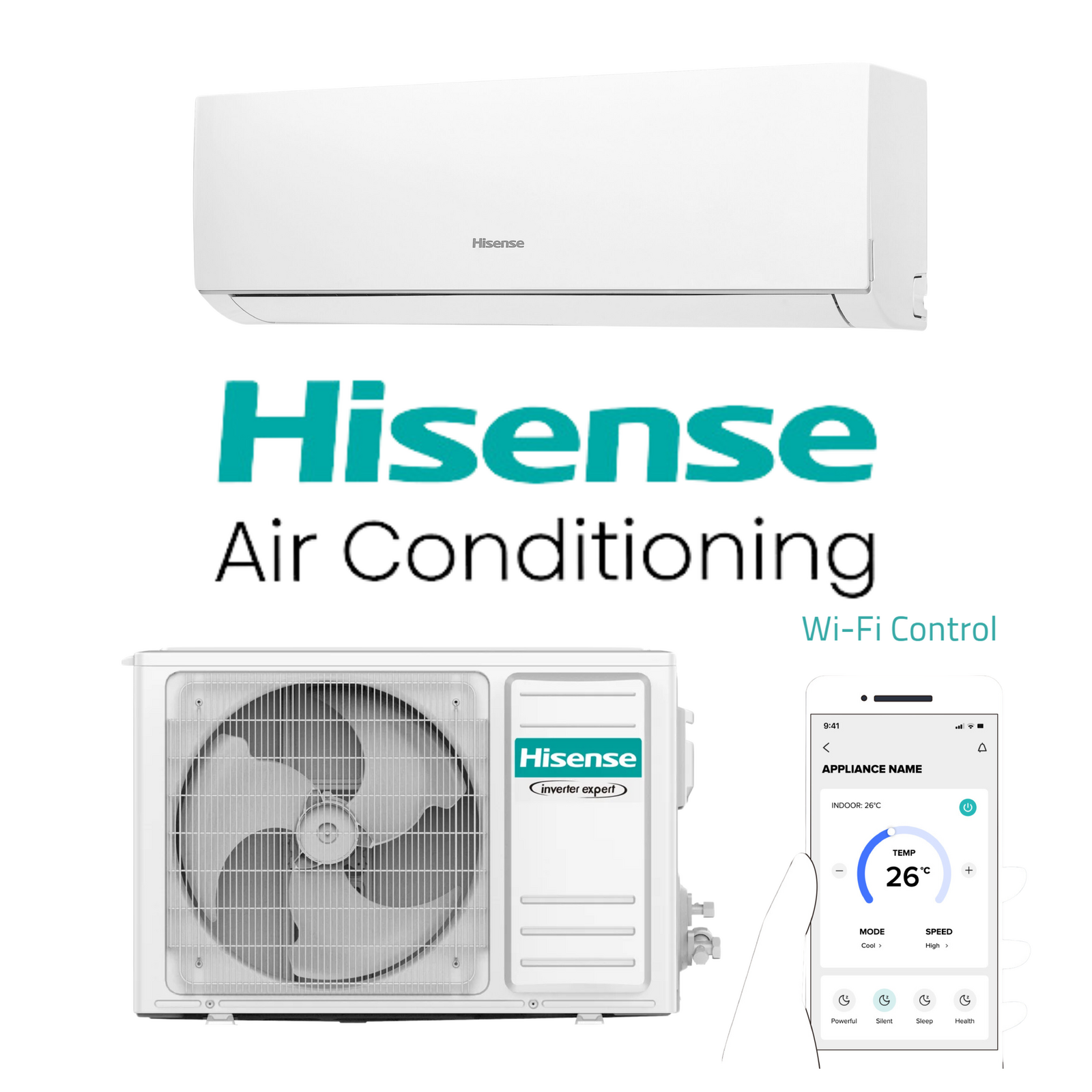

HISENSE 7.1KW HAWJ24KRP-SET J SERIES - FULLY INSTALLED WALL SPLIT SYSTEM (BUILT-IN WI-FI)
For a tailored quote based on your specific installation needs, contact our Sales Team today!
Features:
*Terms & Conditions:
Acer Services Conditioning pricing represents "Pricing From" as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Wall Mounted Air Conditioner Installation
| System Names | HAWJ9KR-SET | HAWJ12KR-SET | HAWJ18KR-SET | HAWJ24KR-SET | HAWJ28KR-SET |
|---|---|---|---|---|---|
| Indoor Units | HAWJ9KR-I | HAWJ12KR-I | HAWJ18KR-I | HAWJ24KRP-I | HAWJ28KR-I |
| Outdoor Units | HAWJ9KR-O | HAWJ12KR-O | HAWJ18KR-O | HAWJ24KRP-O | HAWJ28KR-O |
| Rated Cooling Capacity (kW) | 2.5 | 3.5 | 5.3 | 7.1 | 8.0 |
| Rated Heating Capacity (kW) | 3.1 | 3.8 | 5.4 | 7.2 | 8.0 |
| Rated Input Cool/Heat (W) | 620 / 690 | 900 / 890 | 1590 / 1450 | 2150 / 2100 | 2460 / 2460 |
| Moisture Removal (L/H.r) | 0.9 | 2.0 | 2.5 | ||
| Airflow Distance (m) | 10 | 13 | 14 | ||
| EER/COP (W/W) | 4.03 / 4.49 | 3.89 / 4.27 | 3.33 / 3.72 | 3.30 / 3.43 | 3.25 / 3.25 |
| Outdoor Temperature Range Cool/Heat (C) | -15 to 46 / -15 to 24 | ||||
| Refrigerant Type/kg | R32 / 0.7 | R32 / 0.8 | R32 / 1.15 | R32 / 1.4 | R32 / 1.58 |
| Indoor Unit Noise Level (H/L/Fan Only) (dBA) | 39 / 25 / 19 | 41 / 25 / 19 | 44 / 32 / 19 | 48 / 35 / 19 | 47 / 32 / 19 |
| Outdoor Unit Noise Level (dBA) | 60 | 61 | 65 | 68 | |
| Power Supply | 1 Phase, 50Hz, 220-240V | ||||
| Rated Current (Cool/Heat) (A) | 2.8 / 3.1 | 4.1 / 4.1 | 7.2 / 6.5 | 9.6 / 9.4 | 11 / 11 |
| Expansion Device | Capillary | EEV (Electronic Expansion Valve) | |||
| Evaporator | Copper Tube and Aluminium Finish | ||||
| Condenser | Copper Tube and Aluminium Finish | ||||
| Pipe Sizes (Liquid/Gas) (mm) | 1/4 + 3/8 | 1/4 + 1/2 | 3/8 + 5/8 | ||
| Max Vertical Height Diff between ODU IDU | 20/10 | 25/10 | 30/20 | 40/20 | |
| Pre-Charged Length (m) | 10 | 5 | |||
| Indoor Net Dimensions (HxWxD) (mm) | 270 x 815 x 212 | 315 x 915 x 235 | 315 x 1085 x 235 | ||
| Outdoor Net Dimensions (HxWxD) (mm) | 540 x 780 x 260 | 585 x 810 x 280 | 650 x 860 x 310 | 750 x 900 x 340 | |
| Indoor Package Dimensions (HxWxD) (mm) | 335 x 870 x 265 | 390 x 1000 x 315 | 390 x 1170 x 315 | ||
| Outdoor Package Dimensions (HxWxD) (mm) | 600 x 910 x 360 | 630 x 940 x 385 | 720 x 995 x 420 | 820 x 1060 x 450 | |
| Indoor Weight (Net/Gross) (kg) | 8.5 / 11 | 12.5 / 14.5 | 13.5 / 16 | 13 / 16 | |
| Outdoor Weight (Net/Gross) (kg) | 25.5 / 28 | 28 / 30 | 34 / 37 | 43.5 / 47.5 | 52 / 56 |
| SKU | HAWJ24KRP-Set-INS |
| Brand | Hisense |
| Shipping Weight | 199.0000kg |
| Colour | White |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Included |
| Unit Size | 6 - 10.9kW |
| Series | J Series |
| Type | Split |
| Cooling Capacity (kW) | 7.1 |
| Brand | Hisense |
| Indoor Weight | 13.5 |
| Outdoor Weight | 43.5 |
| Refrigerant | R32 |
| Indoor Size | 315x1085x235 |
| Outdoor Size | 650x860x310 |
| Heating Capacity (kW) | 7.2 |
HISENSE 7.1KW HAWJ24KRP-SET J SERIES - FULLY INSTALLED WALL SPLIT SYSTEM (BUILT-IN WI-FI)
For a tailored quote based on your specific installation needs, contact our Sales Team today!
Features:
| System Names | HAWJ9KR-SET | HAWJ12KR-SET | HAWJ18KR-SET | HAWJ24KR-SET | HAWJ28KR-SET |
|---|---|---|---|---|---|
| Indoor Units | HAWJ9KR-I | HAWJ12KR-I | HAWJ18KR-I | HAWJ24KRP-I | HAWJ28KR-I |
| Outdoor Units | HAWJ9KR-O | HAWJ12KR-O | HAWJ18KR-O | HAWJ24KRP-O | HAWJ28KR-O |
| Rated Cooling Capacity (kW) | 2.5 | 3.5 | 5.3 | 7.1 | 8.0 |
| Rated Heating Capacity (kW) | 3.1 | 3.8 | 5.4 | 7.2 | 8.0 |
| Rated Input Cool/Heat (W) | 620 / 690 | 900 / 890 | 1590 / 1450 | 2150 / 2100 | 2460 / 2460 |
| Moisture Removal (L/H.r) | 0.9 | 2.0 | 2.5 | ||
| Airflow Distance (m) | 10 | 13 | 14 | ||
| EER/COP (W/W) | 4.03 / 4.49 | 3.89 / 4.27 | 3.33 / 3.72 | 3.30 / 3.43 | 3.25 / 3.25 |
| Outdoor Temperature Range Cool/Heat (C) | -15 to 46 / -15 to 24 | ||||
| Refrigerant Type/kg | R32 / 0.7 | R32 / 0.8 | R32 / 1.15 | R32 / 1.4 | R32 / 1.58 |
| Indoor Unit Noise Level (H/L/Fan Only) (dBA) | 39 / 25 / 19 | 41 / 25 / 19 | 44 / 32 / 19 | 48 / 35 / 19 | 47 / 32 / 19 |
| Outdoor Unit Noise Level (dBA) | 60 | 61 | 65 | 68 | |
| Power Supply | 1 Phase, 50Hz, 220-240V | ||||
| Rated Current (Cool/Heat) (A) | 2.8 / 3.1 | 4.1 / 4.1 | 7.2 / 6.5 | 9.6 / 9.4 | 11 / 11 |
| Expansion Device | Capillary | EEV (Electronic Expansion Valve) | |||
| Evaporator | Copper Tube and Aluminium Finish | ||||
| Condenser | Copper Tube and Aluminium Finish | ||||
| Pipe Sizes (Liquid/Gas) (mm) | 1/4 + 3/8 | 1/4 + 1/2 | 3/8 + 5/8 | ||
| Max Vertical Height Diff between ODU IDU | 20/10 | 25/10 | 30/20 | 40/20 | |
| Pre-Charged Length (m) | 10 | 5 | |||
| Indoor Net Dimensions (HxWxD) (mm) | 270 x 815 x 212 | 315 x 915 x 235 | 315 x 1085 x 235 | ||
| Outdoor Net Dimensions (HxWxD) (mm) | 540 x 780 x 260 | 585 x 810 x 280 | 650 x 860 x 310 | 750 x 900 x 340 | |
| Indoor Package Dimensions (HxWxD) (mm) | 335 x 870 x 265 | 390 x 1000 x 315 | 390 x 1170 x 315 | ||
| Outdoor Package Dimensions (HxWxD) (mm) | 600 x 910 x 360 | 630 x 940 x 385 | 720 x 995 x 420 | 820 x 1060 x 450 | |
| Indoor Weight (Net/Gross) (kg) | 8.5 / 11 | 12.5 / 14.5 | 13.5 / 16 | 13 / 16 | |
| Outdoor Weight (Net/Gross) (kg) | 25.5 / 28 | 28 / 30 | 34 / 37 | 43.5 / 47.5 | 52 / 56 |
| SKU | HAWJ24KRP-Set-INS |
| Brand | Hisense |
| Shipping Weight | 199.0000kg |
*Terms & Conditions:
Acer Services Conditioning pricing represents "Pricing From" as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Wall Mounted Air Conditioner Installation
