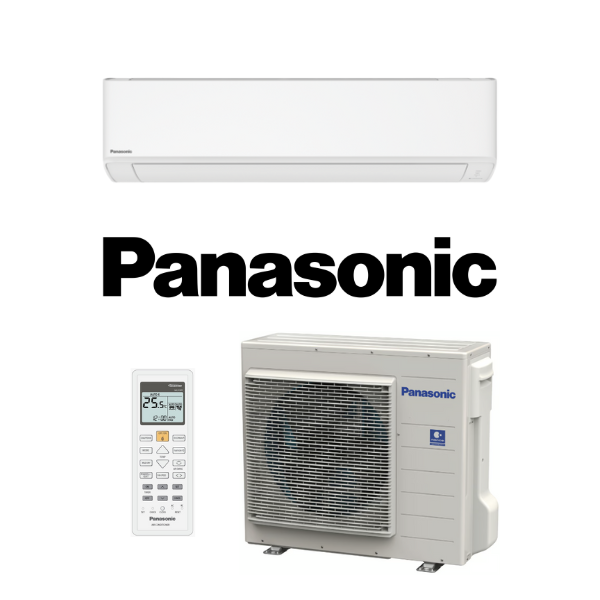

PANASONIC 8.0KW CSCU-RZ80YKR RZ SERIES - FULLY INSTALLED WALL SPLIT SYSTEM (OPTIONAL WI-FI ADAPTOR)
Panasonic Standard Reverse Cycle Inverter RZ Series (AKR) features an anti-bacterial filter to ensure clean air is delivered throughout the space. POWERFUL Mode offers instant cooling with just a push of a button. AEROWINGS directs airflow further across the room. Enjoy cooling comfort while saving energy with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control. Stay connected with Panasonic Comfort Cloud App (optional network adaptor is required) to manage your air conditioners from one mobile device. For a tailored quote based on your specific installation needs, contact our Sales Team today!
Features:
*Terms & Conditions:
Acer Services Conditioning pricing represents "Pricing From" as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Wall Mounted Air Conditioner Installation
| System Name | CS/CU-RZ25AKR | CS/CU-RZ35AKR | CS/CU-RZ42AKR | CS/CU-RZ50AKR | CS/CU-RZ60AKR | CS/CU-RZ71AKR | CS/CU-RZ80YKR | CS/CU-RZ95AKR |
|---|---|---|---|---|---|---|---|---|
| Indoor Unit | CS-RZ25AKR | CS-RZ35AKR | CS-RZ42AKR | CS-RZ50AKR | CS-RZ60AKR | CS-RZ71AKR | CS-RZ80YKR | CS-RZ95AKR |
| Outdoor Unit | CU-RZ25AKR | CU-RZ35AKR | CU-RZ42AKR | CU-RZ50AKR | CU-RZ60AKR | CU-RZ71AKR | CU-RZ80YKR | CU-RZ95AKR |
| Power Supply | 1 Phase, 220 ~ 240V, 50Hz | |||||||
| Cooling Capacity (kW) | 2.5 | 3.5 | 4.2 | 5.0 | 6.0 | 7.1 | 8.0 | 9.5 |
| Heating Capacity (kW) | 3.0 | 4.0 | 5.1 | 6.0 | 6.5 | 8.0 | 9.0 | 10.3 |
| EER/COP | 4.31 / 4.62 | 4.27 / 4.60 | 3.56 / 3.85 | 3.31 / 3.49 | 3.24 / 3.44 | 3.45 / 3.83 | 3.35 / 3.85 | 3.35 / 3.71 |
| Refrigerant Type | R32 | |||||||
| Indoor Airflow (Cooling/Heating) (L/s) | 188 / 200 | 193 / 202 | 193 / 202 | 208 / 228 | 328 / 339 | 352 / 367 | 367 / 377 | 407 / 420 |
| Dehumid (L/h) | 1.50 | 2.00 | 2.40 | 2.80 | 3.30 | 4.10 | 4.70 | 5.00 |
| Max Pipe Length (m) | 20 | 30 | ||||||
| Max Elevation Length (m) | 15 | 20 | ||||||
| Outdoor Operating Range (Cooling / Heating) | -10 ~ 46 / -15 ~ 24 | |||||||
| Indoor Dimensions (HxWxD) (mm) | 290 x 779 x 209 | 295 x 1040 x 244 | 309 x 1212 x 269 | |||||
| Outdoor Dimensions (HxWxD) (mm) | 542 x 780 x 289 | 619 x 824 x 299 | 695 x 875 x 320 | 795 x 875 x 320 | ||||
| Indoor Weight (kg) | 8 | 12 | 13 | 17 | ||||
| Outdoor Weight (kg) | 25 | 30 | 31 | 35 | 45 | 51 | 55 | |
| Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 15.88 | |||||
| SKU | CSCU-RZ80YKR-INS |
| Brand | Panasonic |
| Shipping Weight | 166.0000kg |
| Colour | White |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Optional |
| Unit Size | 6 - 10.9kW |
| Series | RZ Series |
| Type | Split |
| Cooling Capacity (kW) | 8 |
| Brand | Panasonic |
| Indoor Weight | 13 |
| Outdoor Weight | 51 |
| Refrigerant | R32 |
| Indoor Size | 295x1040x244 |
| Outdoor Size | 795x875x320 |
| Heating Capacity (kW) | 9 |
