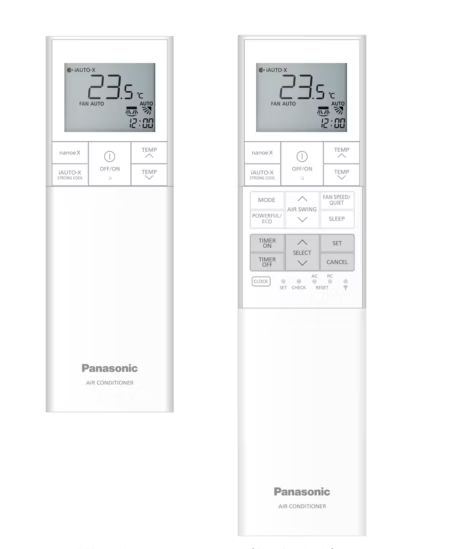

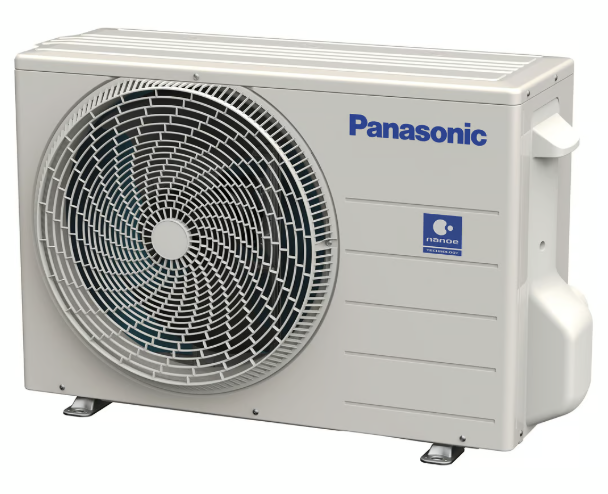

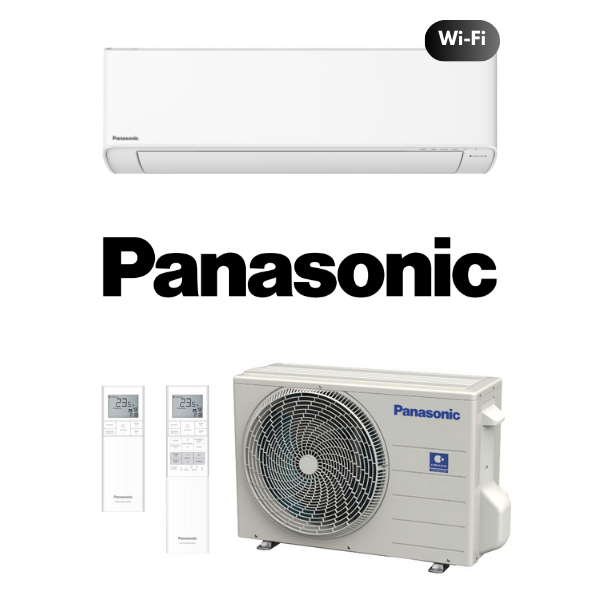

Panasonic CS/CU-HZ35YKR 3.5kW HZ Series Ultra Premium Wall Split System (Built-In Wi-Fi) - Includes Outdoor Unit and Wireless Controller
Panasonic Ultra Premium Reverse Cycle Inverter HZ Series (YKR) offers both cooling and heating systems to efficiently cool and heat your homes for all-year comfort. It is also equipped with nanoe™ X technology which effectively inhibits adhered and airborne pollutants, and reduces odours. Stay connected with built-in Wi-Fi and Panasonic Comfort Cloud App to manage your air conditioners from anywhere, anytime. Enjoy comfortable cooling with AEROWINGS, and advanced humidity control iAUTO-X with Humidity Sensor. Achieve energy efficiency without compromising comfort with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control.
Key Features:
Acer Services pricing represents “Pricing From” as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Pricing is within 20km from our Mansfield QLD office. All other areas to be quoted.
Wall Split Air Conditioner Installation
Ducted Air Conditioner Installation
| System Name | CS/CU-HZ25YKR | CS/CU-HZ35YKR | CS/CU-HZ50YKR | CS/CU-HZ71YKR | CS/CU-HZ80YKR |
|---|---|---|---|---|---|
| Indoor Unit | CS-HZ25YKR | CS-HZ35YKR | CS-HZ50YKR | CS-HZ71YKR | CS-HZ80YKR |
| Outdoor Unit | CU-HZ25YKR | CU-HZ35YKR | CU-HZ50YKR | CU-HZ71YKR | CU-HZ80YKR |
| Power Supply | 1 Phase, 220 ~ 240V, 50Hz | ||||
| Cooling Capacity (kW) | 2.5 | 3.5 | 5.0 | 7.1 | 8.0 |
| Heating Capacity (kW) | 3.2 | 4.1 | 6.0 | 8.0 | 9.0 |
| EER/COP | 5.10 / 5.16 | 4.49 / 4.71 | 4.07 / 4.48 | 3.68 / 4.26 | 3.35 / 3.85 |
| Refrigerant Type | R32 | ||||
| Indoor Airflow (Cooling / Heating) (L/s) | 208 / 222 | 232 / 250 | 328 / 332 | 352 / 367 | 367 / 377 |
| Dehumid (L/h) | 1.50 | 2.00 | 2.80 | 4.10 | 4.70 |
| Max Pipe Length (m) | 20 | 30 | |||
| Max Elevation Length (m) | 15 | 20 | |||
| Outdoor Operating Range (Cooling / Heating) | -10 ~ 46 / -15 ~ 24 | ||||
| Indoor Dimensions (HxWxD) (mm) | 295 x 870 x 229 | 295 x 1040 x 244 | |||
| Outdoor Dimensions (HxWxD) (mm) | 542 x 780 x 289 | 619 x 824 x 299 | 795 x 875 x 320 | ||
| Indoor Weight (kg) | 10 | 12 | 13 | ||
| Outdoor Weight (kg) | 26 | 30 | 35 | 51 | |
| Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 15.88 | ||
| SKU | CSCU-HZ35YKR-INS |
| Brand | Panasonic |
| Shipping Weight | 40.0000kg |
| Shipping Cubic | 0.180951000m3 |
| Colour | White |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Included |
| Unit Size | < 5.9kW |
| Series | H Series |
| Type | Split |
| Cooling Capacity (kW) | 3.5 |
| Brand | Panasonic |
| Indoor Weight | 10 |
| Outdoor Weight | 30 |
| Refrigerant | R32 |
| Indoor Size | 295x870x229 |
| Outdoor Size | 542x780x289 |
| Heating Capacity (kW) | 4.1 |
Panasonic CS/CU-HZ35YKR 3.5kW HZ Series Ultra Premium Wall Split System (Built-In Wi-Fi) - Includes Outdoor Unit and Wireless Controller
Panasonic Ultra Premium Reverse Cycle Inverter HZ Series (YKR) offers both cooling and heating systems to efficiently cool and heat your homes for all-year comfort. It is also equipped with nanoe™ X technology which effectively inhibits adhered and airborne pollutants, and reduces odours. Stay connected with built-in Wi-Fi and Panasonic Comfort Cloud App to manage your air conditioners from anywhere, anytime. Enjoy comfortable cooling with AEROWINGS, and advanced humidity control iAUTO-X with Humidity Sensor. Achieve energy efficiency without compromising comfort with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control.
Key Features:
| System Name | CS/CU-HZ25YKR | CS/CU-HZ35YKR | CS/CU-HZ50YKR | CS/CU-HZ71YKR | CS/CU-HZ80YKR |
|---|---|---|---|---|---|
| Indoor Unit | CS-HZ25YKR | CS-HZ35YKR | CS-HZ50YKR | CS-HZ71YKR | CS-HZ80YKR |
| Outdoor Unit | CU-HZ25YKR | CU-HZ35YKR | CU-HZ50YKR | CU-HZ71YKR | CU-HZ80YKR |
| Power Supply | 1 Phase, 220 ~ 240V, 50Hz | ||||
| Cooling Capacity (kW) | 2.5 | 3.5 | 5.0 | 7.1 | 8.0 |
| Heating Capacity (kW) | 3.2 | 4.1 | 6.0 | 8.0 | 9.0 |
| EER/COP | 5.10 / 5.16 | 4.49 / 4.71 | 4.07 / 4.48 | 3.68 / 4.26 | 3.35 / 3.85 |
| Refrigerant Type | R32 | ||||
| Indoor Airflow (Cooling / Heating) (L/s) | 208 / 222 | 232 / 250 | 328 / 332 | 352 / 367 | 367 / 377 |
| Dehumid (L/h) | 1.50 | 2.00 | 2.80 | 4.10 | 4.70 |
| Max Pipe Length (m) | 20 | 30 | |||
| Max Elevation Length (m) | 15 | 20 | |||
| Outdoor Operating Range (Cooling / Heating) | -10 ~ 46 / -15 ~ 24 | ||||
| Indoor Dimensions (HxWxD) (mm) | 295 x 870 x 229 | 295 x 1040 x 244 | |||
| Outdoor Dimensions (HxWxD) (mm) | 542 x 780 x 289 | 619 x 824 x 299 | 795 x 875 x 320 | ||
| Indoor Weight (kg) | 10 | 12 | 13 | ||
| Outdoor Weight (kg) | 26 | 30 | 35 | 51 | |
| Pipe Sizes (mm) (Liquid/Gas) | 6.35 / 9.52 | 6.35 / 12.7 | 6.35 / 15.88 | ||
| SKU | CSCU-HZ35YKR-INS |
| Brand | Panasonic |
| Shipping Weight | 40.0000kg |
| Shipping Cubic | 0.180951000m3 |
