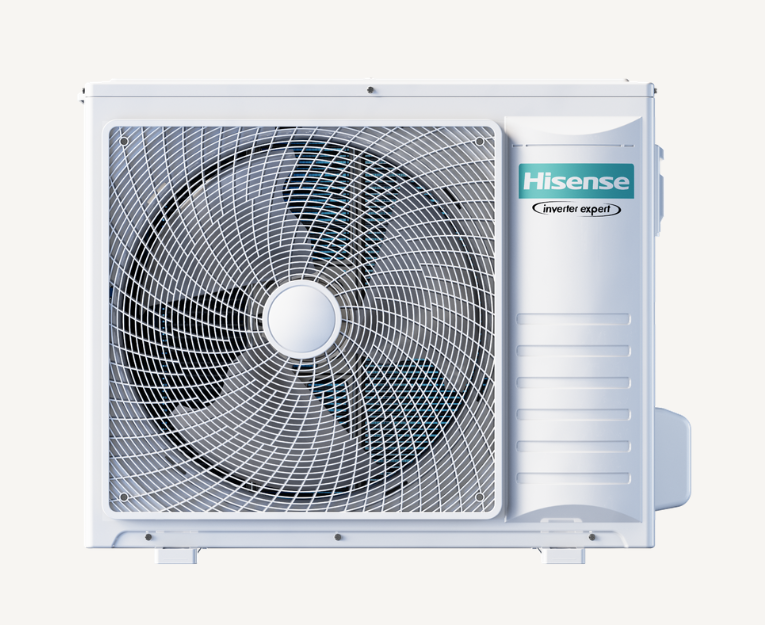

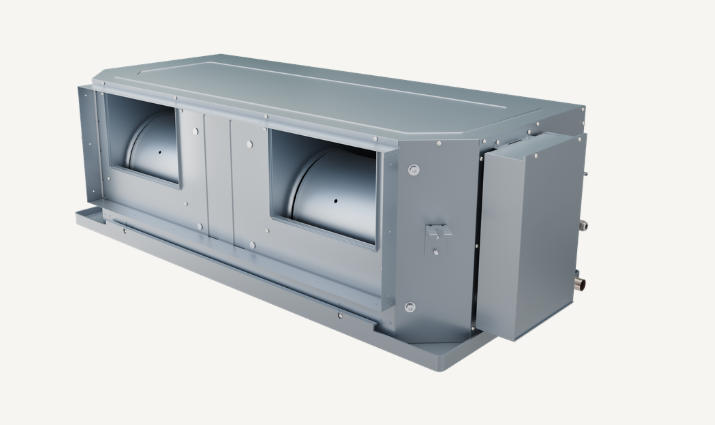

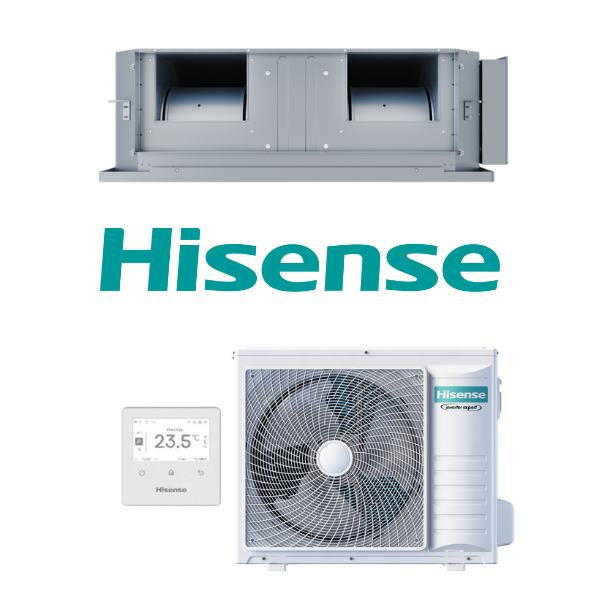

Hisense AUD-100UXHT-SET 10.0kW AirQ Compact Ducted Single Phase System - Includes Programmable Zone Controller and Outdoor Unit AUW-100U4RK1
Acer Services pricing represents “Pricing From” as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Pricing is within 20km from our Mansfield QLD office. All other areas to be quoted.
Wall Split Air Conditioner Installation
Ducted Air Conditioner Installation
| System | AUD-85UXHT-SET | AUD-100UXHT-SET | AUD-125UXHT-SET |
|---|---|---|---|
| Indoor Unit | AUD-85UX4RTH1 | AUD-100UX4RTH1 | AUD-125UX4RTH1 |
| Outdoor Unit | AUW-85U4RK1 | AUW-100U4RK1 | AUW-125U4RH1 |
| Rated Cooling Capacity (kW) | 8.5 | 10.0 | 12.5 |
| Rated Heating Capacity (kW) | 10.0 | 11.0 | 14.0 |
| Rated Input Power Cool/Heat (kW) | 2.66 / 3.03 | 3.13 / 3.33 | 3.98 / 4.24 |
| Rated Input Current Cool/Heat (A) | 11.9 / 13.6 | 14.0 / 14.9 | 17.7 / 18.8 |
| Power Supply | 1 Phase, 220-240V, 50Hz | ||
| EER / COP | 3.20 / 3.30 | 3.09 / 4.30 | |
| Airflow (H) (L/s) | 750 | 875 | |
| External Static Pressure (Pa) | 200 | ||
| Indoor Sound Pressure Lvl @1.5m (H/M/L) dBA | 54 / 48 / 45 | 55 / 49 / 46 | |
| Indoor Unit Net Dimensions HxWxD (mm) | 398 x 1256 x 500 | ||
| Indoor Unit Shipping Dimensions HxWxD (mm) | 420 x 1331 x 650 | ||
| Outdoor Unit Net Dimensions HxWxD (mm) | 750 x 900 x 340 | 835 x 975 x 360 | |
| Outdoor Unit Shipping Dimensions HxWxD (mm) | 820 x 1060 x 450 | 960 x 1045 x 460 | |
| Indoor Unit Net Weight (kg) | 43.5 | ||
| Outdoor Unit Net Weight (kg) | 57.5 | 73 | |
| Refrigerant Type | R32 | ||
| Pipe Sizes (Liquid/Gas) (mm) | 9.52 / 15.88 | ||
| Supply Air Opening (mm) HxW | 295 x 962 | ||
| Return Air Opening (mm) HxW | 324 x 962 | ||
| Operating Range Cool/Heat (C) | -10 to 46 / -15 to 24 | -10 to 50 / -15 to 24 | |
| Outdoor Sound Pressure Level @1m (dBA) | 60 | 62 | |
| Outdoor Sound Power Level (dBA) | 67 | 76 | |
| Maximum Pipe Length (m) | 50 | ||
| Maximum Height Drop (m) | 30 | ||
| SKU | AUD-100UXHT-SET-INS |
| Brand | Hisense |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Included |
| Unit Size | 6 - 10.9kW |
| Series | Air Q - Compact w/ Hi Nano |
| Type | Ducted |
| Outdoor Weight | 57.5 |
| Refrigerant | R32 |
| Indoor Size | 398 x 1256 x 500 |
| Outdoor Size | 750 x 900 x 340 |
| Control System | Standard |
| Heating Capacity (kW) | 11 |
| Indoor Weight | 43.5 |
| Brand | Hisense |
| Zones | 2 |
| Outlets | 6 |
| Cooling Capacity (kW) | 10 |
