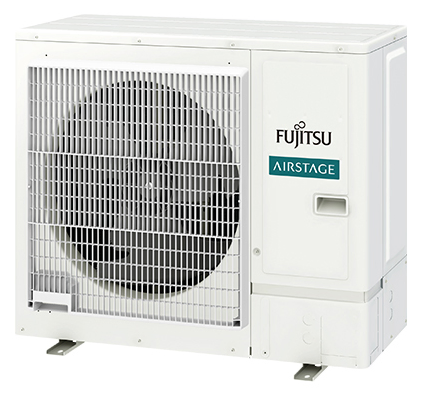

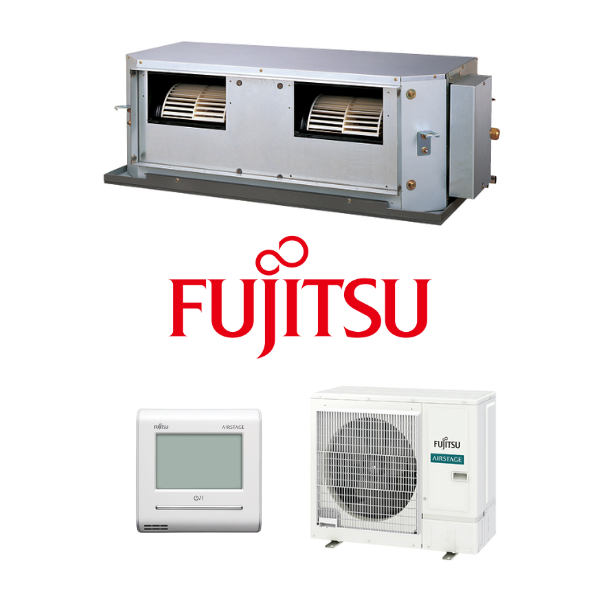

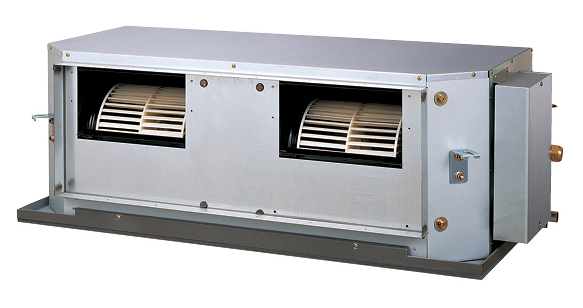

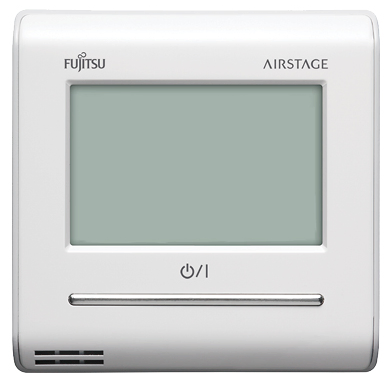

Fujitsu SET-ARTH36KHTA 10.0kW Single Phase High Static Ducted System - Includes AOTH36KBTA Outdoor Unit and Wall Controller
The High Static Single Phase R32 ducted air conditioner range is available in six models, ranging in capacity from 7.1kW to 15.5kW. All models have a maximum guaranteed ambient operating temperature range of up to 50 degrees in cooling mode, have demand response, and are zone system compatible.
Key Features:
Acer Services pricing represents “Pricing From” as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Pricing is within 20km from our Mansfield QLD office. All other areas to be quoted.
Wall Split Air Conditioner Installation
Ducted Air Conditioner Installation
| System Names | SET-ARTH24KHTA | SET-ARTH30KHTA | SET-ARTH36KHTA | SET-ARTH45KHTA | SET-ARTH54KHTA | SET-ARTH60KHTA |
|---|---|---|---|---|---|---|
| Indoor Units | ARTH24KHTA | ARTH30KHTA | ARTH36KHTA | ARTH45KHTA | ARTH54KHTA | ARTH60KHTA |
| Outdoor Units | AOTH24KBTA | AOTH30KBTA | AOTH36KBTA | AOTH45KBTA | AOTH54KBTA | AOTH60KBTA |
| Power Source (V/Ph/Hz) | 230 / 1 / 50 | |||||
| Rated Cooling Capacity (kW) | 7.1 | 8.5 | 10.0 | 12.5 | 14.0 | 15.5 |
| Rated Heating Capacity (kW) | 8.0 | 10.0 | 11.2 | 14.0 | 15.5 | 18.0 |
| EER / COP | 3.32 / 3.90 | 3.62 / 4.26 | 3.25 / 4.00 | 3.29 / 4.09 | 3.02 / 3.52 | 3.14 / 3.68 |
| Outdoor Sound Power (dBA) | 68 | 69 | 70 | 71 | 72 | 71 |
| Indoor dimensions (H x W x D) (mm) | 400 x 1050 x 500 | 425 x 1250 x 490 | ||||
| Outdoor dimension (H x W x D) (mm) | 716 x 820 x 315 | 788 x 940 x 320 | 998 x 940 x 320 | 1418 x 970 x 370 | ||
| Indoor Weight (kg) | 38 | 39 | 53 | |||
| Outdoor Weight (kg) | 42 | 52 | 67 | 95 | ||
| Pipe Sizes (Liquid/Gas) (mm) | 6.35 / 12.7 | 9.52 / 15.88 | ||||
| Pipe Length (m) (Max / Precharged) | 30 (20) | 50 (30) | ||||
| Max Height Difference (m) | 25 | 30 | ||||
| Operation Range Cooling (Min to Max CDB) | -10 to 50 | |||||
| Operation Range Heating (Min to Max CDB) | -15 to 24 | |||||
| Refrigerant Type/Amount (g) | R32 / 1250 | R32 / 1900 | R32 / 2700 | R32 / 2550 | ||
| SKU | SET-ARTH36KHTA-INS |
| Brand | Fujitsu |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Optional |
| Unit Size | 6 - 10.9kW |
| Series | High Static |
| Type | Ducted |
| Outdoor Weight | 52 |
| Refrigerant | R32 |
| Indoor Size | 400 x 1050 x 500 |
| Outdoor Size | 788 x 940 x 320 |
| Control System | Standard |
| Heating Capacity (kW) | 11.2 |
| Indoor Weight | 39 |
| Brand | Fujitsu |
| Zones | 2 |
| Outlets | 6 |
| Cooling Capacity (kW) | 10 |
