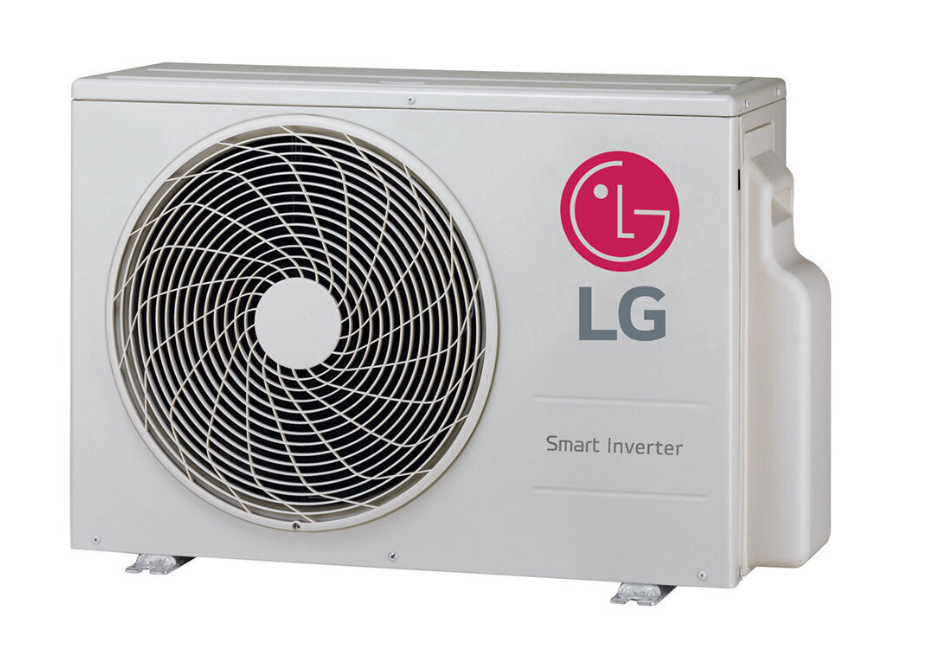

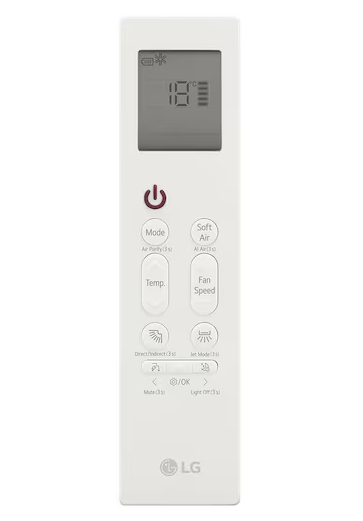

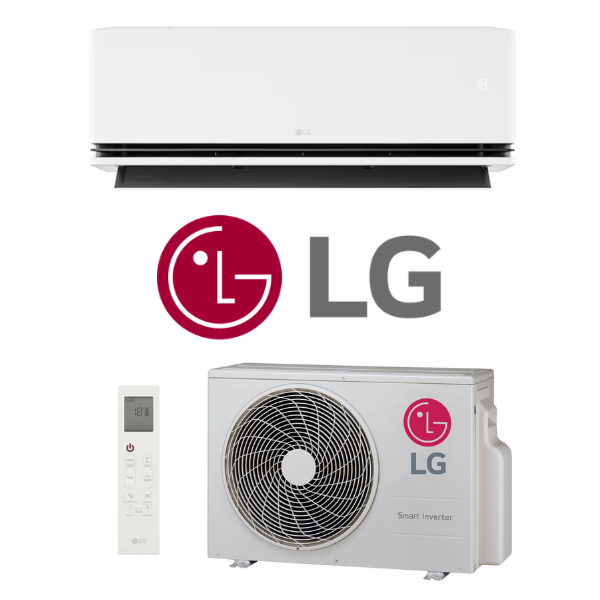

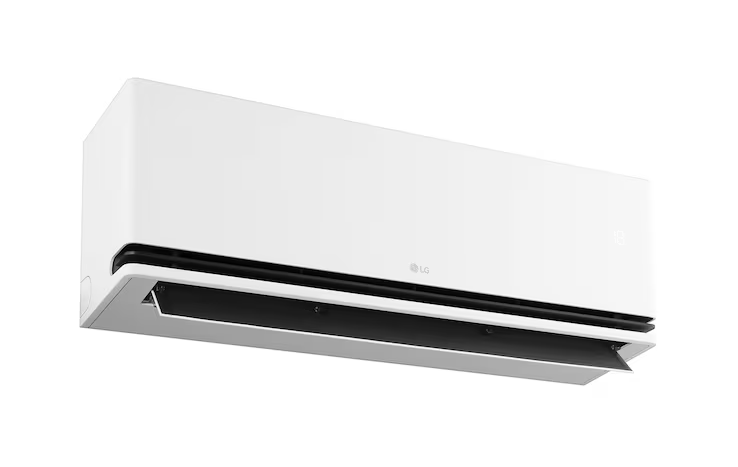

LG DualCool AS24S2S AI Air Standard 7.1kW Wall Split Air Conditioner (Built-In Wi-Fi) - Includes Outdoor Unit AS24S2U and Wireless Controller
The new LG DualCool AI Air Split Systems bring intelligent cooling & heating, carefully refined for you. AI brings comfort designed around you, by setting your location in the LG ThinQtm and AI Air checking you indoor temperature, airflow is adjusted to optimise your comfort.
Key Features:
For ease of installation, energy efficiency and quiet performance, LG air conditioning systems are the smart choice.
Acer Services pricing represents “Pricing From” as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Pricing is within 20km from our Mansfield QLD office. All other areas to be quoted.
Wall Split Air Conditioner Installation
Ducted Air Conditioner Installation
| System | AS09S0S | AS12S0S | AS18S1S | AS24S2S |
|---|---|---|---|---|
| Indoor Unit | AS09S0N | AS12S0N | AS18S1N | AS24S2N |
| Outdoor Unit | AS09S0U | AS12S0U | AS18S1U | AS24S2U |
| Cooling Capacity Rated/Min-Max (kW) | 2.5 (0.89-3.7) | 3.5 (0.89-4.05) | 4.8 (1.2-5.5) | 7.1 (1.85-7.5) |
| Rated Heating Capacity (kW) | 3.0 (0.89-4.6) | 3.7 (0.89-5.0) | 5.2 (1.2-6.4) | 7.7 (2.22-8.5) |
| Power Supply (V/Ph/Hz) | 220-240 / 1 / 50 | |||
| Rated Power Input Cool/Heat (kW) | 0.575 / 0.69 | 0.95 / 0.945 | 1.485 / 1.37 | 2.2 / 2.1 |
| Running Current (A) | 3.0 / 3.4 | 4.5 / 4.4 | 7.1 / 6.3 | 10.0 / 9.5 |
| EER/COP (W/W) | 4.35 / 4.35 | 3.68 / 3.92 | 3.23 / 3.80 | 3.23 / 3.67 |
| AEER/ACOP | 4.32 / 4.33 | 3.67 / 3.90 | 3.22 / 3.79 | 3.22 / 3.66 |
| Energy Label Grade Hot/Mix/Cold (Cool) | 5.0 / 4.5 / 4.5 | 4.0 / 3.5 / 4.0 | 3.5 / 3.5 / 3.5 | 3.5 / 3.5 / 4.0 |
| Energy Label Grade Hot/Mix/Cold (Heat) | 3.0 / 2.5 / 2.5 | 3.0 / 2.5 / 2.0 | 3.0 / 2.5 / 2.0 | 2.5 / 2.0 / 1.5 |
| Indoor Air Flow SH/H/M/L Cool (L/s) | 212 / 172 / 127 / 80 | 212 / 172 / 127 / 80 | 268 / 200 / 160 / 125 | 350 / 284 / 242 / 190 |
| Indoor Air Flow SH/H/M/L Heat (L/s) | 217 / 172 / 127 / 80 | 217 / 172 / 127 / 80 | 270 / 210 / 175 / 125 | 384 / 284 / 242 / 190 |
| IDU Sound Pressure Level SH/H/M/L Cool dBA | - / 43 / 37 / 27 / 20 | - / 43 / 37 / 27 / 20 | - / 44 / 39 / 34 / 31 | - / 49 / 44 / 40 / 30 |
| IDU Sound Pressure Level SH/H/M/L Heat dBA | - / 43 / 37 / 27 | - / 43 / 37 / 27 | - / 44 / 39 / 34 | - / 49 / 44 / 40 |
| Indoor Unit Dimensions (HxWxD) (mm) | 307 x 799 x 235 | 307 x 895 x 235 | 307 x 1050 x 235 | |
| Indoor Unit Net Weight (kg) | 10 | 11.2 | 12.6 | |
| Compressor / Condenser | Twin Rotary / Gold | |||
| Outdoor Sound Pressure Level Cool/Heat dB(A) | 49 / 51 | 53 / 55 | 54 / 57 | |
| Outdoor Sound Power Level dB(A) | 56 | 58 | 61 | 63 |
| Outdoor Unit Dimensions (HxWxD) (mm) | 545 x 770 x 288 | 650 x 870 x 330 | ||
| Outdoor Unit Net Weight (kg) | 29.9 | 33 | 44 | |
| Outdoor Operating Range Cool/Heat (C) | -10 to 48 / -15 to 24 | |||
| Field Connections | ||||
| Circuit Breaker (A) | 16 | 20 | 25 | |
| Power Supply Cable (No. x mm2) | 3 x 1.0 | 3 x 2.5 | ||
| Power and Communication Cable | 4 x 1.0mm^2 | |||
| Field Piping | ||||
| Pipe Sizes (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | ||
| Connection Method IDU/ODU | Flared / Flared | |||
| Drain Hose Size IDU/ODU | 21.5 / 16 | |||
| Min/Std/Max Piping Length (m) | 3 / 7.5 / 30 | |||
| Pre-Charge Length (m) | 12.5 | 7.5 | ||
| Max Elevation Difference (m) | 10 | 20 | ||
| Refrigerant Type/Pre-Charge (kg) | R32 / 0.8 | R32 / 1.0 | R32 / 1.3 | |
| Additional Charge (g/m) | 20 | |||
| SKU | AS24S2S-INS |
| Brand | LG |
| Shipping Weight | 56.6000kg |
| Shipping Width | 0.384m |
| Shipping Height | 0.650m |
| Shipping Length | 1.050m |
| Shipping Cubic | 0.262367000m3 |
| Colour | White |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Included |
| Unit Size | 6 - 10.9kW |
| Series | AI Smart Series |
| Type | Split |
| Cooling Capacity (kW) | 7.1 |
| Brand | LG |
| Indoor Weight | 12.6 |
| Outdoor Weight | 44 |
| Refrigerant | R32 |
| Indoor Size | 307x1050x235 |
| Outdoor Size | 650x870x330 |
| Heating Capacity (kW) | 7.7 |
LG DualCool AS24S2S AI Air Standard 7.1kW Wall Split Air Conditioner (Built-In Wi-Fi) - Includes Outdoor Unit AS24S2U and Wireless Controller
The new LG DualCool AI Air Split Systems bring intelligent cooling & heating, carefully refined for you. AI brings comfort designed around you, by setting your location in the LG ThinQtm and AI Air checking you indoor temperature, airflow is adjusted to optimise your comfort.
Key Features:
For ease of installation, energy efficiency and quiet performance, LG air conditioning systems are the smart choice.
| System | AS09S0S | AS12S0S | AS18S1S | AS24S2S |
|---|---|---|---|---|
| Indoor Unit | AS09S0N | AS12S0N | AS18S1N | AS24S2N |
| Outdoor Unit | AS09S0U | AS12S0U | AS18S1U | AS24S2U |
| Cooling Capacity Rated/Min-Max (kW) | 2.5 (0.89-3.7) | 3.5 (0.89-4.05) | 4.8 (1.2-5.5) | 7.1 (1.85-7.5) |
| Rated Heating Capacity (kW) | 3.0 (0.89-4.6) | 3.7 (0.89-5.0) | 5.2 (1.2-6.4) | 7.7 (2.22-8.5) |
| Power Supply (V/Ph/Hz) | 220-240 / 1 / 50 | |||
| Rated Power Input Cool/Heat (kW) | 0.575 / 0.69 | 0.95 / 0.945 | 1.485 / 1.37 | 2.2 / 2.1 |
| Running Current (A) | 3.0 / 3.4 | 4.5 / 4.4 | 7.1 / 6.3 | 10.0 / 9.5 |
| EER/COP (W/W) | 4.35 / 4.35 | 3.68 / 3.92 | 3.23 / 3.80 | 3.23 / 3.67 |
| AEER/ACOP | 4.32 / 4.33 | 3.67 / 3.90 | 3.22 / 3.79 | 3.22 / 3.66 |
| Energy Label Grade Hot/Mix/Cold (Cool) | 5.0 / 4.5 / 4.5 | 4.0 / 3.5 / 4.0 | 3.5 / 3.5 / 3.5 | 3.5 / 3.5 / 4.0 |
| Energy Label Grade Hot/Mix/Cold (Heat) | 3.0 / 2.5 / 2.5 | 3.0 / 2.5 / 2.0 | 3.0 / 2.5 / 2.0 | 2.5 / 2.0 / 1.5 |
| Indoor Air Flow SH/H/M/L Cool (L/s) | 212 / 172 / 127 / 80 | 212 / 172 / 127 / 80 | 268 / 200 / 160 / 125 | 350 / 284 / 242 / 190 |
| Indoor Air Flow SH/H/M/L Heat (L/s) | 217 / 172 / 127 / 80 | 217 / 172 / 127 / 80 | 270 / 210 / 175 / 125 | 384 / 284 / 242 / 190 |
| IDU Sound Pressure Level SH/H/M/L Cool dBA | - / 43 / 37 / 27 / 20 | - / 43 / 37 / 27 / 20 | - / 44 / 39 / 34 / 31 | - / 49 / 44 / 40 / 30 |
| IDU Sound Pressure Level SH/H/M/L Heat dBA | - / 43 / 37 / 27 | - / 43 / 37 / 27 | - / 44 / 39 / 34 | - / 49 / 44 / 40 |
| Indoor Unit Dimensions (HxWxD) (mm) | 307 x 799 x 235 | 307 x 895 x 235 | 307 x 1050 x 235 | |
| Indoor Unit Net Weight (kg) | 10 | 11.2 | 12.6 | |
| Compressor / Condenser | Twin Rotary / Gold | |||
| Outdoor Sound Pressure Level Cool/Heat dB(A) | 49 / 51 | 53 / 55 | 54 / 57 | |
| Outdoor Sound Power Level dB(A) | 56 | 58 | 61 | 63 |
| Outdoor Unit Dimensions (HxWxD) (mm) | 545 x 770 x 288 | 650 x 870 x 330 | ||
| Outdoor Unit Net Weight (kg) | 29.9 | 33 | 44 | |
| Outdoor Operating Range Cool/Heat (C) | -10 to 48 / -15 to 24 | |||
| Field Connections | ||||
| Circuit Breaker (A) | 16 | 20 | 25 | |
| Power Supply Cable (No. x mm2) | 3 x 1.0 | 3 x 2.5 | ||
| Power and Communication Cable | 4 x 1.0mm^2 | |||
| Field Piping | ||||
| Pipe Sizes (Liquid/Gas) (mm) | 6.35 / 9.52 | 6.35 / 12.7 | ||
| Connection Method IDU/ODU | Flared / Flared | |||
| Drain Hose Size IDU/ODU | 21.5 / 16 | |||
| Min/Std/Max Piping Length (m) | 3 / 7.5 / 30 | |||
| Pre-Charge Length (m) | 12.5 | 7.5 | ||
| Max Elevation Difference (m) | 10 | 20 | ||
| Refrigerant Type/Pre-Charge (kg) | R32 / 0.8 | R32 / 1.0 | R32 / 1.3 | |
| Additional Charge (g/m) | 20 | |||
| SKU | AS24S2S-INS |
| Brand | LG |
| Shipping Weight | 56.6000kg |
| Shipping Width | 0.384m |
| Shipping Height | 0.650m |
| Shipping Length | 1.050m |
| Shipping Cubic | 0.262367000m3 |
