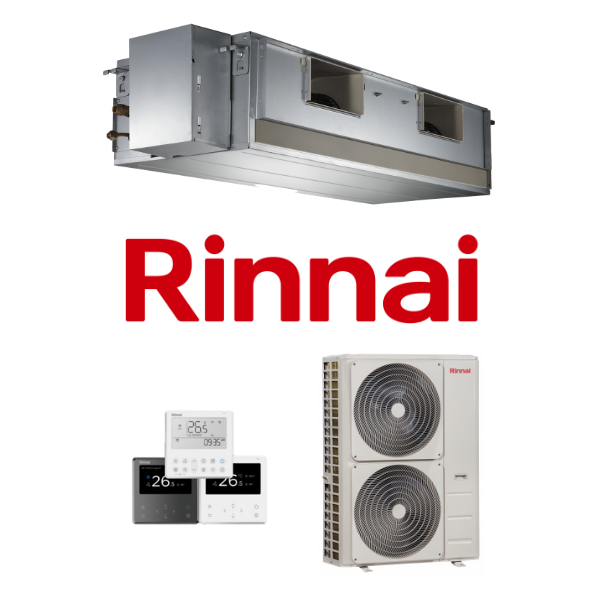

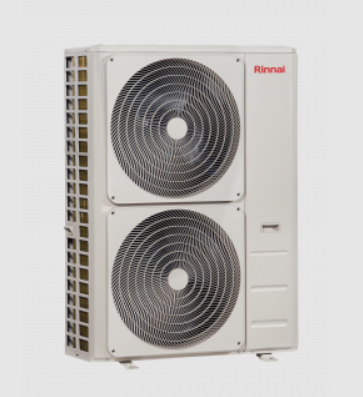

Rinnai DINLR13B1-SET 13.0kW Ducted Single Phase System - Includes Wall Controller and Outdoor Unit DONSR13B1

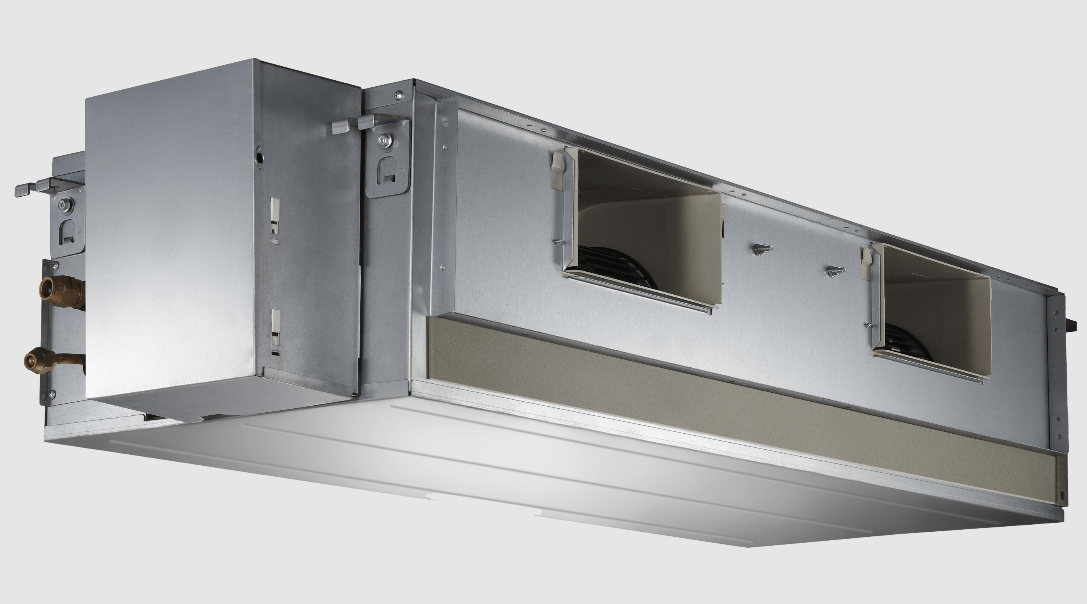

Rinnai’s Ducted Air Conditioning system discreetly delivers powerful home heating and cooling, keeping you comfortable regardless of the extremes outside. Concealed in your roof cavity, the efficient indoor fans & DC compressor quietly operate and the advanced ducted inverter control mechanisms ensure a controlled warm-up and cool down with outstanding energy efficiency ratings.
Enjoy the exceptional benefits of a Reverse Cycle Air Conditioner without the hassle of installing and the sight of multiple indoor units. Condition and filter the air in your whole home, or choose to zone specific areas tailored to individual comfort levels. 3 times more efficient than conventional heating, Rinnai’s Ducted Air Conditioning system features optional Wi-Fi, programmable controller, and slimline design. The smart choice in ducted heating and cooling.
Key Features:
Acer Services pricing represents “Pricing From” as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Pricing is within 20km from our Mansfield QLD office. All other areas to be quoted.
Wall Split Air Conditioner Installation
Ducted Air Conditioner Installation
| System | DINLR07B1-SET | DINLR09B1-SET | DINLR11B1-SET | DINLR13B1-SET | DINLR15B1-SET | DINLR18B1-SET |
|---|---|---|---|---|---|---|
| Indoor Unit | DINLR07B1 | DINLR09B1 | DINLR11B1 | DINLR13B1 | DINLR15B1 | DINLR18B1 |
| Outdoor Unit | DONSR07B1 | DONSR09B1 | DONSR11B1 | DONSR13B1 | DONSR15B1 | DONSR18B1 |
| Rated Cooling Capacity (kW) | 7.0 | 9.0 | 11.0 | 13.0 | 15.0 | 18.0 |
| Rated Heating Capacity (kW) | 7.5 | 10.0 | 11.5 | 13.0 | 14.5 | 18.0 |
| Rated Input Power Cool/Heat (kW) | 2.1 / 1.7 | 2.55 / 2.25 | 3.1 / 2.7 | 3.45 / 3.15 | 4.2 / 3.6 | 5.25 / 4.55 |
| Rated Input Current Cool/Heat (A) | 9.8 / 7.9 | 14.5 / 12.8 | 14.2 / 12.8 | 18.2 / 16.3 | 22.5 / 19.5 | |
| Recommended Circuit Breaker (A) | 20 | 25 | 32 | |||
| Power Supply | 1 Phase, 220-240V, 50Hz | |||||
| EER / COP | 3.4 / 4.3 | 3.5 / 4.4 | 3.4 / 4.2 | 3.6 / 4.1 | 3.3 / 4.0 | 3.2 / 3.9 |
| Indoor Airflow (High/Minimum) (L/s) | 480 / 140 | 625 / 190 | 710 / 190 | 1050 / 250 | 1080 / 410 | |
| Maximum External Static Pressure (Pa) | 160 | 200 | ||||
| Sound Pressure Level @1.4m (Hi/Med/Lo) (dBA) | 38.5 / 35.5 / 32.5 | 45 / 42 / 39.5 | 39 / 37 / 34.5 | 46.5 / 43.5 / 40 | 53 / 49.5 / 45.3 | |
| Indoor Unit Net Dimensions (HxWxD) (mm) | 249 x 1100 x 774 | 249 x 1360 x 774 | 380 x 1200 x 625 | 440 x 1400 x 858 | ||
| Indoor Unit Shipping Dimensions (HxWxD) (mm) | 315 x 1305 x 805 | 320 x 1570 x 805 | 450 x 1485 x 675 | 515 x 1605 x 910 | ||
| Outdoor Unit Net Dimensions (HxWxD) (mm) | 673 x 890 x 342 | 810 x 946 x 410 | 1333 x 952 x 415 | |||
| Outdoor Unit Shipping Dimensions (HxWxD) (mm) | 730 x 995 x 398 | 845 x 1090 x 500 | 1380 x 1095 x 495 | |||
| Indoor Unit Net/Gross Weight (kg) | 32 / 38.5 | 40 / 48 | 53 / 62 | 81 / 92 | ||
| Outdoor Unit Net/Gross Weight (kg) | 45 / 48 | 70 / 75 | 95 / 110 | 96 / 111 | ||
| Refrigerant Type / Charged Volume (kg) | R32 / 1.75 | R32 / 2.6 | R32 / 3.6 | R32 / 4.0 | ||
| Pipe Sizes (Liquid/Gas) (mm) | 9.52 / 15.88 | 9.52 / 19.05 | ||||
| Supply Air Opening (mm) HxW | 175 x 926 | 175 x 1186 | 253 x 1000 | 385 x 1188 | ||
| Return Air Opening (mm) HxW | 228 x 1001 | 228 x 1261 | 334 x 1145 | 385 x 1188 | ||
| Indoor Operating Range Cool/Heat (C) | 17 to 32 / 0 to 30 | |||||
| Outdoor Operating Range Cool/Heat (C) | -15 to 50 / -20 to 24 | |||||
| Outdoor Sound Pressure Level @1m (dBA) | 60 | 62 | 60 | 60.5 | ||
| Outdoor Sound Power Level (dBA) | 65 | 68 | 69.5 | 72 | ||
| Maximum/Minimum Pipe Length (m) | 50 / 3 | 75 / 3 | ||||
| Maximum Vertical Separation (m) | 25 | 30 | ||||
| SKU | DINLR13B1-SET-INS |
| Brand | Rinnai |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Included |
| Unit Size | > 17kW |
| Series | DRCi |
| Type | Ducted |
| Outdoor Weight | 95 |
| Refrigerant | R32 |
| Indoor Size | 380x1200x625 |
| Outdoor Size | 1333x952x415 |
| Control System | Standard |
| Heating Capacity (kW) | 13 |
| Indoor Weight | 53 |
| Brand | Rinnai |
| Zones | 2 |
| Outlets | 8 |
| Cooling Capacity (kW) | 13 |
