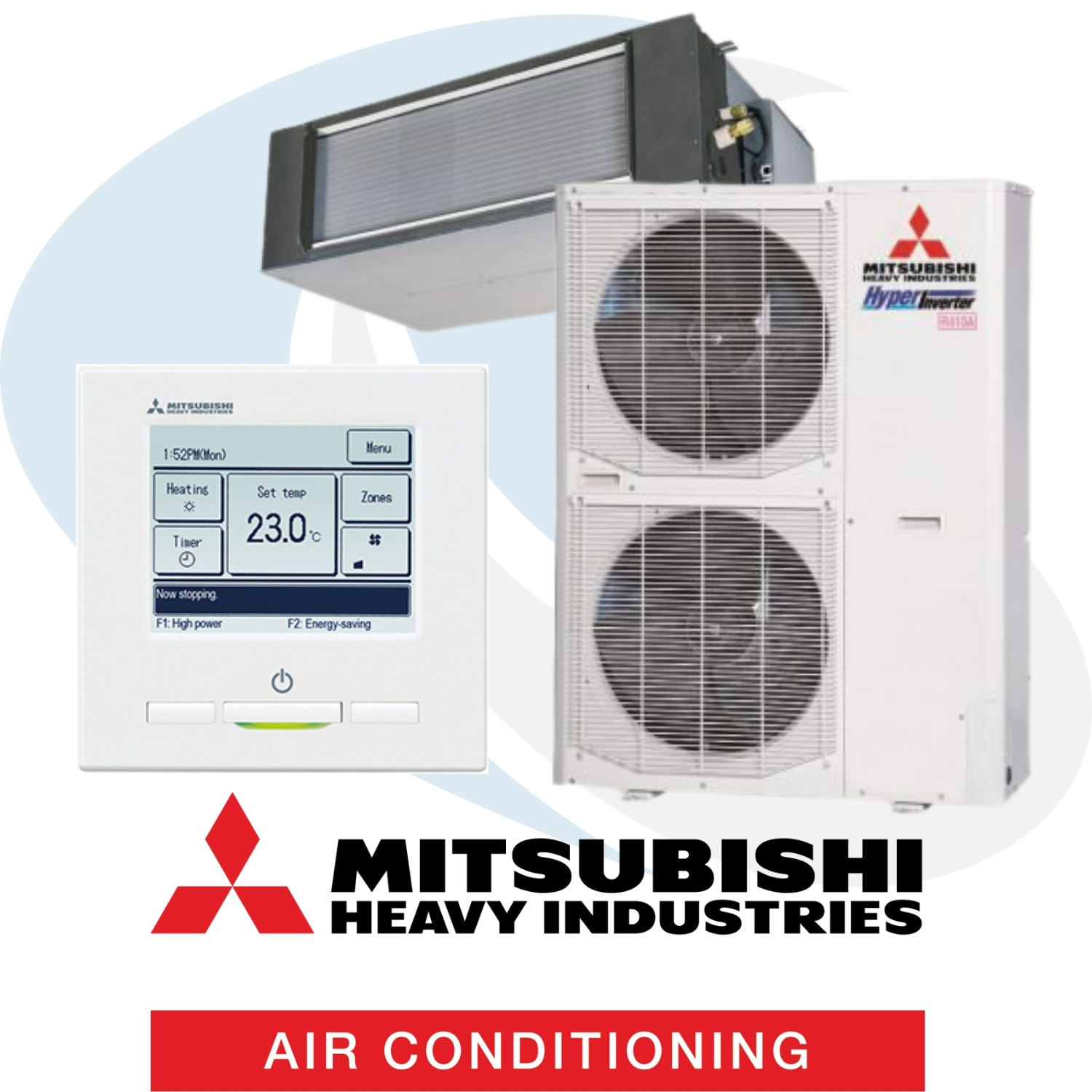

16KW MHI - FULLY INSTALLED DUCTED SYSTEM
*Terms & Conditions Apply
 |
Single Phase model
External Static Pressure control
Self-diagnostics function
Weekly /Sleep timer
600mm built-in drain pump
| ENERGY SAVING | |||||
SET TEMPERATURE AUTO RETURNProgram a preferred set temperature that the unit will return to each time it is switched on. Note: can only be enabled using the RC-EX3 wired controller |
HOME LEAVE OPERATIONThis function ensures that when the room is unoccupied for long periods of time, the unit will maintain a moderate indoor temperature, avoiding extremely hot or cool temperatures and damage. Note: can only be enabled using the RC-EX3 wired controller. |
||||
| AIR FLOW | |||||
AUTOMATIC FAN SPEEDThe unit’s on-board microcomputer continuously monitors the room’s air temperature and adjusts the fan speed accordingly. |
|||||
| CLEAN AIR | |||||
FILTER SIGNAlerts you to when the filter needs to be cleaned. |
OUTSIDE AIR INTAKEDraws in fresh air from outside the building before distributing this within the system, avoiding constant recycling of internal air and ensuring clean and fresh air within your home. |
||||
| COMFORT & CONVENIENCE | |||||
AUTOMATIC OPERATIONAutomatically selects the required heating or cooling function based on the current room conditions and set temperature. |
PEAK-CUT TIMERSet the capacity limit during certain periods of the day, minimising energy consumption during peak billing times, thus reducing operation costs. Note: can only be enabled using the RC-EX3 wired controller |
FUNCTION SWITCHFrom the six available functions on the unit, this function allows you to set two functions to operate automatically. (Note: this is not available when a centralised remote control is connected). Note: can only be enabled using the RC-EX3 wired controller |
|||
HI POWER OPERATIONProvides 15mins of boosted power to quickly heat or cool your home before returning to normal operation. Perfect for when you first turn on it the unit. Note: For FDE, FDT, FDTC, FDUA, and FDUM series can only be enabled using the RC-EX3 wired controller. |
SILENT OPERATIONSet periods of time where the unit will operate with reduced noise levels, perfect for night time and an uninterrupted sleep. |
WEEKLY TIMERSet your unit to turn on and off at specific times for each day of the week to suit your needs. |
|||
SLEEP TIMERSet a pre-determined amount of time between 30 and 240 mins that your unit will operate for before switching off. |
|||||
| MAINTENANCE | |||||
IMPROVED SERVICEABILITYThe fan unit (comprised of impeller and motor) is easily accessible from either the side or bottom of the unit and can be slid out for easy maintenance. |
BUILT-IN DRAIN PUMPThe built-in drain pump allows greater flexibility with installation, offering a perfect solution for applications with limited space. |
SELF-DIAGNOSTICSIn the unlikely event of a fault the internal microcomputer automatically runs a diagnostic of the system. This enables a service agent to quickly isolate and repair any issues. |
|||
*Terms & Conditions:
Acer Services Conditioning pricing represents “Pricing From” as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Ducted Air Conditioner Installation
| CAPACITY | ||
| Cooling | 16 Kw | |
| Heating | 18 Kw | |
| DIMENSIONS | ||
| Indoor | 398x1450x930mm | |
| Outdoor | 1505x970x370mm | |
| SKU | MHI_Ducted_System_16kw |
| Brand | Mitsubishi Heavy Industries |
| Ducted System | 16 Kw |
MHI air conditioners come with a complete 5 year parts and labour warranty for your peace of mind. Some conditions apply. Please refer to warranty T&Cs for more details.
MHIAA provides comprehensive warranties on all our products, guaranteeing repair or replacement on any products that may have developed defects during the manufacturing process.
To ensure that your warranty period remains valid, please ensure that all repairs are carried out by a service agent nominated by MHIAA only.
Each of our products is covered by its own set of warranty conditions. Please refer to our Warranty Terms & Conditions before you submit your Warranty Service Request.
16KW MHI - FULLY INSTALLED DUCTED SYSTEM
*Terms & Conditions Apply
|
MHI air conditioners come with a complete 5 year parts and labour warranty for your peace of mind. Some conditions apply. Please refer to warranty T&Cs for more details.
MHIAA provides comprehensive warranties on all our products, guaranteeing repair or replacement on any products that may have developed defects during the manufacturing process.
To ensure that your warranty period remains valid, please ensure that all repairs are carried out by a service agent nominated by MHIAA only.
Each of our products is covered by its own set of warranty conditions. Please refer to our Warranty Terms & Conditions before you submit your Warranty Service Request.
Single Phase model
External Static Pressure control
Self-diagnostics function
Weekly /Sleep timer
600mm built-in drain pump
| ENERGY SAVING | |||||
SET TEMPERATURE AUTO RETURNProgram a preferred set temperature that the unit will return to each time it is switched on. Note: can only be enabled using the RC-EX3 wired controller |
HOME LEAVE OPERATIONThis function ensures that when the room is unoccupied for long periods of time, the unit will maintain a moderate indoor temperature, avoiding extremely hot or cool temperatures and damage. Note: can only be enabled using the RC-EX3 wired controller. |
||||
| AIR FLOW | |||||
AUTOMATIC FAN SPEEDThe unit’s on-board microcomputer continuously monitors the room’s air temperature and adjusts the fan speed accordingly. |
|||||
| CLEAN AIR | |||||
FILTER SIGNAlerts you to when the filter needs to be cleaned. |
OUTSIDE AIR INTAKEDraws in fresh air from outside the building before distributing this within the system, avoiding constant recycling of internal air and ensuring clean and fresh air within your home. |
||||
| COMFORT & CONVENIENCE | |||||
AUTOMATIC OPERATIONAutomatically selects the required heating or cooling function based on the current room conditions and set temperature. |
PEAK-CUT TIMERSet the capacity limit during certain periods of the day, minimising energy consumption during peak billing times, thus reducing operation costs. Note: can only be enabled using the RC-EX3 wired controller |
FUNCTION SWITCHFrom the six available functions on the unit, this function allows you to set two functions to operate automatically. (Note: this is not available when a centralised remote control is connected). Note: can only be enabled using the RC-EX3 wired controller |
|||
HI POWER OPERATIONProvides 15mins of boosted power to quickly heat or cool your home before returning to normal operation. Perfect for when you first turn on it the unit. Note: For FDE, FDT, FDTC, FDUA, and FDUM series can only be enabled using the RC-EX3 wired controller. |
SILENT OPERATIONSet periods of time where the unit will operate with reduced noise levels, perfect for night time and an uninterrupted sleep. |
WEEKLY TIMERSet your unit to turn on and off at specific times for each day of the week to suit your needs. |
|||
SLEEP TIMERSet a pre-determined amount of time between 30 and 240 mins that your unit will operate for before switching off. |
|||||
| MAINTENANCE | |||||
IMPROVED SERVICEABILITYThe fan unit (comprised of impeller and motor) is easily accessible from either the side or bottom of the unit and can be slid out for easy maintenance. |
BUILT-IN DRAIN PUMPThe built-in drain pump allows greater flexibility with installation, offering a perfect solution for applications with limited space. |
SELF-DIAGNOSTICSIn the unlikely event of a fault the internal microcomputer automatically runs a diagnostic of the system. This enables a service agent to quickly isolate and repair any issues. |
|||
| CAPACITY | ||
| Cooling | 16 Kw | |
| Heating | 18 Kw | |
| DIMENSIONS | ||
| Indoor | 398x1450x930mm | |
| Outdoor | 1505x970x370mm | |
| SKU | MHI_Ducted_System_16kw |
| Brand | Mitsubishi Heavy Industries |
*Terms & Conditions:
Acer Services Conditioning pricing represents “Pricing From” as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Brisbane pricing covers the Brisbane region. All other areas to be quoted.
Ducted Air Conditioner Installation
