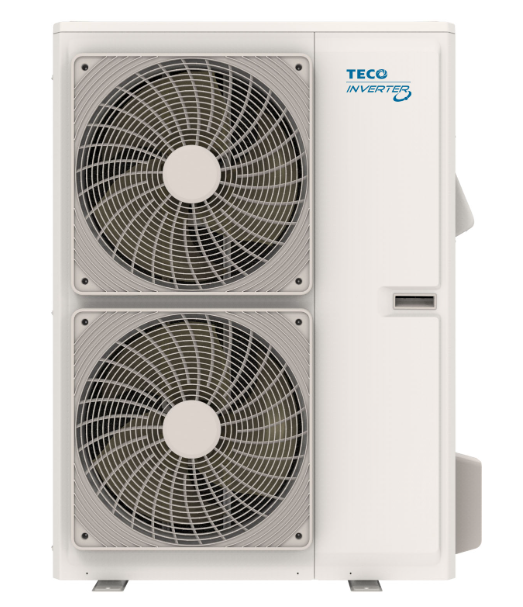

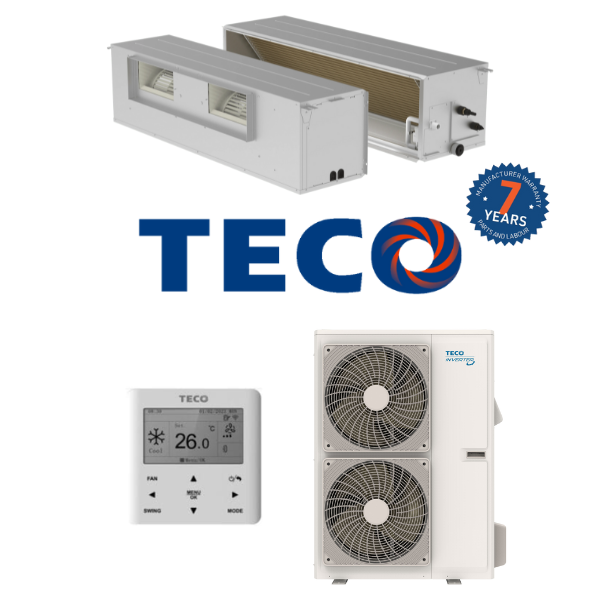

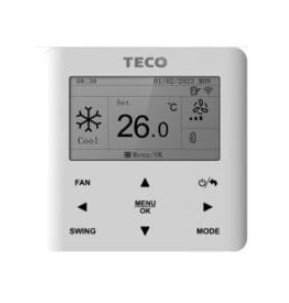

TECO TDS-TSO160HVSWDG 16.0kW Single Phase Ducted Air Conditioner - Includes Outdoor Unit and Wired Wall Controller

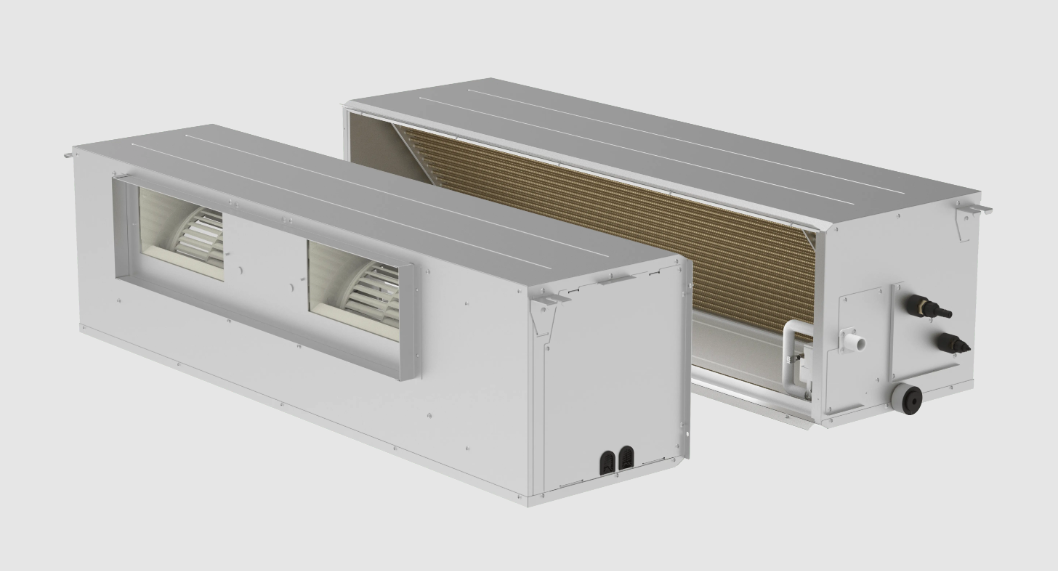

The TECO 16.0kW Ducted System offers high-capacity climate control, making it the ideal solution for large homes and light commercial spaces that demand powerful and efficient airflow. Its innovative splittable indoor unit design ensures easier installation and maintenance, even in complex ceiling configurations, providing unmatched flexibility. With a maximum ESP setting of 200Pa , the system delivers strong and consistent airflow across multiple zones, ensuring optimal comfort throughout your space. The outdoor Condenser coil is protected with a Blackfin coating that offers superior corrosion resistance, while the indoor Evaporator coil benefits from a Goldfin coating that enhances durability by preventing coil degradation over time. An integrated drain pump simplifies installation by efficiently managing condensate, and the in-built WiFi enables seamless remote control and real-time monitoring.
Features:
Acer Services pricing represents “Pricing From” as a standard installation. Non-standard installation pricing will be based on your individual installation requirements and will need to be quoted separately by our Sales Team. Pricing does not represent new builds or replacement installations. Pricing is within 20km from our Mansfield QLD office. All other areas to be quoted.
Wall Split Air Conditioner Installation
Ducted Air Conditioner Installation
| System | TDS-TSO100HVWDG | TDS-TSO125HVSWDG | TDS-TSO140HVSWDG | TDS-TSO160HVSWDG | |
|---|---|---|---|---|---|
| Indoor Unit | TDS100HVWDG | TDS125HVSWDG | TDS140HVSWDG | TDS160HVSWDG | |
| Outdoor Unit | TSO100HVWDG | TSO125HVWDG | TSO140HVWDG | TSO160HVWDG | |
| Power Supply | 1 Phase, 220-240V, 50Hz | ||||
| Cooling Capacity Rated/Min-Max | kW | 10.0 (3.0-11.7) | 12.5 (3.6-14.0) | 14.0 (4.2-16.0) | 16.0 (4.8-18.0) |
| Heating Capacity Rated/Min-Max | 12.0 (3.6-13.5) | 14.0 (4.2-15.0) | 16.0 (4.8-17.0) | 18.0 (5.4-20.0) | |
| AEER/ACOP | 3.7 / 4.0 | 3.4 / 3.8 | 3.5 / 3.8 | 3.3 / 3.8 | |
| Cooling Star Rating (Hot/Avg/Cold) | 4 / 3.5 / 4 | 3.5 / 3 / 3 | 3.5 / 3 / 3.5 | ||
| Heating Star Rating (Hot/Avg/Cold) | 3 / 2.5 / 2 | 3.5 / 2.5 / 2 | 3 / 2.5 / 2 | 3.5 / 2.5 / 2 | |
| Cooling Current Input Range | A | 2.3 - 20.0 | 3.2 - 25.0 | 3.7 - 28.0 | 4.1 - 32.0 |
| Heating Current Input Range | 2.7 - 20.0 | 3.7 - 25.0 | 4.1 - 28.0 | 4.6 - 32.0 | |
| Standby Power Consumption | W | 4.0 | 5.1 | 12.5 | 9.8 |
| Indoor Airflow Volume P-Hi/H/M/L | m3/h | 2100 / 1900 / 1700 / 1400 | 2800 / 2500 / 2200 / 1800 | 3200 / 2800 / 2400 / 2000 | 3500 / 3100 / 2700 / 2300 |
| Indoor Sound Pressure Level H/M/L | dBA | 42 / 41 / 40 | 42 / 40 / 39 | 45 / 43 / 41 | 50 / 48 / 46 |
| Outdoor Sound Pressure Level (H) | 58 | 59 | 60 | ||
| Outdoor Fan Quantity | 1 | 2 | |||
| Operation Range Cool/Heat | C | -15 to 52 / -15 to 24 | |||
| Refrigerant Type/Charge | kg | R32 / 2.2 | R32 / 2.4 | R32 / 2.8 | R32 / 3.3 |
| Connection Pipe Max Height | m | 30 | |||
| Connection Pipe Max Length | 75 | ||||
| Pipe Sizes (Liquid/Gas) | mm | 9.52 / 15.88 | |||
| Indoor Unit Dimensions (HxWxD) | 260 x 1340 x 655 | 360 x 1350 x 720 | |||
| Outdoor Unit Dimensions (HxWxD) | 820 x 940 x 370 | 1260 x 900 x 340 | |||
| Indoor Net/Gross Weight | kg | 43 / 49 | 57 / 67 | 60 / 70 | |
| Outdoor Net/Gross Weight | 67 / 79 | 90 / 99 | 97 / 106 | ||
| SKU | TDS-TSO160HVSWDG-INS |
| Brand | TECO |
| Shipping Weight | 157.0000kg |
| Shipping Width | 0.432m |
| Shipping Height | 1.260m |
| Shipping Length | 1.350m |
| Shipping Cubic | 0.735480000m3 |
| Heating / Cooling | Reverse Cycle |
| Power Supply | Single Phase |
| WiFi | Included |
| Unit Size | 11 - 16.9kW |
| Series | Mid Static |
| Type | Ducted |
| Outdoor Weight | 97 |
| Refrigerant | R32 |
| Indoor Size | 360x1350x720 |
| Outdoor Size | 1260x900xx340 |
| Control System | Standard |
| Heating Capacity (kW) | 18 |
| Indoor Weight | 60 |
| Brand | Teco |
| Zones | 2 |
| Outlets | 8 |
| Cooling Capacity (kW) | 16 |
TECO TDS-TSO160HVSWDG 16.0kW Single Phase Ducted Air Conditioner - Includes Outdoor Unit and Wired Wall Controller
The TECO 16.0kW Ducted System offers high-capacity climate control, making it the ideal solution for large homes and light commercial spaces that demand powerful and efficient airflow. Its innovative splittable indoor unit design ensures easier installation and maintenance, even in complex ceiling configurations, providing unmatched flexibility. With a maximum ESP setting of 200Pa , the system delivers strong and consistent airflow across multiple zones, ensuring optimal comfort throughout your space. The outdoor Condenser coil is protected with a Blackfin coating that offers superior corrosion resistance, while the indoor Evaporator coil benefits from a Goldfin coating that enhances durability by preventing coil degradation over time. An integrated drain pump simplifies installation by efficiently managing condensate, and the in-built WiFi enables seamless remote control and real-time monitoring.
Features:
| System | TDS-TSO100HVWDG | TDS-TSO125HVSWDG | TDS-TSO140HVSWDG | TDS-TSO160HVSWDG | |
|---|---|---|---|---|---|
| Indoor Unit | TDS100HVWDG | TDS125HVSWDG | TDS140HVSWDG | TDS160HVSWDG | |
| Outdoor Unit | TSO100HVWDG | TSO125HVWDG | TSO140HVWDG | TSO160HVWDG | |
| Power Supply | 1 Phase, 220-240V, 50Hz | ||||
| Cooling Capacity Rated/Min-Max | kW | 10.0 (3.0-11.7) | 12.5 (3.6-14.0) | 14.0 (4.2-16.0) | 16.0 (4.8-18.0) |
| Heating Capacity Rated/Min-Max | 12.0 (3.6-13.5) | 14.0 (4.2-15.0) | 16.0 (4.8-17.0) | 18.0 (5.4-20.0) | |
| AEER/ACOP | 3.7 / 4.0 | 3.4 / 3.8 | 3.5 / 3.8 | 3.3 / 3.8 | |
| Cooling Star Rating (Hot/Avg/Cold) | 4 / 3.5 / 4 | 3.5 / 3 / 3 | 3.5 / 3 / 3.5 | ||
| Heating Star Rating (Hot/Avg/Cold) | 3 / 2.5 / 2 | 3.5 / 2.5 / 2 | 3 / 2.5 / 2 | 3.5 / 2.5 / 2 | |
| Cooling Current Input Range | A | 2.3 - 20.0 | 3.2 - 25.0 | 3.7 - 28.0 | 4.1 - 32.0 |
| Heating Current Input Range | 2.7 - 20.0 | 3.7 - 25.0 | 4.1 - 28.0 | 4.6 - 32.0 | |
| Standby Power Consumption | W | 4.0 | 5.1 | 12.5 | 9.8 |
| Indoor Airflow Volume P-Hi/H/M/L | m3/h | 2100 / 1900 / 1700 / 1400 | 2800 / 2500 / 2200 / 1800 | 3200 / 2800 / 2400 / 2000 | 3500 / 3100 / 2700 / 2300 |
| Indoor Sound Pressure Level H/M/L | dBA | 42 / 41 / 40 | 42 / 40 / 39 | 45 / 43 / 41 | 50 / 48 / 46 |
| Outdoor Sound Pressure Level (H) | 58 | 59 | 60 | ||
| Outdoor Fan Quantity | 1 | 2 | |||
| Operation Range Cool/Heat | C | -15 to 52 / -15 to 24 | |||
| Refrigerant Type/Charge | kg | R32 / 2.2 | R32 / 2.4 | R32 / 2.8 | R32 / 3.3 |
| Connection Pipe Max Height | m | 30 | |||
| Connection Pipe Max Length | 75 | ||||
| Pipe Sizes (Liquid/Gas) | mm | 9.52 / 15.88 | |||
| Indoor Unit Dimensions (HxWxD) | 260 x 1340 x 655 | 360 x 1350 x 720 | |||
| Outdoor Unit Dimensions (HxWxD) | 820 x 940 x 370 | 1260 x 900 x 340 | |||
| Indoor Net/Gross Weight | kg | 43 / 49 | 57 / 67 | 60 / 70 | |
| Outdoor Net/Gross Weight | 67 / 79 | 90 / 99 | 97 / 106 | ||
| SKU | TDS-TSO160HVSWDG-INS |
| Brand | TECO |
| Shipping Weight | 157.0000kg |
| Shipping Width | 0.432m |
| Shipping Height | 1.260m |
| Shipping Length | 1.350m |
| Shipping Cubic | 0.735480000m3 |
